PWM Motor Speed Controller 6V 9V 12V 18V 24V 36V 48V 60V DC 6V - 30V Pulse Width Modulation Regulator 8A 180W Stepless Variable Speed/Forward and Reverse Switch DC Speed Regulation (PWM 8A)
About this product
*★ Maximum 30V * 8A = 180W Input voltage: DC6V - 30V Control power: 0.01W - 180W Applicable current: rated current 5A, maximum passing current 8A, PWM pulse width Speed range: 0% - 100% PWM frequency: 16khZ
*★ CCM5D 6V-30V 8A 16kHz speed controller LED digital display Applicable to DC6V - 30V DC motor, fan, fish tank oxygen pump and other products.- 180W Applicable current: rated current 5A, maximum passing current 8A, PWM pulse width Speed range: 0% - 100% PWM frequency: 16khZ
*★ The DC motor speed controller allows the use of pulse width modulation (PWM) DC voltage to control the speed of the DC motor, and the duty cycle can be fully adjusted from 0% to 100%.
*★ Easily deliver 8A continuous current to your DC motor or other DC load. Input power supply voltage: 6V-30VDC motor speed controller,
*★ Let you be satisfied with our services, not just our products. If you are not satisfied with our products for any reason, simply contact the support department for a replacement or refund. We will answer any questions you may have within 24 hours.
Description
Name: DC 8A PWM Motor Speed Controller
Work Voltage: DC 6V - 30V
Rated Current: 6A
Max Current: 8A
Speed Range: 0% - 100%
PWM Frequency: 16kHz

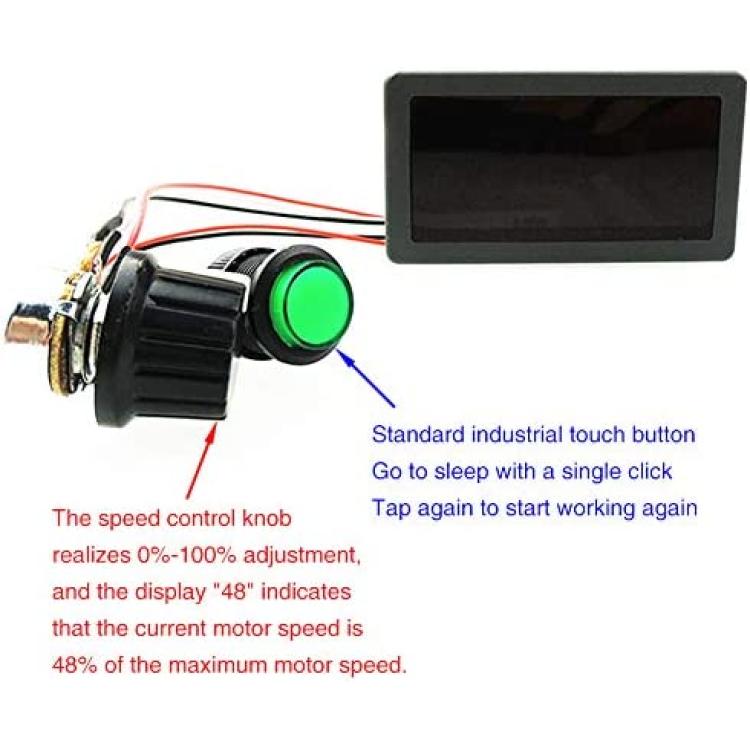

Knob Potentiometer: Resistance B100K, Length 20cm, Trepanning 8mm

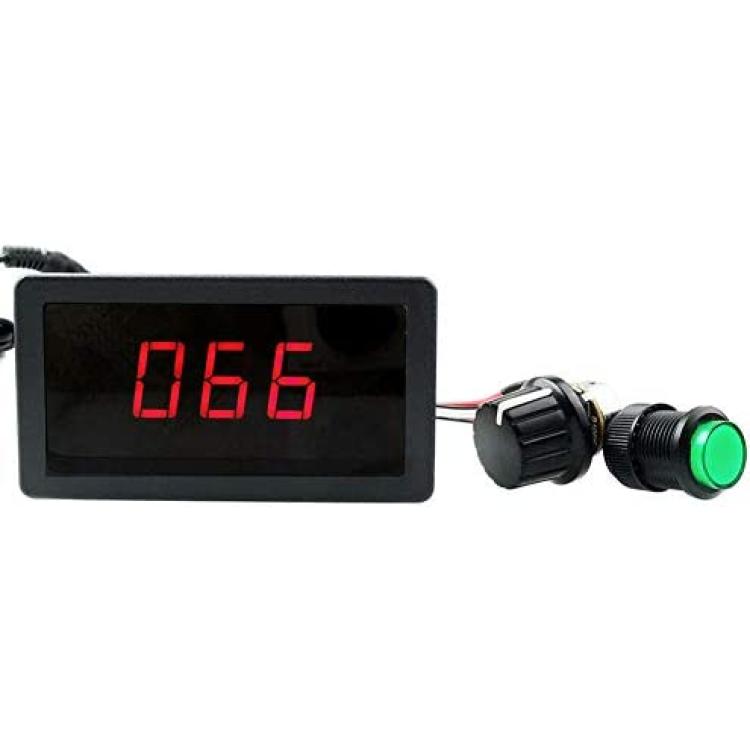

LED Display: 3-digit, "000" - "100", (For example displayed "033", it means the PWM output duty cycle is 33%)
Button Switch: Turn On or Off the controller board
Module Size: 79 *42 * 24mm
Note:
1. Do not reverse positive and negative to power controller, it will damage the module.
2. Before you attempting to wire the controller, make sure power is off.
Package Include:

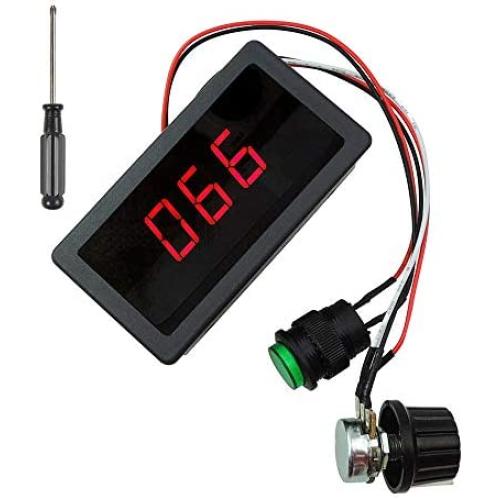

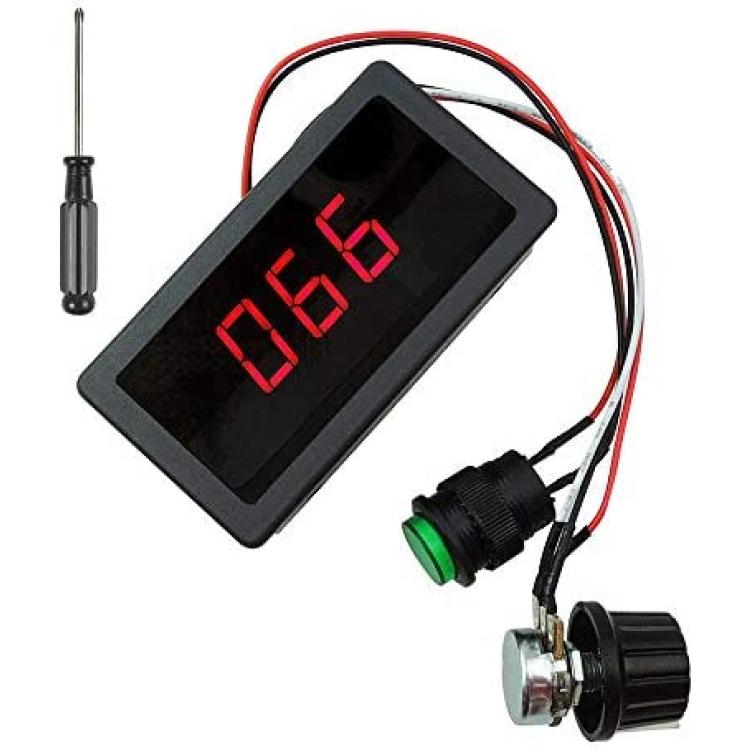

1pcs DC Motor Speed Controller with LED Display
1pcs Cross screwdriver
