Motor Speed Controller DC 9V 12V 18V 24V 36V 50V 60V 10A Pulse Width Modulation Regulator 600W Stepless Variable Speed Forward and Reverse Switch Pulse
About this product
*★Product parameters: DC input voltage range 9V 12V 24V 48V 60V, output current 0-10A, power 600W.
*★Widely used: DC motor driver can be used for DC motor speed regulation and dimming.
*★Speed control: Our motor control board can adjust the motor speed through potentiometers, and support clockwise/counterclockwise rotation adjustment.
*★Note: Do not switch another direction when running at high speed. It can not be used on electric vehicles, nor on Unnet speed reducer motors.
*★PWM: Pulse width modulation (PWM) with wide/variable speed has the advantage of making full use of the energy of the power supply, and the circuit is efficient.
Description
Specification:
Product Name: PWM DC Motor Speed Controller
Work Voltage: DC 9-60V
Output Current: 0-10A
Continuous Power: 600W (max)
Control Frequency: 25KHZ
Speed Range: 0%-100%
Output Voltage: Load Linear
Speed Mode: Potentiometer
Speed Type: Adjusting current
Suitable Motor: DC brush

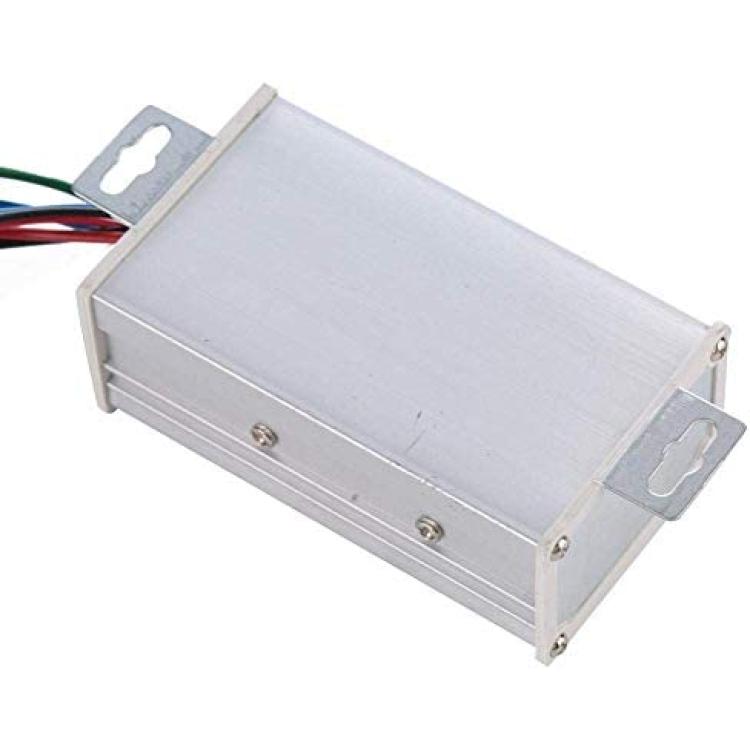

Fix Mode: Mounting Lug
Mounting Lug Hole Spacing: 104mm

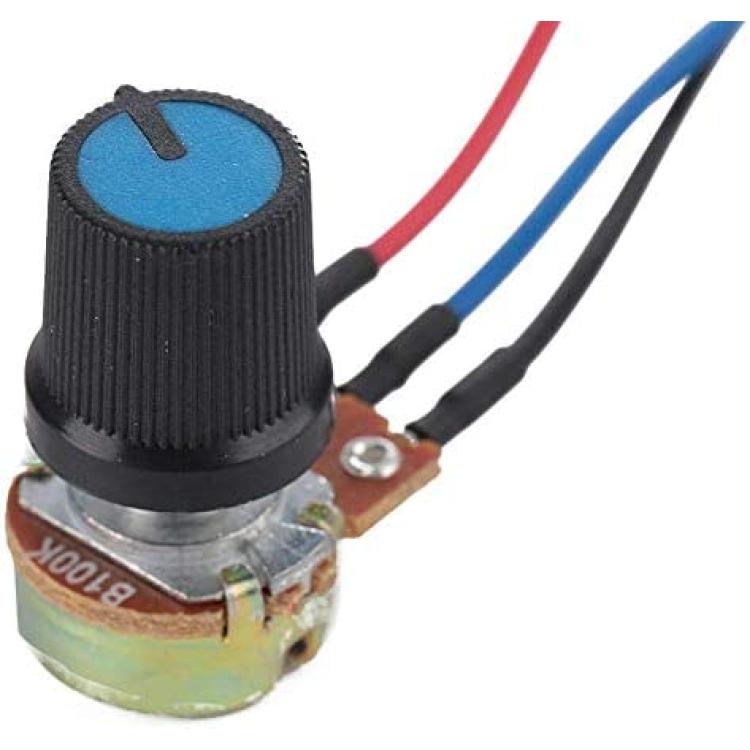

Potentionmeter Hole Diameter: 7mm
Forward/Reverse Button Size: 31x26mm, hole 28x22mm
Module Size: 92x52x36mm

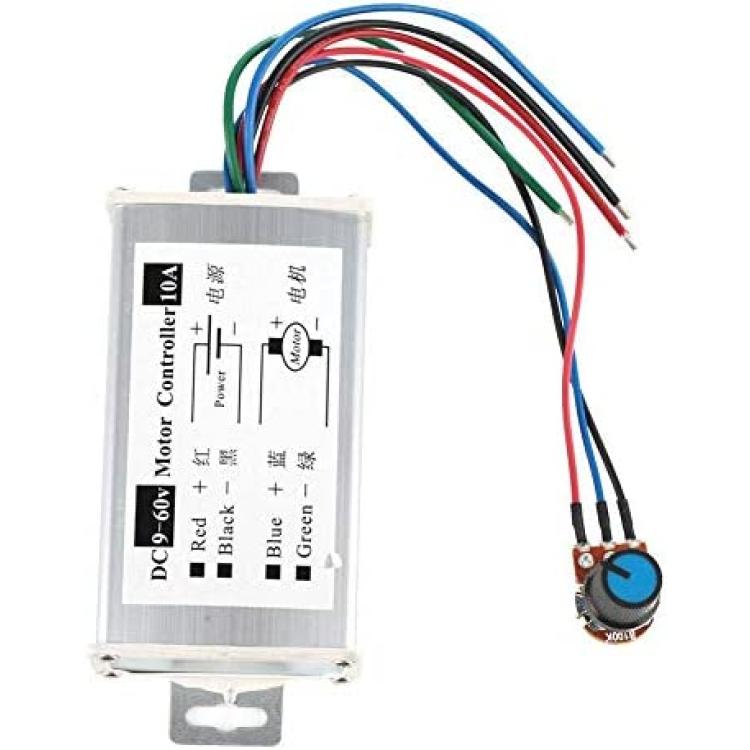

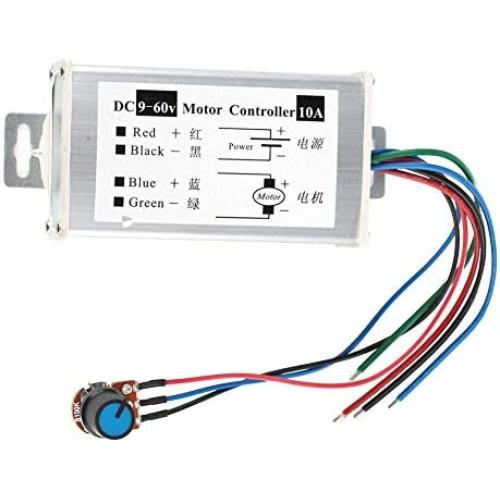

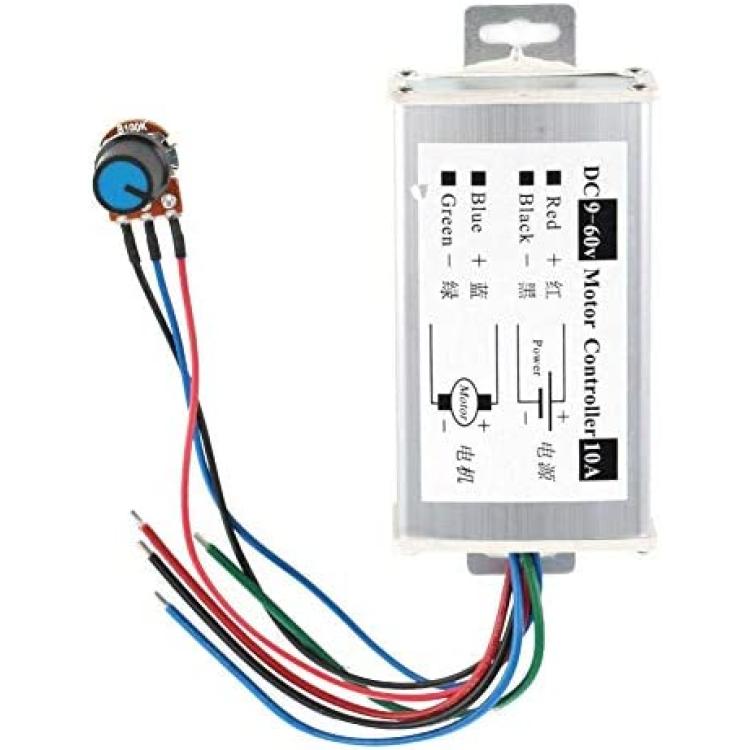

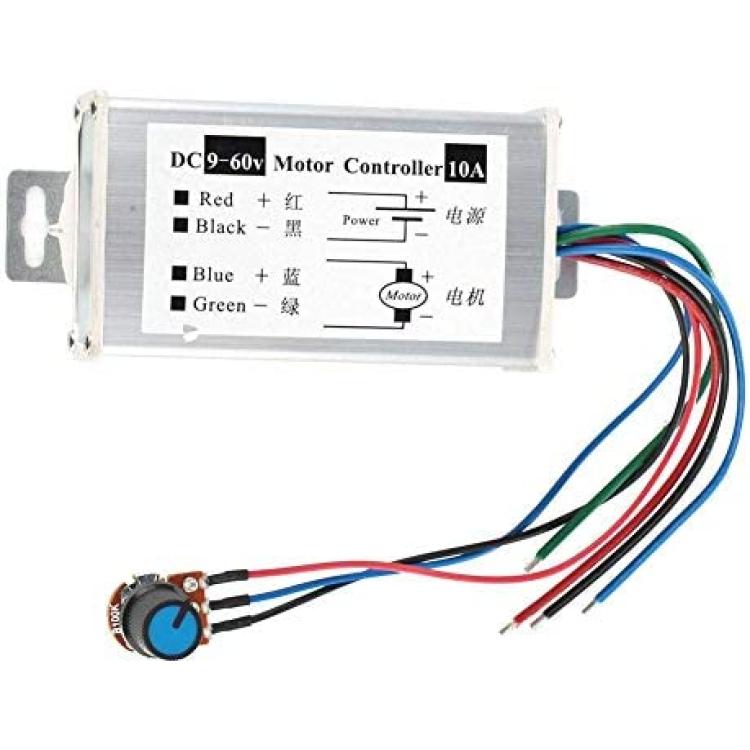

Connection:
Red Line: Positive power supply +
Black Line: Negative power supply -
Blue Line: Positive motor +
Yellow Line: Negative motor -
Package:
1pcs 10A 9-60V DC Motor Speed ControllerÂ
