2pcs DC Motor Speed Controller, Brush Motor Driver Controls Module DC 9V-60V 12V 24V 36V 48V 60V Motor Pulse Width Modulator Regulator 20A 1200W PWM Monitor Dimmer Governor with Switch & Knob
About this product
*【DC Motor Speed Controller Parameters】 Motor speed controller input voltage range: 9-60V, output current range: 0-20A, continuous power: 1200W
*【PWM Speed Regulator】The advantage of using a pulse width modulation (PWM) method for dimming / speed regulation is that the energy of the power supply can be fully utilized and the circuit is highly efficient
*【Motor Speed Control】The motor control board can regulate motor speed by potentiometer; whats more, it support clockwise/anticlock-wise rotation adjustment
*【Easy Wiring】 Thick red wire for the positive of the power supply, and thick balck for the negative; thick blue wire for the motor positive, and the thick green for the motor negative
*【PWM Controller Application】 The dc motor driver can be used to brush motor speed regulation, light dimming regulation in the dc circuit.Note: The motor cannot be used in electric vehicles
Description

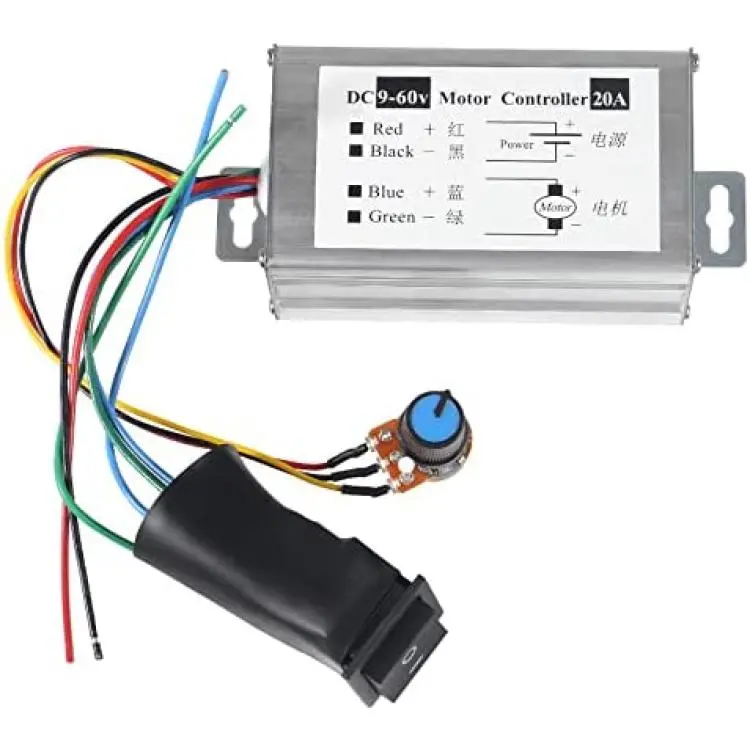

PWM Motor Speed Controller DC 9-60V 20A

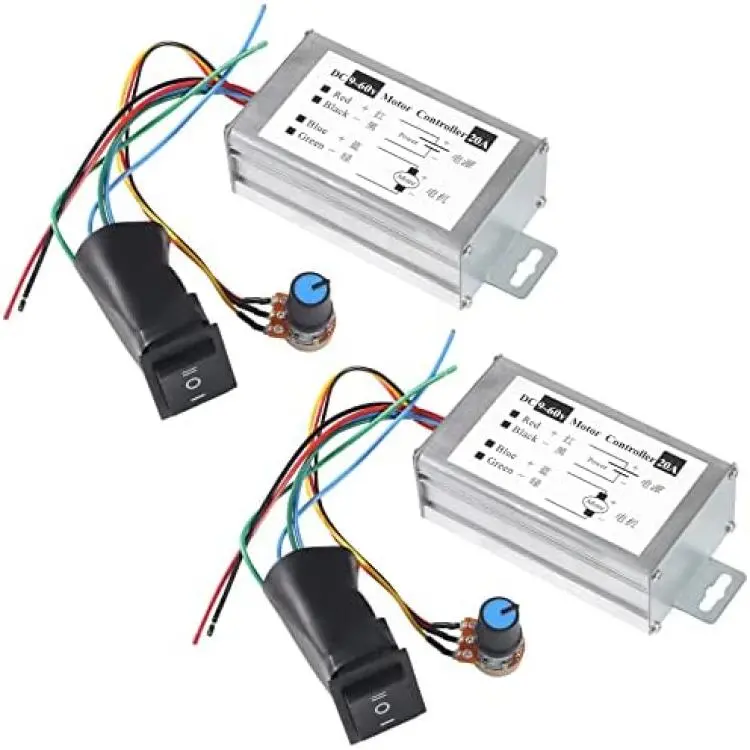

Package Includes: 2* DC motor controller
Note: The motor cannot be used in electric vehicles.
Input voltage range: DC 9-60V output voltage
Linear load output current: 0-20A
Continuous power: 1200W
Speed control mode: potentiometer (linear)
Speed range: 0-100Percent
Input current: requires more current than the motor
Continuous current: within 18A
The input voltage should be equal to the rated voltage of the motor.
Control frequency: 25KHz clockwise / counterclockwise rotation; support Fit motor
DC brush size: 92x52x36mm
Potentiometer mounting hole diameter: 7mm

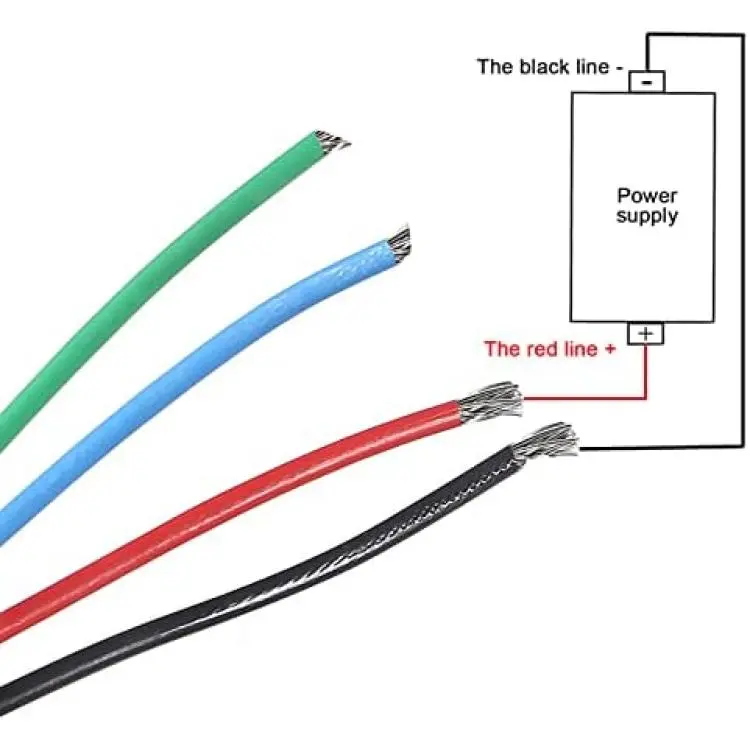

Wiring connection: thick red line: power +, thick black line: power -, blue and green motor is not positive or negative
