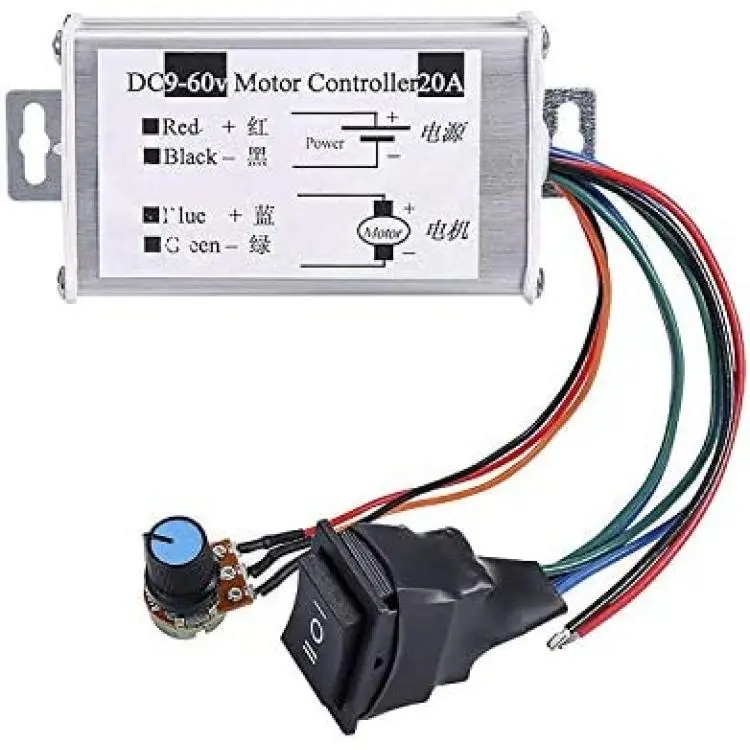

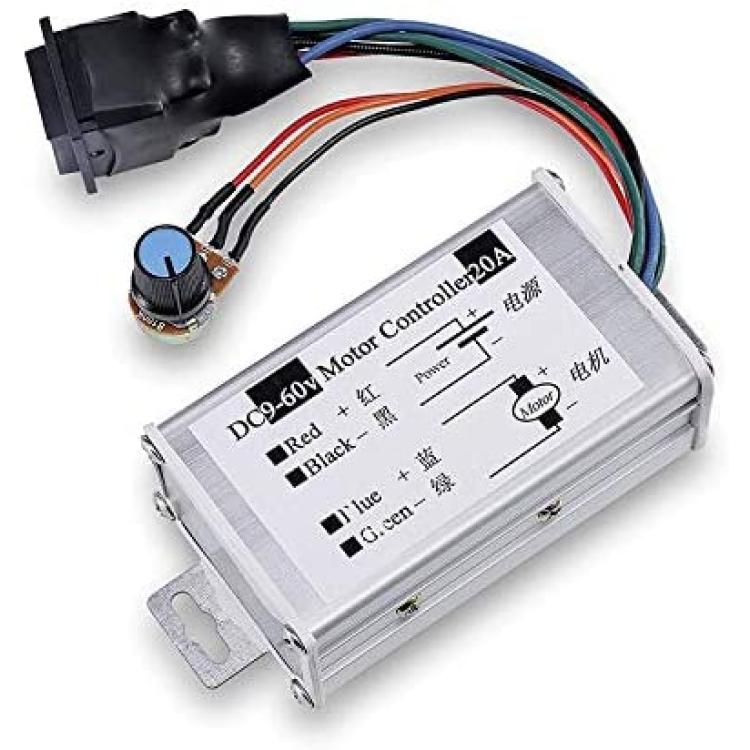

ICQUANZX DC Motor Speed Controller,Brush Motor Driver Controls Module DC 9V-60V 12V 24V 36V 48V 60V Motor Pulse Width Modulator Regulator 20A 1200W PWM Monitor Dimmer Governor with Switch & Knob
About this product
*Parameters: motor speed controller input voltage range is 9-60V, output current range is 0-20A, continuous power is 1200W.
*Application: the dc motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit.Note: The motor cannot be used in electric vehicles.
*Speed Control: our motor control board can regulate motor speed by potentiometer; whats more, it support clockwise/anticlock-wise rotation adjustment.
*Easy Wiring: thick red wire for the positive of the power supply, and thick balck for the negative; thick blue wire for the motor positive, and the thick green for the motor negative.
*PWM: the advantage of using a pulse width modulation (PWM) method for dimming / speed regulation is that the energy of the power supply can be fully utilized and the circuit is highly efficient.
Description
Product parameters:
Input voltage: DC9-60V (universal)
Output voltage: linear under load
Output current: 0-20A (within 18A for long time use, pay attention to keep the module cool and cool)
Ultimate power: 1200W
Speed ??type: PWM adjustment
Speed ??control mode: potentiometer (linear)
Speed ??range: 0—100% Control frequency: 25KHZ
Module size: 92MM*52MM*36MM
Product net weight: 130 grams
According to the installation size: the back fixing hole center distance 104MM
Potentiometer according to the opening: 7MM

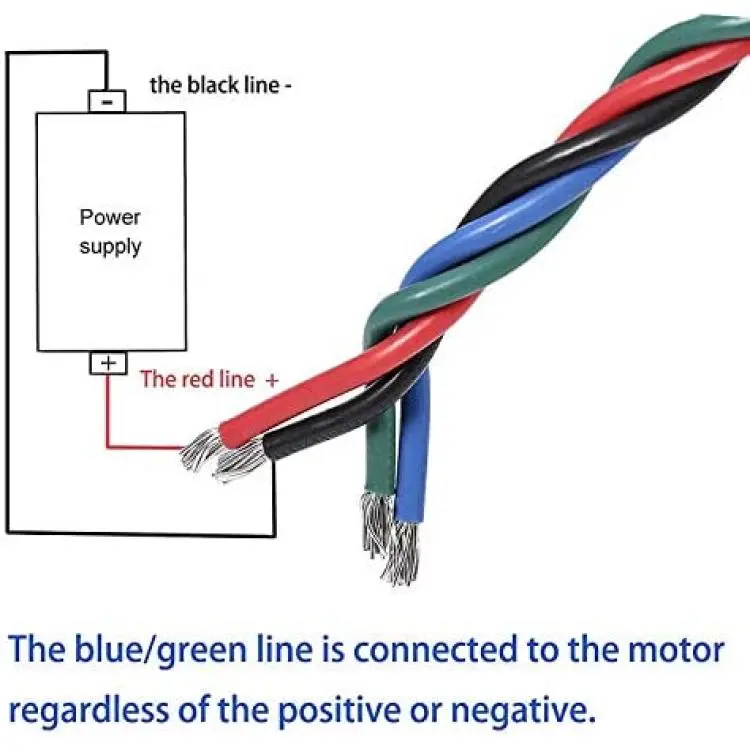

Connection method:
Red line connection: positive power supply +
Black line connection: negative power supply -
Blue line connection: motor positive +
Green line connection: negative -
Please note:
1. This governor is used for DC brushed motors.
2.not suitable for DC brushless motor speed; can not be used as a regulator or regulator!
3. The motor can be divided into positive and negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence.
Package includes:
1 × DC governor 20A
