BOJACK Motor Speed Controller 9V-60V 12V 24V 36V 48V 60V Brush Motor Driver Controls Module Motor Pulse Width Modulator Regulator 20A 1200W PWM Monitor Dimmer Governor with Switch Knob
About this product
*Motor speed controller input voltage range is 9-60V, output current range is 0-20A, continuous power is 1200W.
*The dc motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit. Note: The motor cannot be used in electric vehicles.

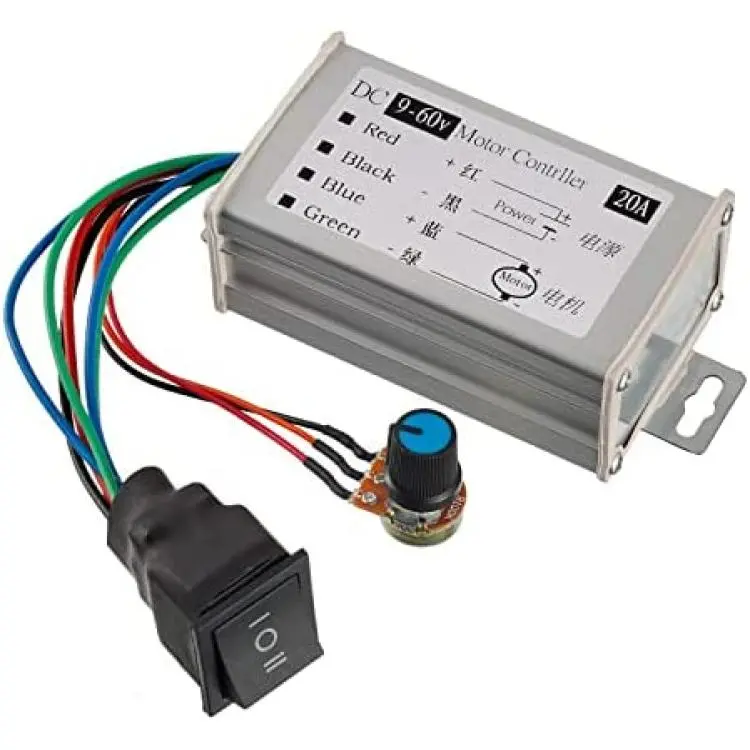

*Motor control board can regulate motor speed by potentiometer; whats more, it support clockwise/anticlock-wise rotation adjustment.

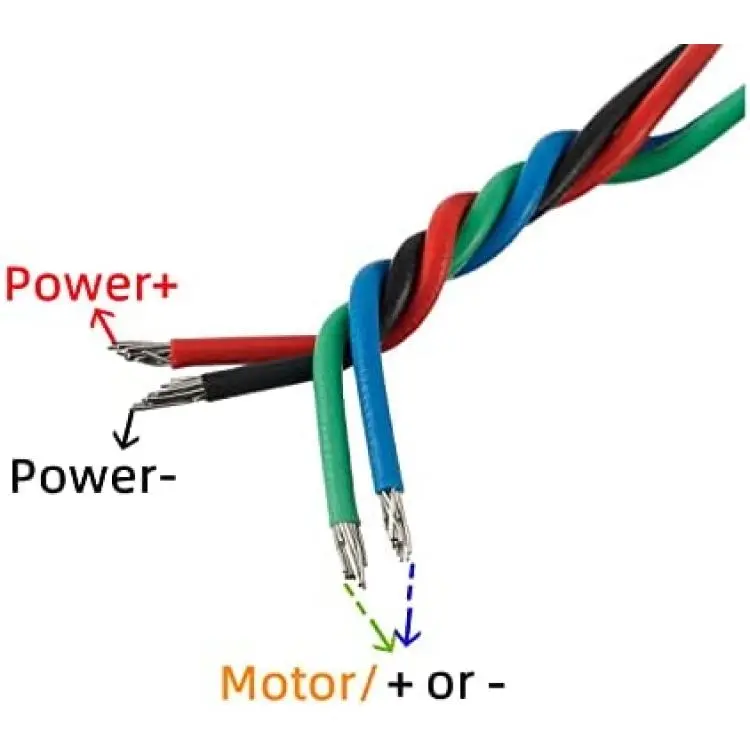

*Thick red wire for the positive of the power supply, and thick balck for the negative; thick blue wire for the motor positive, and the thick green for the motor negative.
*The advantage of using a pulse width modulation (PWM) method for dimming / speed regulation is that the energy of the power supply can be fully utilized and the circuit is highly efficient.
Description
BOJACK Specifiction for Motor Speed Controller
Control frequency: 25KHz clockwise / counterclockwise rotation; support Fit motor
DC brush size: 92x52x36mm
Product net weight: 155 grams

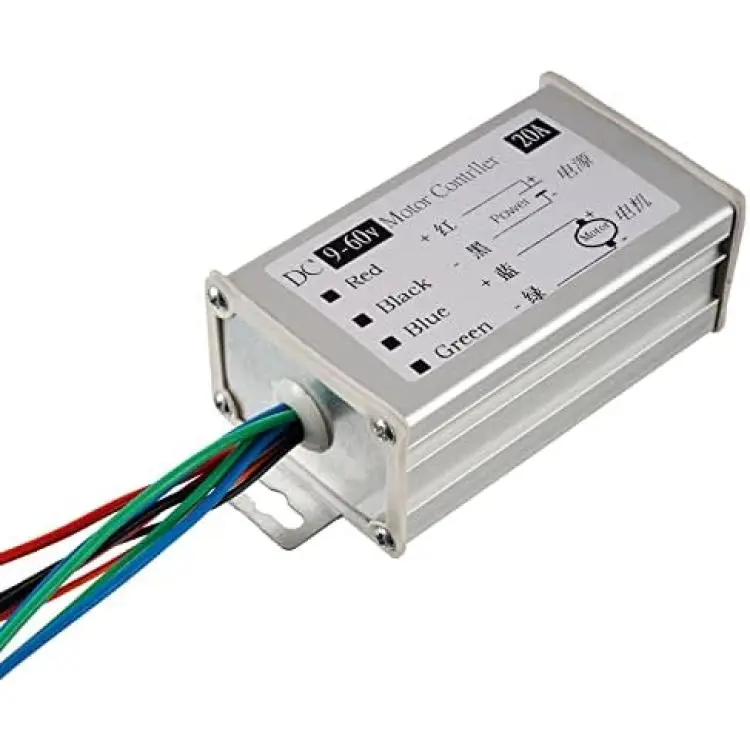

Wiring connection: thick red line: power +, thick black line: power -, blue and green motor is not positive or negative
Potentiometer mounting hole diameter: 7mm
Input voltage range: DC 9-60V output voltage
Linear load output current: 0-20A
Continuous power: 1200W
Speed control mode: potentiometer (linear)
Speed range: 0-100%
Continuous current: within 18A
The input voltage should be equal to the rated voltage of the motor
Includes: 1x DC motor controller
Note: The motor cannot be used in electric vehicles.
Frequency Asked Questions
What is motormaker.net?
MotorMaker.net is an online retailer and bulk order e-shop for electric motor and controller products, range from standard products and customized products. Main production bases are located in Shenzhen, Dongguan, Wuhan, Shanghai and Chengdu. A professional team supports your order and customization design.
What service can be supported from motormaker.net?
MotorMaker.net offer product order and product customization service. All orders will be supported after-sales service, including quanlity gurantee, and technical support.
How to order products from motormaker.net?
You can online order product from motormaker.net by adding product to cart and got to checkout page. Multiple currency options are supported. You can choose suitable currency to place order. Before checkout, you should register account to submit order information.
How to delivery your order from motormaker.net to you?
For order delivery, motormaker.net provides three shipping options, express, air-flight and sea freight. You can choose one option according to your order.
How to inquiry product bulk price?
For the interested product, you can submit bulk price inquiry by bulk order inquiry form.
