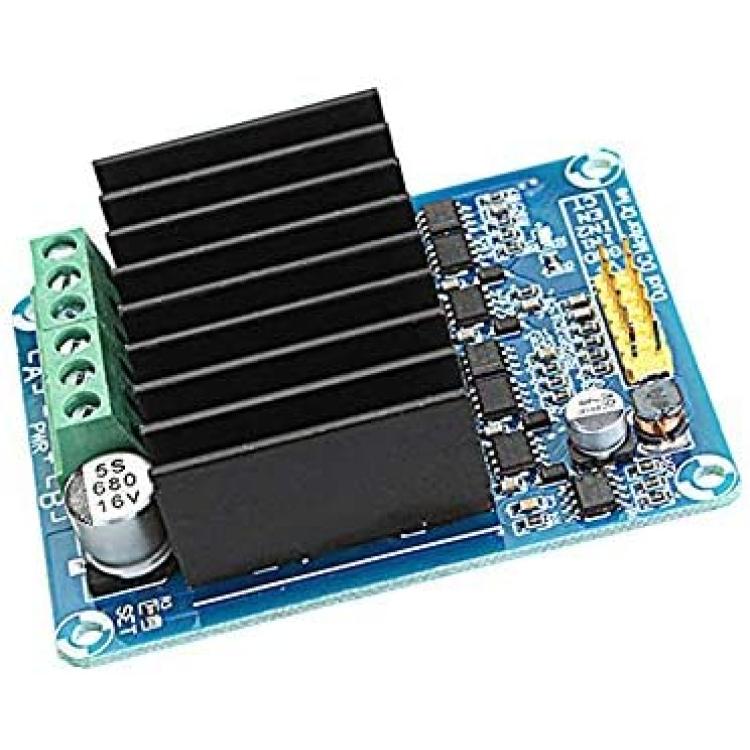

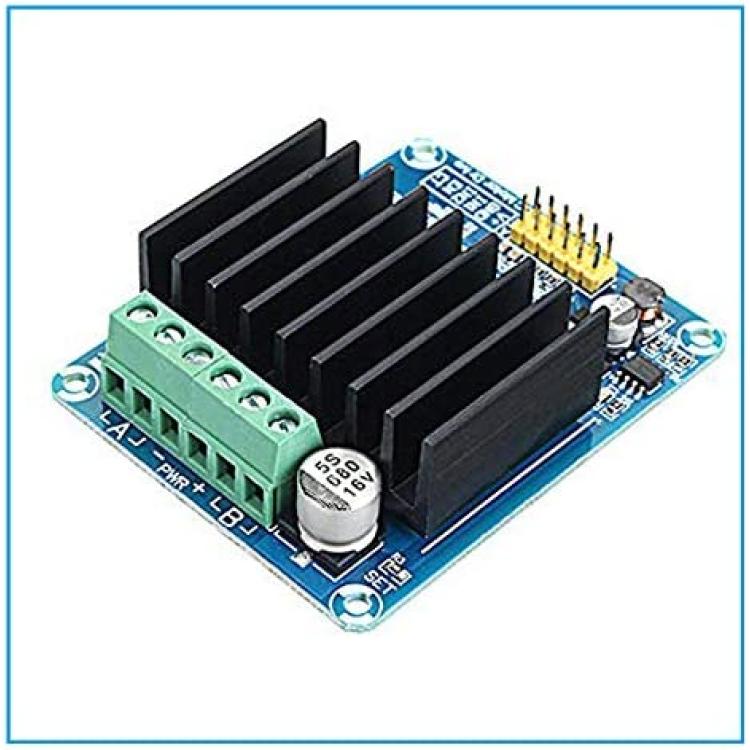

WSDMAVIS 1Pcs DC 5-12V 30A Dual Channel Motor Drive Controller Board H-Bridge PWM Speed Control Module for Arduino
About this product
*It is composed of a complete MOSFET with extremely low internal resistance. Built-in reliable drive mode minimizes the switching loss of MOSFET and improves power utilization. The MOSFET driver chip has its own hardware brake function and power feedback function.
*Can be used to control ordinary DC motor, smart car motor,coreless motor, semiconductor refrigeration module, solenoid valve, solenoid coil. etc.
*Reversible control and PWM speed control.PWM duty cycle: 0-98%.PWM Frequency: General Motors 16kHz;Coreless Motor 80kHz; TEC 500Hz-80kHz.
*High speed switch design.Ultra low internal resistance, low heat.Operating voltage: DC 5-12V; operating current: 0A-30A(Max)/each channel;Peak current: 70A (MAX).
*Item Size: 7.14 x 5.64cm / 2.80x 2.21inch,with a weight of 15 grams, your smart car can reduce its own weight and outperform its opponents.
Description
Specifications:
Standby Current: <30mA±5mA
Input Voltage Level: Low:0-0.5V; High: 2.5V-13V(typical drive level: 3.3V, 5V, 12V)
Current Sampling: CT Pin Output Voltage(V)=Current(A) x 0.155
Note:
Actual color may be slightly different from the image due to different monitor and light effect. Please allow minor deviation due to manual measurement.
We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.
Package Includes: 1pcs
