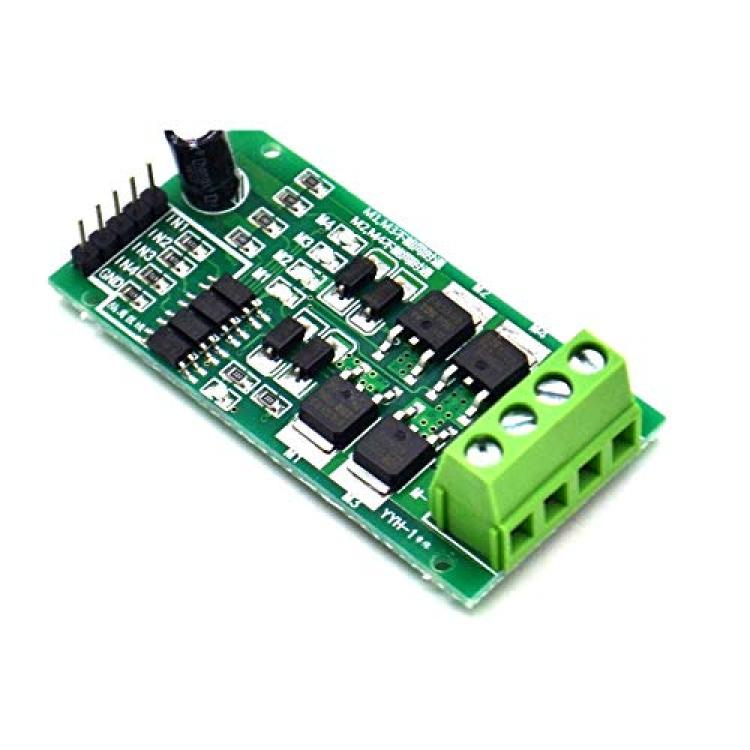

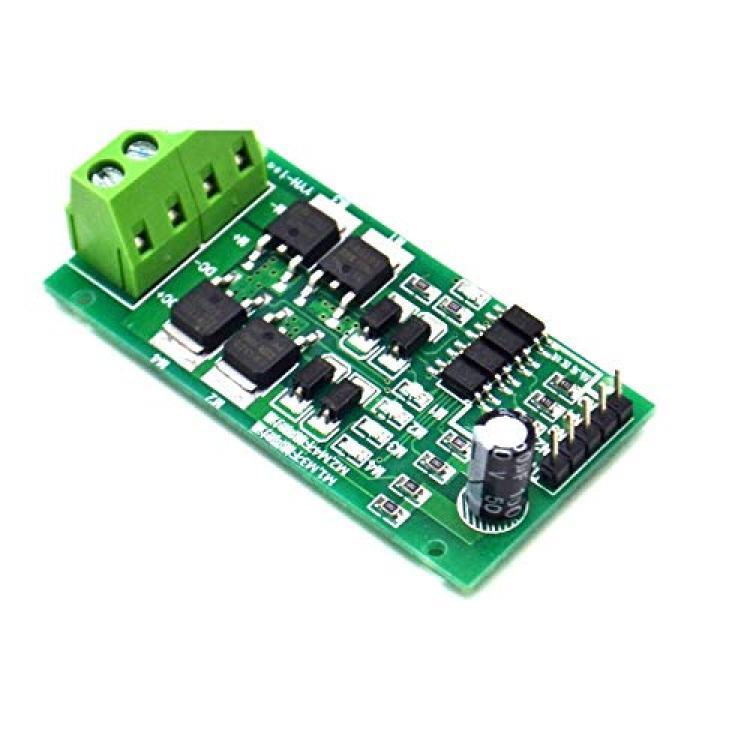

1pcs DC5V~27V 5A DC Motor Driver Board Module Reversible Speed Control"H" Bridge PWM Signal Controller
Availability: Pre-Order, Inquiry Price
About this product
*We are a professional supplier of integrated circuit products. Just search keywords in our store. I believe you can find the Product you need.
*Delivery time: 6-18 days by special line for USA , 8-30 days by regular post for Worldwide,If it is not received within the specified time, please contact us and we will refund you in full.
*If you need the product urgently, you can choose expedited service. We will use DHL to serve you. Delivery time: 3-7 days.
*any question,please feel free to contact me.I believe our sweet service will satisfy you.
*Please note that the products are only offered by the brand: DIYQuantum . Other sales people is not reliable.
Description
Features:
Input voltage is DC5V~27V, rated output current is 5A.
With 4pcs MOS transistors working indicators.
Signal type: use sinking current driving for signal control.
Support most of singlechip to drive directly.
Support PWM signal frequency within 20KHz.
Optocoupler isolation. Specifications:
Input Voltage: DC5V~27V
Output Current: 5A, can keep persistent current within 5A
Standby Current: 3mA
Item Size: 60 * 30 * 15mm
Item Weight: 14g
Notes:
1. Make sure the input voltage is DC5V~27V; it will burn the driver board if over voltage.
2. Please connect the driver power correctly, recommend you to use a 10A fuse for series connection.
3. Power on after connect the driver board and motor, otherwise it may burn the board for short circuit.
4. Keep the driver board dry, don't short out the electronic components. Package List:
1 * DC Motor Driver Module
