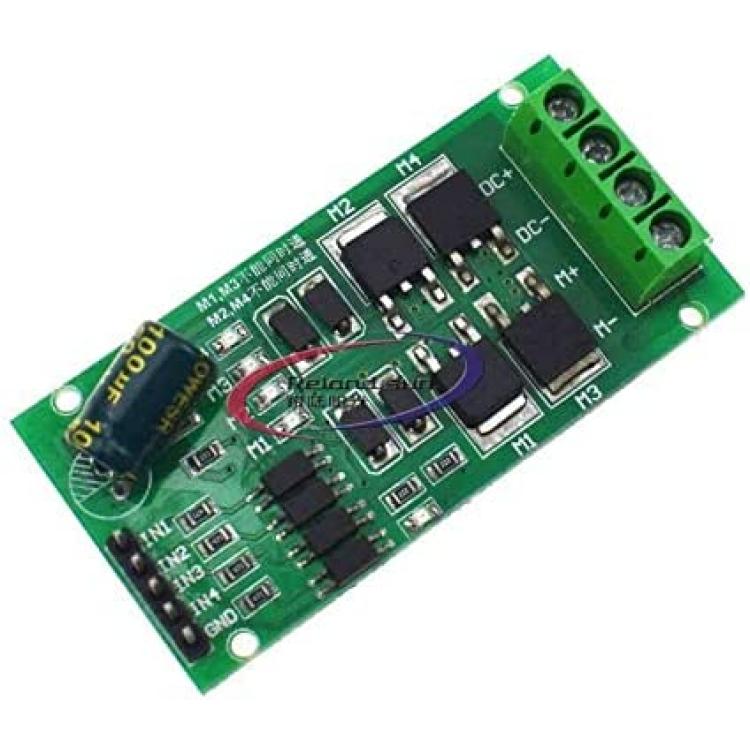

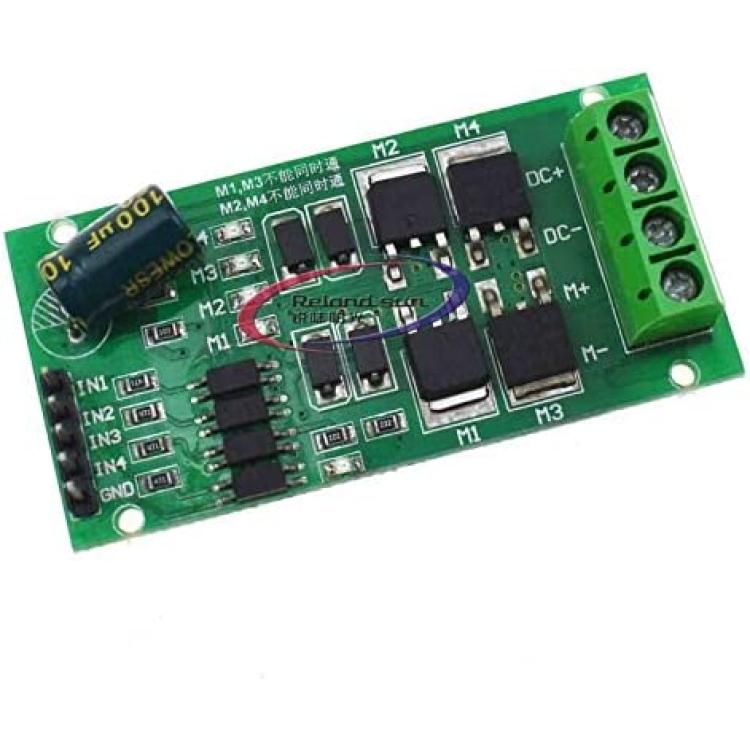

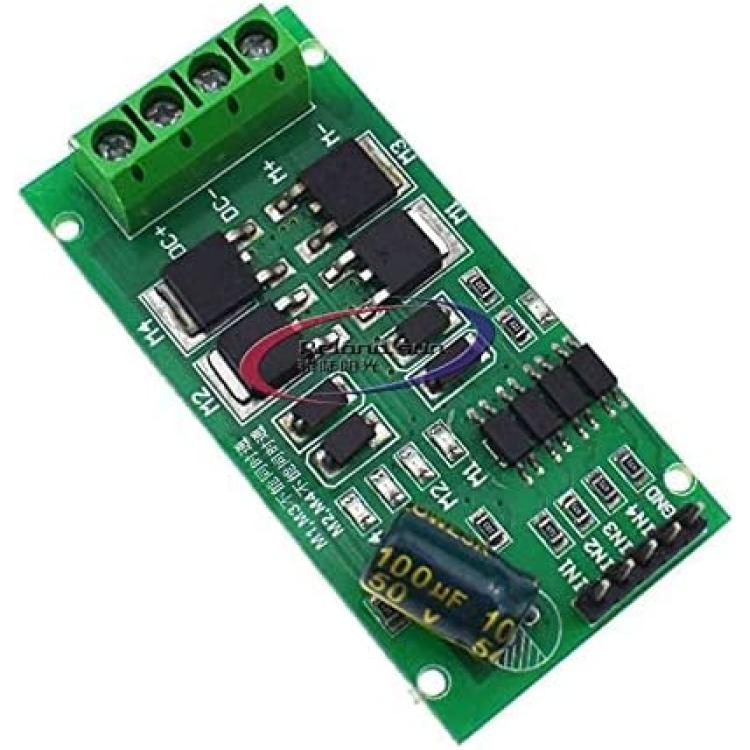

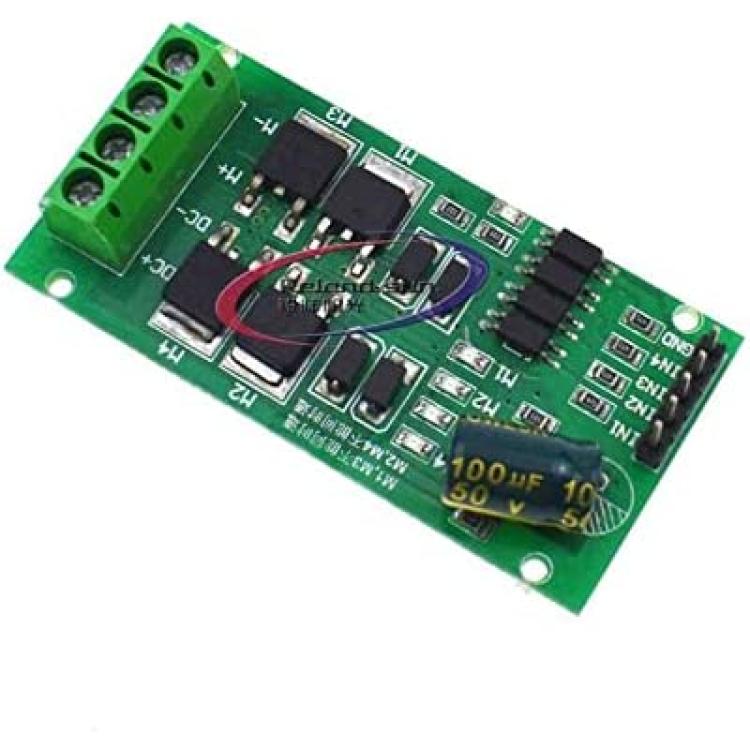

DC 5-27V 5A DC Stepper Motor Driver Module Board Reversible H Bridge PWM Signal Controller Motor Driver Board with Optocoupler
About this product
*Input Voltage: DC 5 -27V
*Output Current: 5A, can keep persistent current within 5A
*Standby Current: 3mA
*With 4pcs MOS transistors working indicators.
*Support PWM signal frequency within 20KHz.
Description
Feature:
The input voltage is DC5V~27V and the rated output current is 5A.
It has 4 MOS transistor working indicators.
Signal type: Signal control using sink current drive.
Direct support for most microcontroller drivers.
Supports PWM signal frequency within 20KHz.
Optocoupler isolation.
Â
Specification:
Input voltage: DC5V~27V
Output current: 5A, can keep the continuous current within 5A
Standby current: 3mA
Product size: 60 * 30 * 15mm
Weight: 14g
Â
Note:
1. Make sure the input voltage is DC5V~27V; if the voltage is too high, the driver board will be burnt.
2. Please connect the drive power correctly. It is recommended that you use a 10A fuse in series.
3. Connect the driver board and motor and then power on, otherwise the short circuit board may be burnt.
4. Keep the drive board dry and do not short-circuit the electronic components.
Â
Packing List:
1 *DC motor drive module
