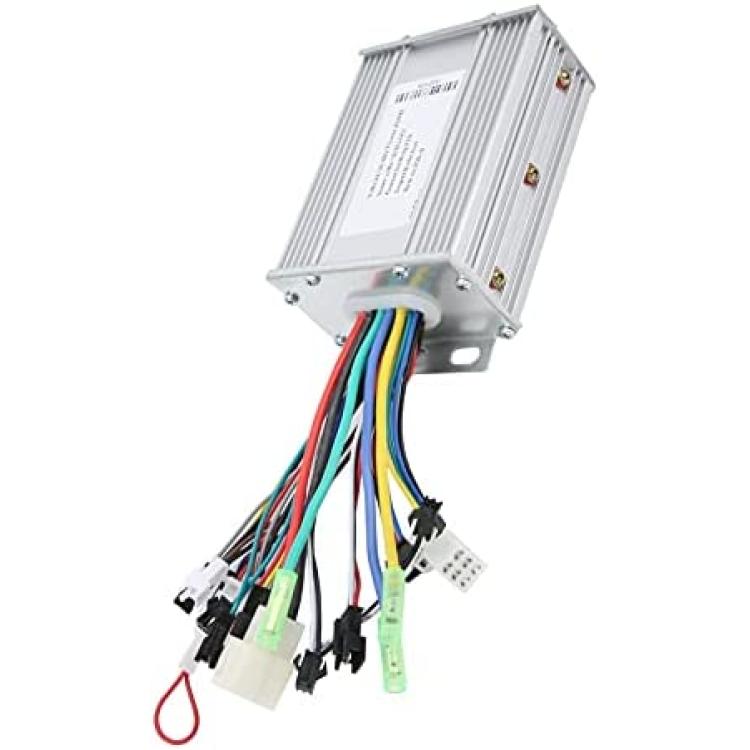

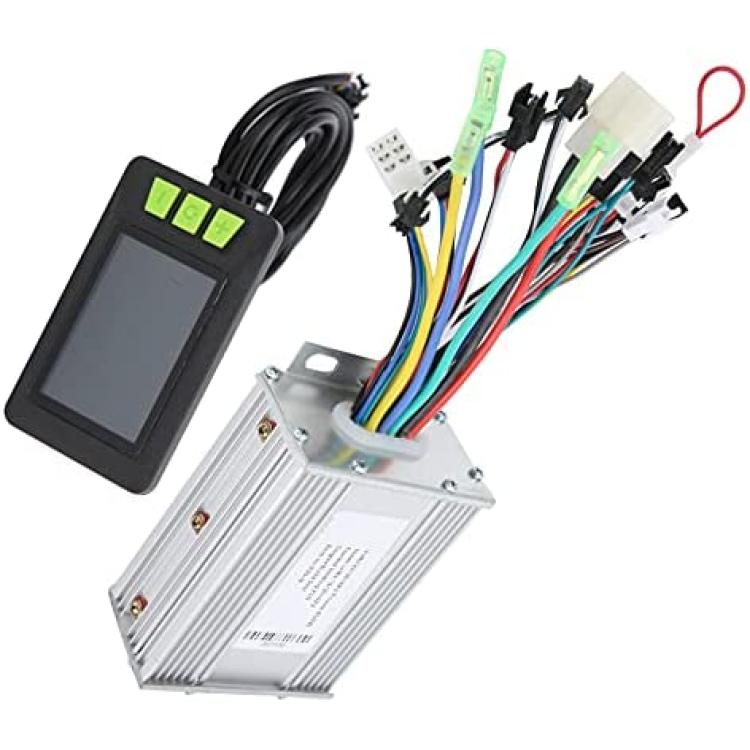

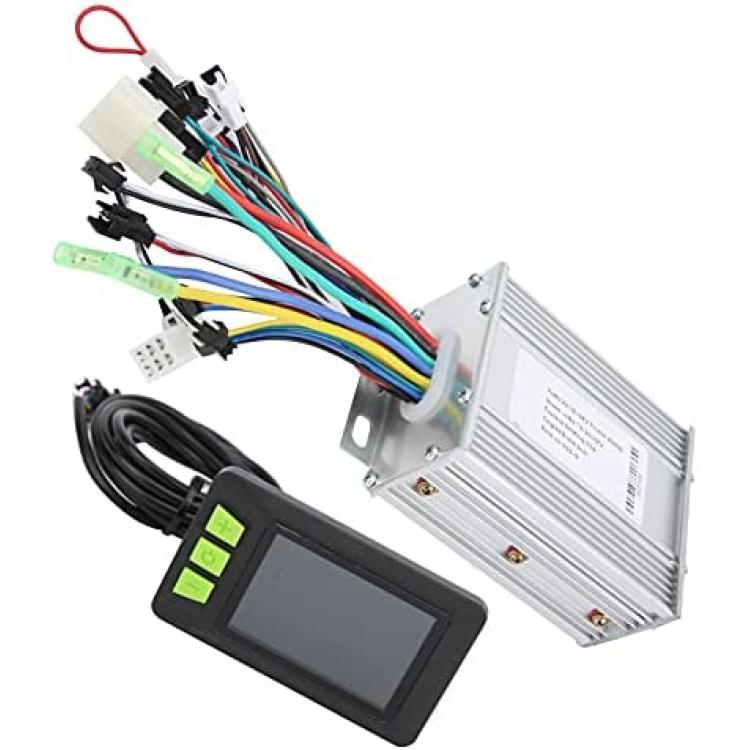

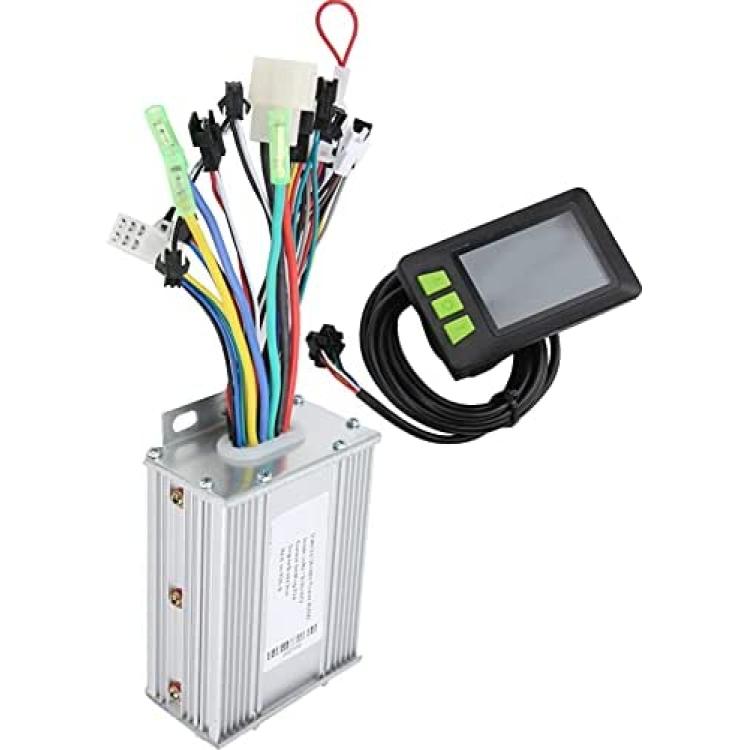

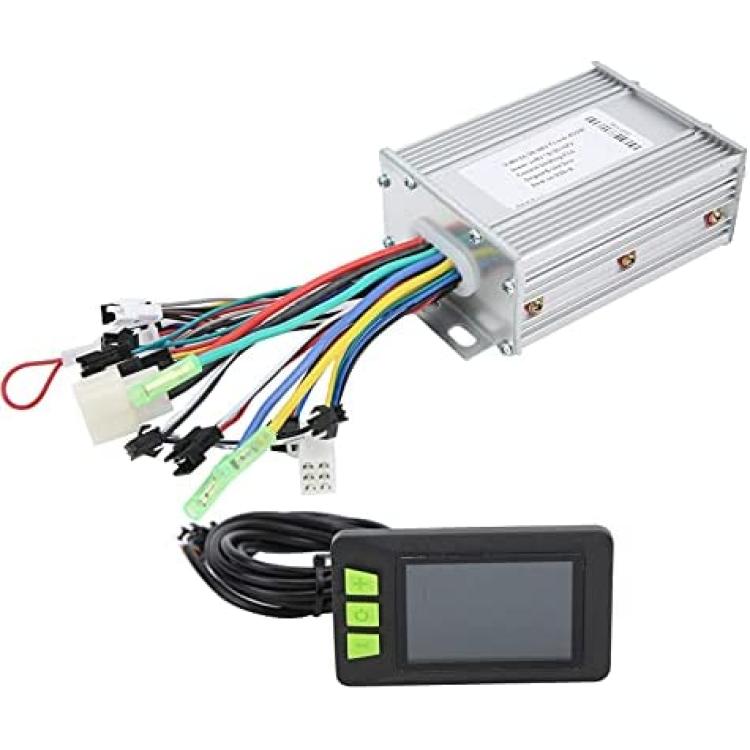

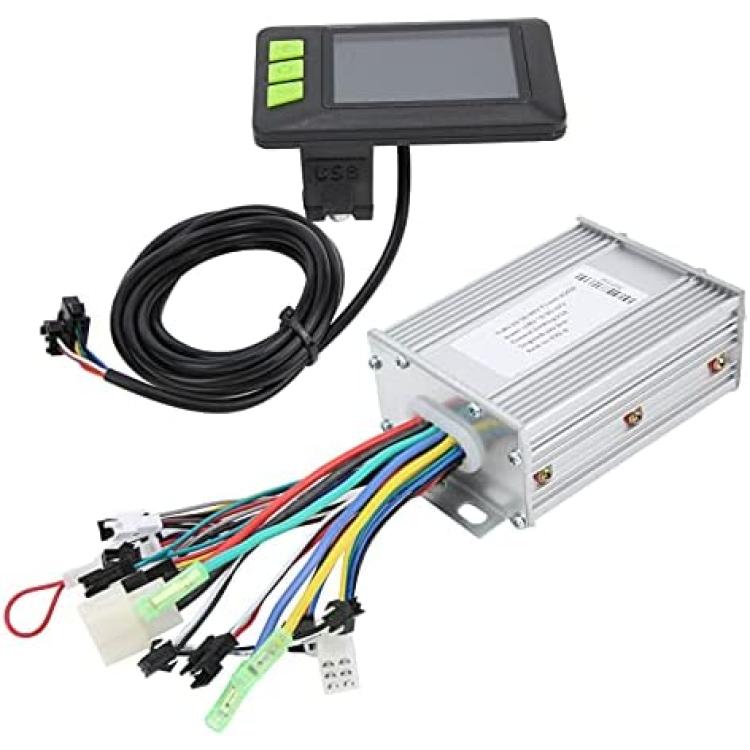

Keenso Electric Motor Controller, 36V/48V 450W 23A Brushless Controller and 930 LCD Color Screen Status Meter for Electric Scooter
About this product
*【Unique Groove Design】-- The products shell is made of high‑quality metal alloy and has groove design, durable and very sturdy.
*【Good Heat Dissipation Capacity】-- The controller has good heat dissipation capacity, which can properly protect the internal circuits and avoid thermal overload.
*【Stable Speed Control】-- The brushless motor controller can provide stable speed control as well as sensitive control of braking and direction change.
*【Clear LCD Display 】-- The controller for electric scooters is easy to install and simple to use, and the LCD display handle is suitable for 22.5mm/0.9in handlebars, and it can indicate the power and status of the scooter.
*【Support Maximum Charging Port】-- The maximum current of the USB charging port is 300mA, which can also charge the mobile phone.
Description
Feature:
1. The product's shell is made of high?quality metal alloy and has groove design, durable and very sturdy.
2. The controller has good heat dissipation capacity, which can properly protect the internal circuits and avoid thermal overload.
3. The brushless motor controller can provide stable speed control as well as sensitive control of braking and direction change.
4. The controller for electric scooters is easy to install and simple to use, and the LCD display handle is suitable for 22.5mm/0.9in handlebars, and it can indicate the power and status of the scooter.
5. The maximum current of the USB charging port is 300mA, which can also charge the mobile phone.
How to Use:
Connect the handlebar socket to the handlebar interface of the controller to realize the function
Specification:
Item Type: Controller and LCD Meter for Electric Scooter
Material: Aluminum Alloy

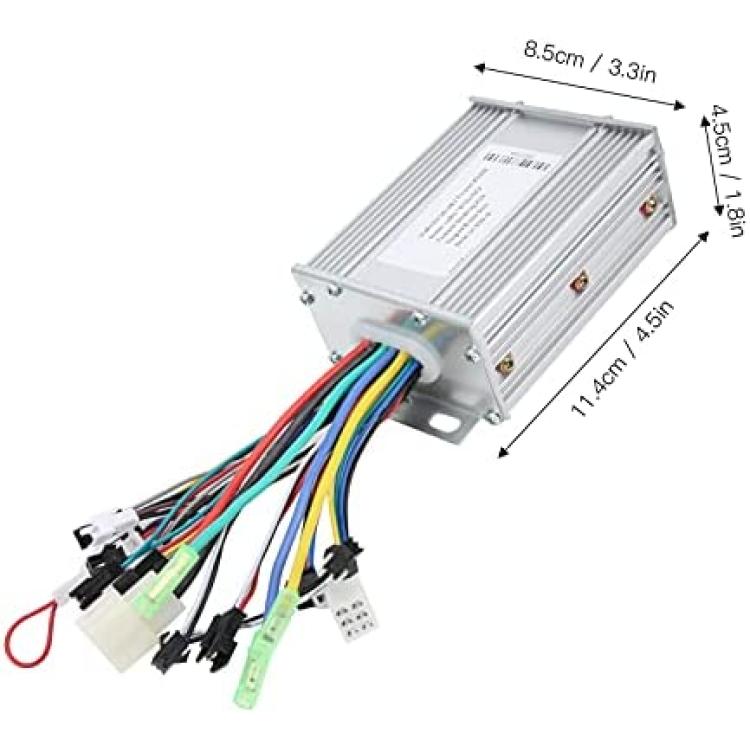

Controller Box Size: Approx. 11.4x8.5x4.5cm/4.5x3.3x1.8in
Power: 450W
Current-limiting: 23A
Voltage: 36V/48VÂ universal
Meaning of the Color of Meter Wire:
1. Red: Power Positive
2. Yellow: Gate Lock
3. Blue: Signal Transmission
4. Green: Signal Receive
5. Black: Cathode HandlebarÂ
6. Brown: Car Light Positive
7. White: Car Light Negative
Weight: Approx. 378g/13.3oz
Package List:
1 x Controller
1 x Meter
1 x Instruction
