sarach store Electric Wheelbarrow Motor 15 inch 48v 350w/500w/ 800w hub Motor Electric Scooter Motor ebike kit Electric Karting Motor

Item Features:

Material:

1. wheel: standard international A356 aluminum heat treatment.

2. magnetic steel: standard 38H

3. iron core: DW350 lamination

4. Hall: Honeywell can resist high temperature:150

Packing List:

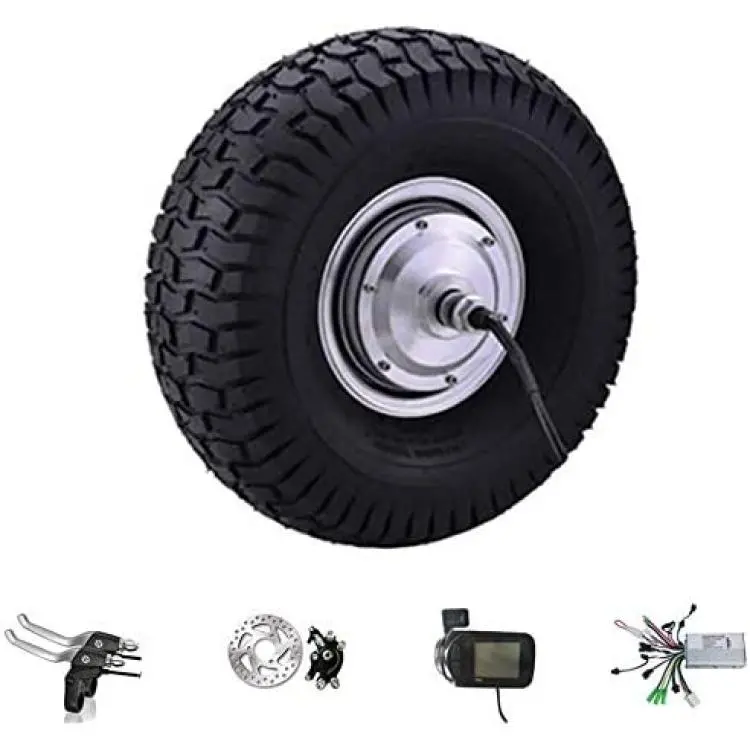

1* 15 inch hub motor

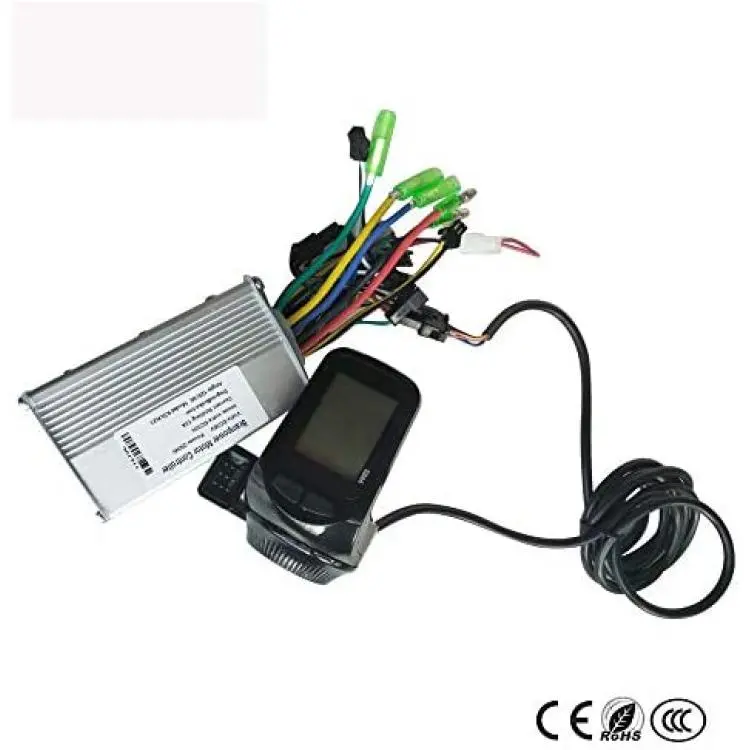

1* controller

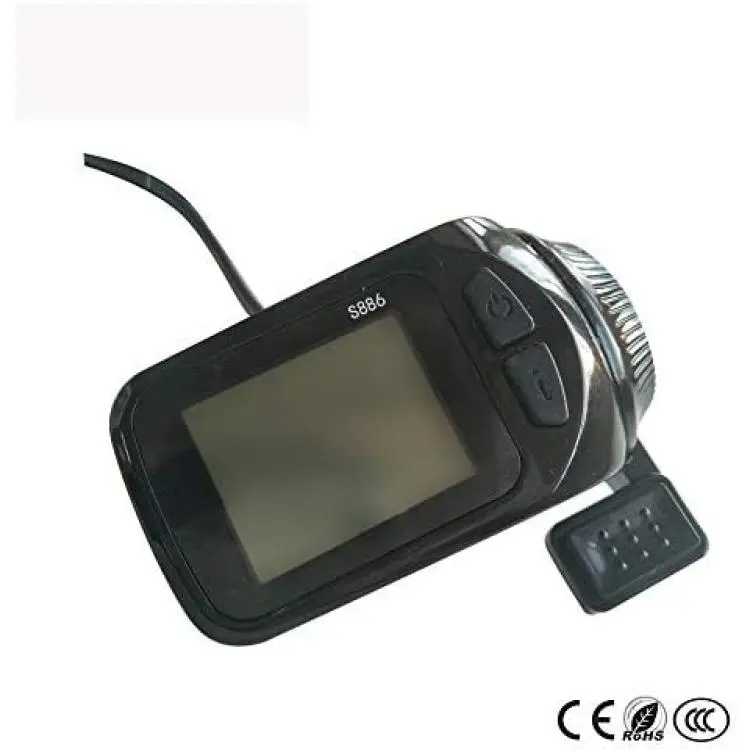

1* S886 LCD display ( Which include a thumb throttle)

2* brake lever

1* Disc brake

S886 Button introduction:

Machine off/on button: short press switch the indication interface/setting interface; long press display on/off.

Adjust button: short press will switch gears, date add or delete in setting interface.

Machine off/on button + Adjust button: long press will in or exit setting.

Under setting interface:

Short press Machine off/on button: Switch setting inforface.

On press Machine off/on button, switch Adjust button: Add or subtract setting date.

P1 adjusts the screen brightness:

P2 speed/hours unit

P3 voltage regulation

P4 sleep time

P5 shift position

P6 wheel size

P7 tuning pole pairs

P8 set speed limit

P9 adjusts the gear position when starting, 0 is soft start; 1 is hard start

P10 pure ankle or pure electric, or 1:1 boost

P11 setting The sensitivity of the boost, 1 is relatively sensitive, 24 is relatively slow

P12 Set the power of the ankle, 1 is weak, 5 is strong

P13 Set the number of magnetic poles for magnetic assistance

P14 Set flow limit

P15 set low voltage protection

P16 setting mileage digital display

For this 15 inch hub motor: P0=35, P1=15, P2=10, P3=1, P4=0
