Hub Motor Kit 10 inch 24-48v 350w-450W 12-40km/h Electric Scooter Wheelchair E-Bike Wheel Motor with Reversing Electric Bicycle Motor Wheel Hub Motor Electric Bike Accessory

Specification:

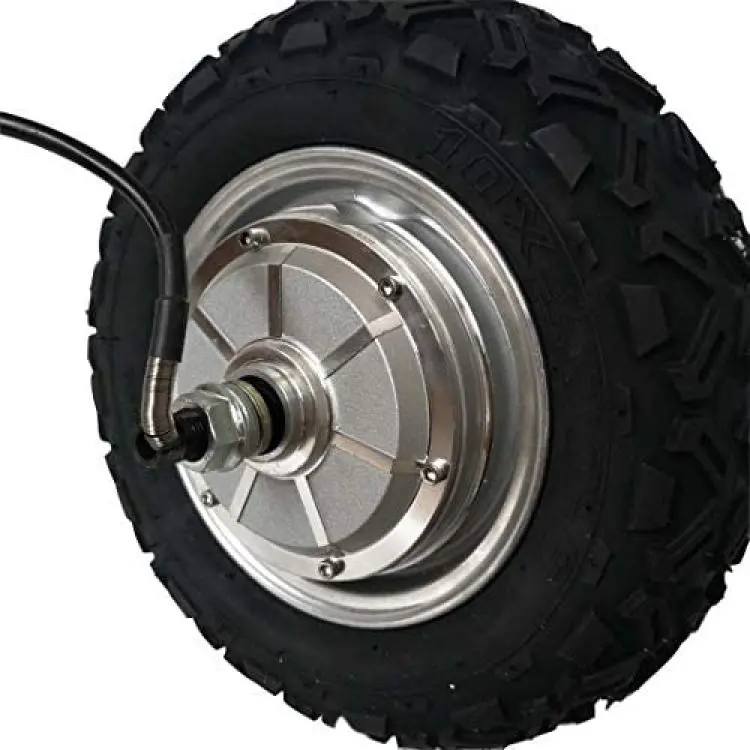

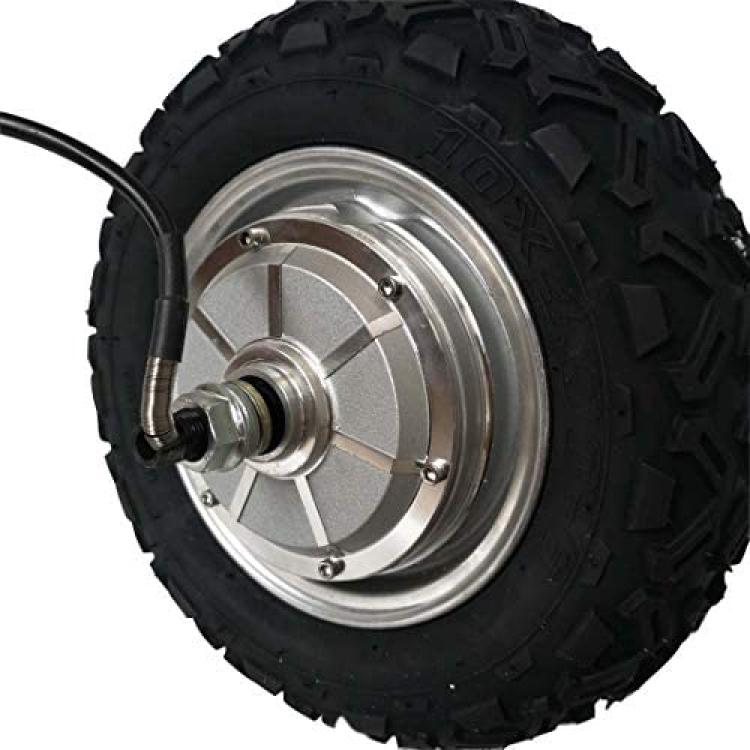

Motor: 10 inch Brushless Gearless motor

Brake type: Disc brake

Motor wheel size( include the tire): 10 inch

Tire Model: 10*4.00-6 Vacuum tire

Tire Width: 78mm

Max Torque: 13 N.M

Rated power : 350W-450W

Rated voltage ?24V 36V 48V

Speed : 12---40km/h

Rotating speed : 400---1400 RPM

?Load Weight: 200-250 kg

Tire Diameter : 275 mm

Open file : 130 mm

Weight : about 6 kg

Material:

1. wheel: standard international A356 aluminum heat treatment.

2. magnetic steel: standard 38H

3. iron core: DW350 lamination

4. Hall: Honeywell can resist high temperature: 150

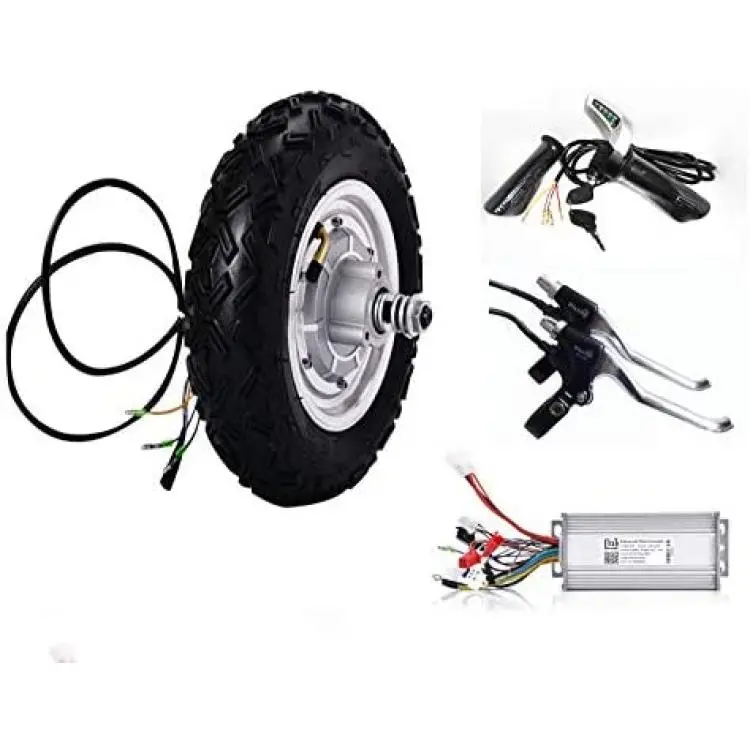

Packing List:

1* 10 inch  hub motor wheel

1* controller

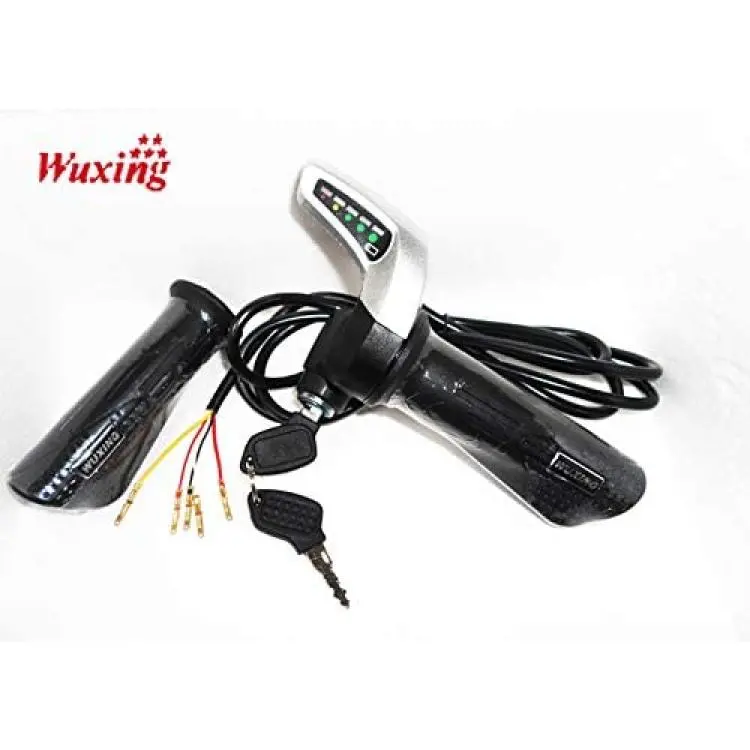

1* throttle

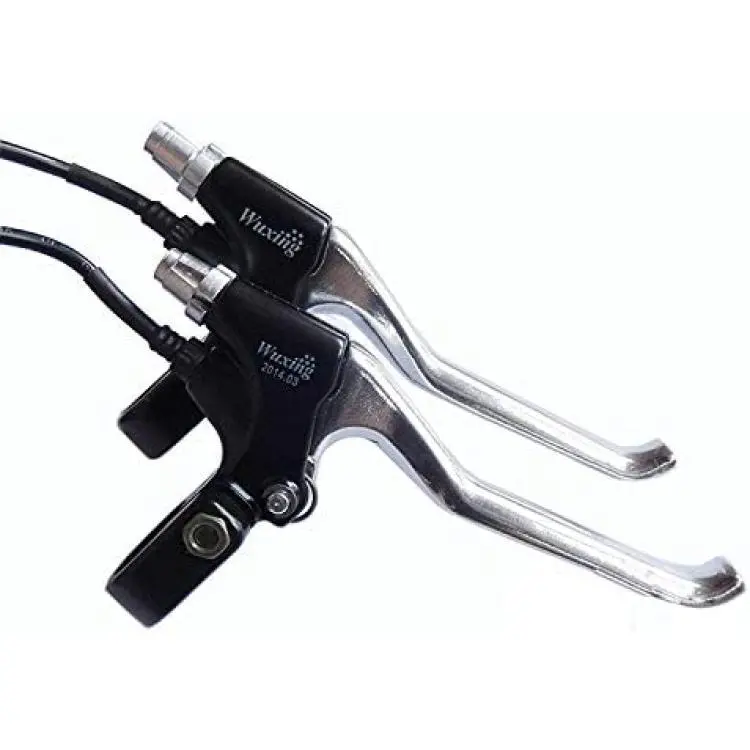

1*brake lever
