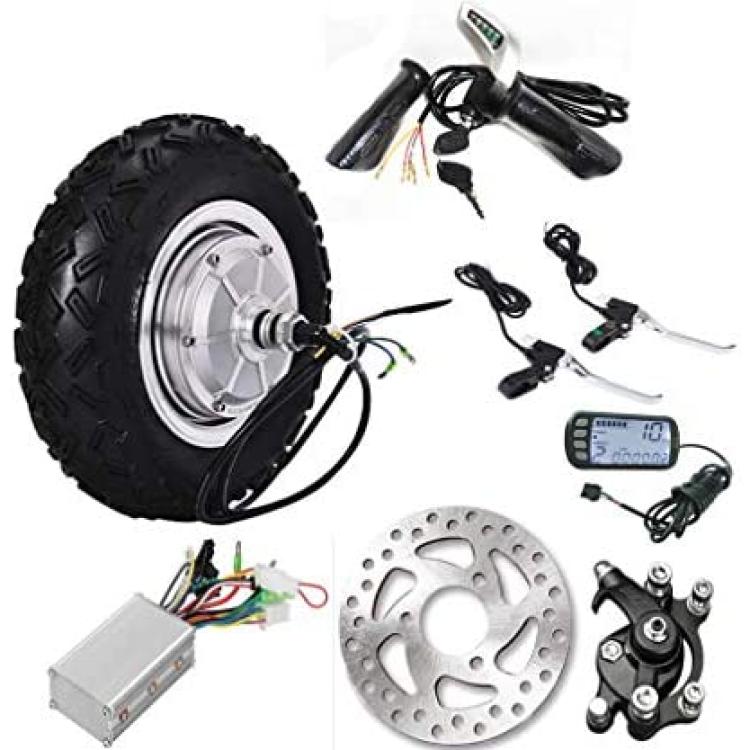

Electric Bicycle Motor 10 inch 36V/48v 500w/800w 12-50km/h Hub Motor kit Electric Scooter Wheelchair Motor Electric Bike Wheelbarrow

Electric Bicycle Motor 10 inch 36V/48v 500w/800w 12-50km/h Hub Motor kit Electric Scooter Wheelchair Motor Electric Bike Wheelbarrow

Application: Motorcycle/ E-scooter/ Electric bicycle/ Wheelchair/ Electric tricycle/etc.

Note?

All the shipping way won't allow the item with gas go to there aircraft. So all the wheels are without gas to arrive to you. When you get it, please inflate the wheel firstly.



Specification:

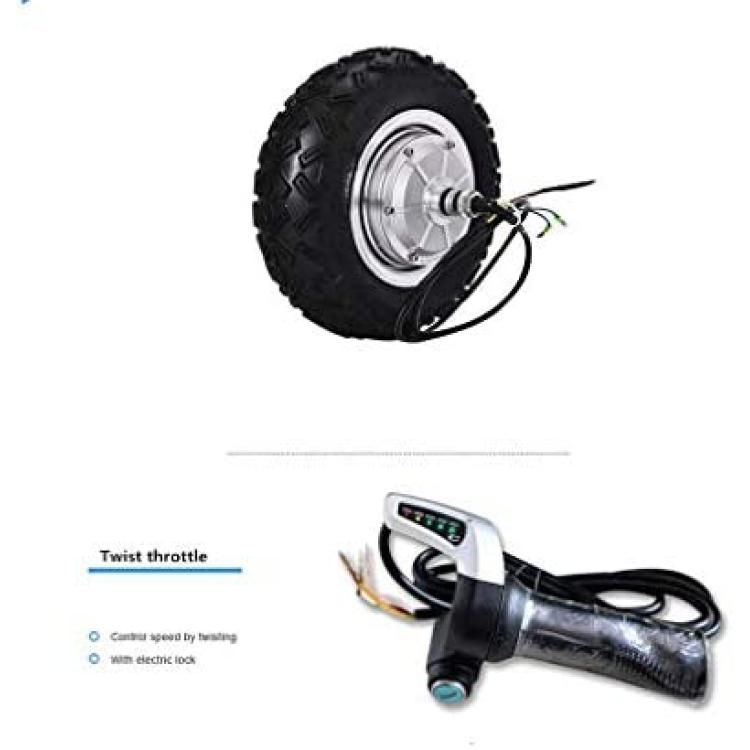

Motor: 10 inch Brushless Gearless motor

Hallsensor: YES (5 hall sensor wires)

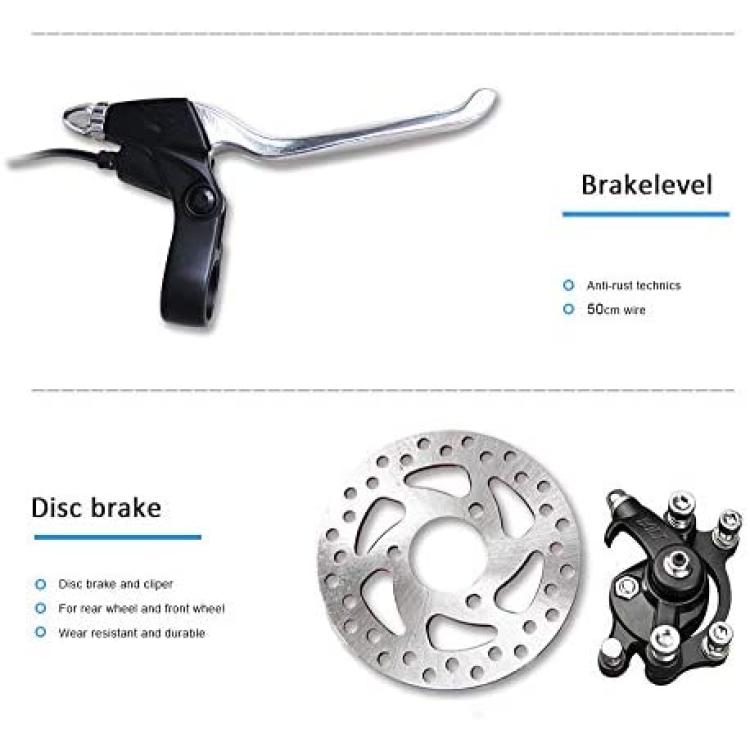

Brake type: V/Disc brake

Motor wheel size( include the tire): 10 inch

Tire Model: 10*4.00-6 Vacuum tire

Tire Width: 78mm

Max Torque: 15 N.M

Rated power : 500W-800W

Rated voltage ?36V/48V

Speed : 12---50km/h

Rotating speed : 250---1000 RPM

?Load Weight: 100-120 kg

Tire Diameter : 275 mm

Open file : 130 mm

Weight : about 6 kg

The gear-less motor: Has a high speed and RPM. It is suitable for riding on the ground, but can't climb a steep slope.

The gear motor: Has a low speed and RPM, but it has a high torque. It is suitable for climbing slope and can load a big weight.

Material:

1. wheel: standard international A356 aluminum heat treatment.

2. magnetic steel: standard 38H

3. iron core: DW350 lamination

4. Hall: Honeywell can resist high temperature: 150
