15 inch Electric Wheelbarrow Motor 48v 350w/500w/ 800w hub Motor Electric Scooter Motor ebike kit Electric Karting Motor

Voltage: 48V

Design: Brushless

Wattage: > 400w

Motor Type: Brushless Non-gear Hub Motor

Model: LY15 hub motor

Rim size: 15 inch

tyre: 15*6.00-6, vacuum tyre

Diameter with tyre: 380mm

Rated voltage: DC 48V

Rated power: 350W/500W

NO-load speed: 800rpm (adjustable 300-1200rpm)

N.W.: 8kg (with tire)

effecificy: >83%

is_customized: Yes

Name:  15inch electric wheel motor 48v 350w/500w hub motor electric scooter motor ebike electric bicycle kit electric karting motor

Character:

1. Brushless and gearless design.

2. Low noise, high efficiency, waterproof and long lifetime.

3. Vacuum tyre, single and double shaft.

Material:

1. wheel: standard international A356 aluminum heat treatment.

2. magnetic steel: standard 38H

3. iron core: DW350 lamination

4. Hall: Honeywell can resist high temperature: 150

For this 15 inch hub motor: P0=35, P1=15, P2=10, P3=1, P4=0

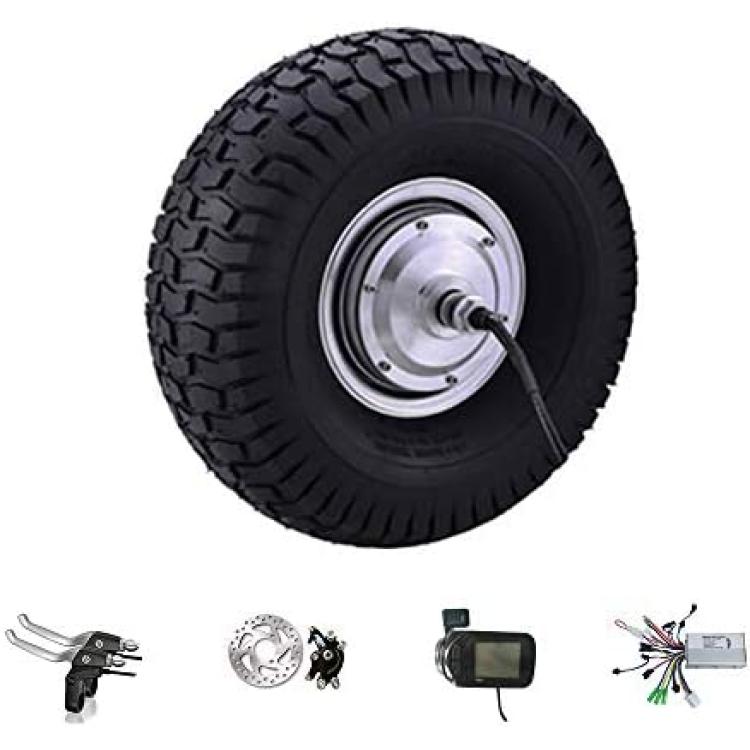

Packing List

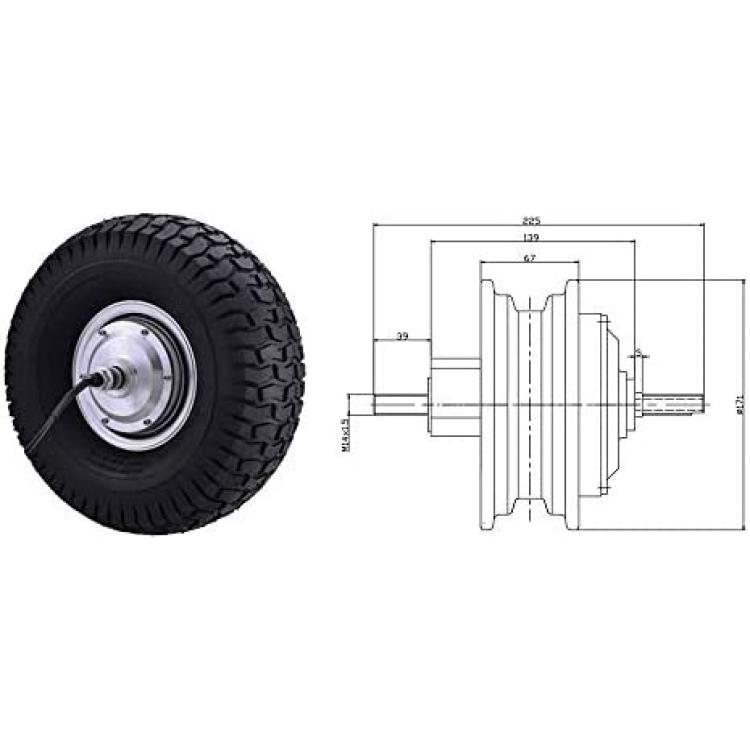

1* 15 inch hub motor

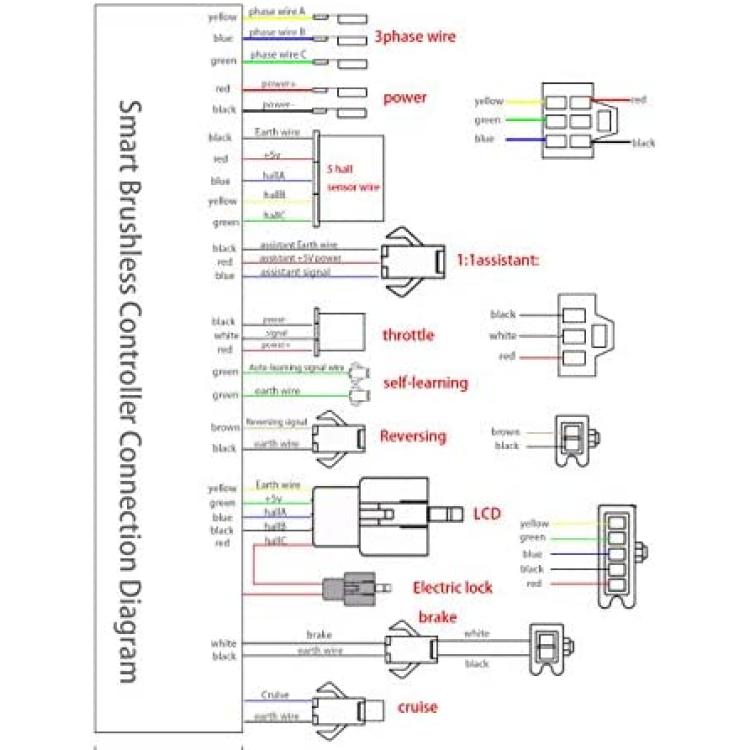

1* controller

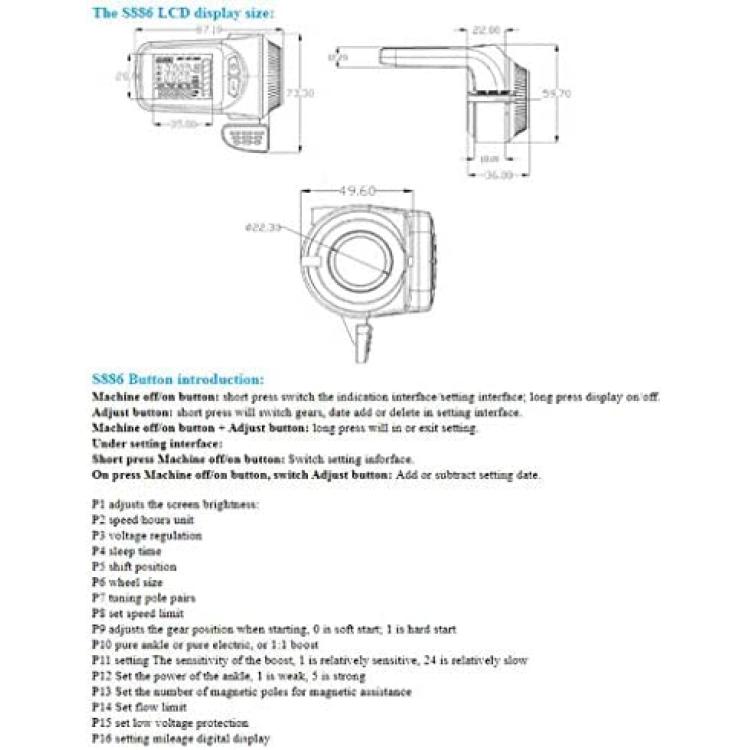

1* S886 LCD display ( Which include a thumb throttle)

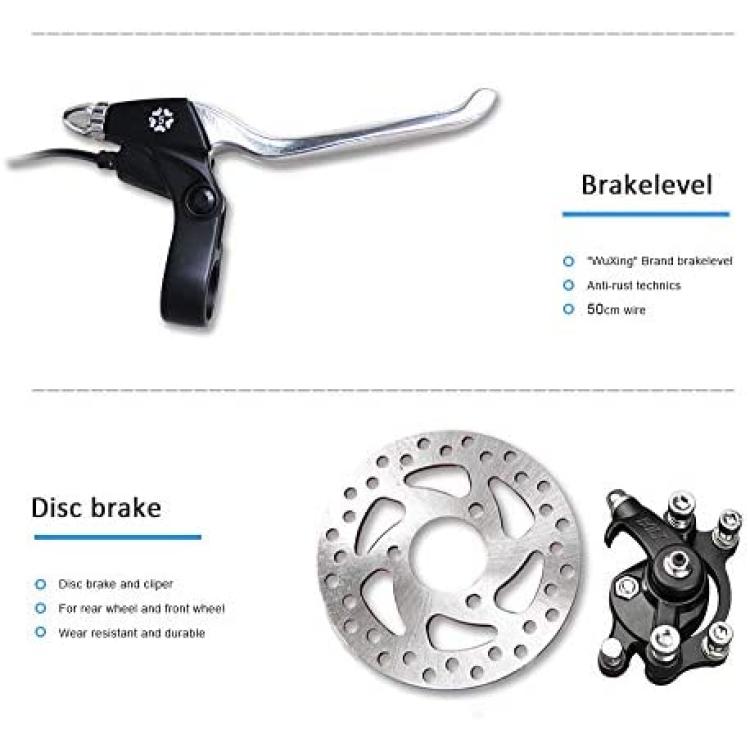

2* brake lever

1* Disc brake

Note

Single shaft motor shaft is non-threaded

Double shaft motor shaft is threaded

If you need thread model on the single shaft motor, please leave message when you make order. Or we will send the non-threaded single shaft model to you
