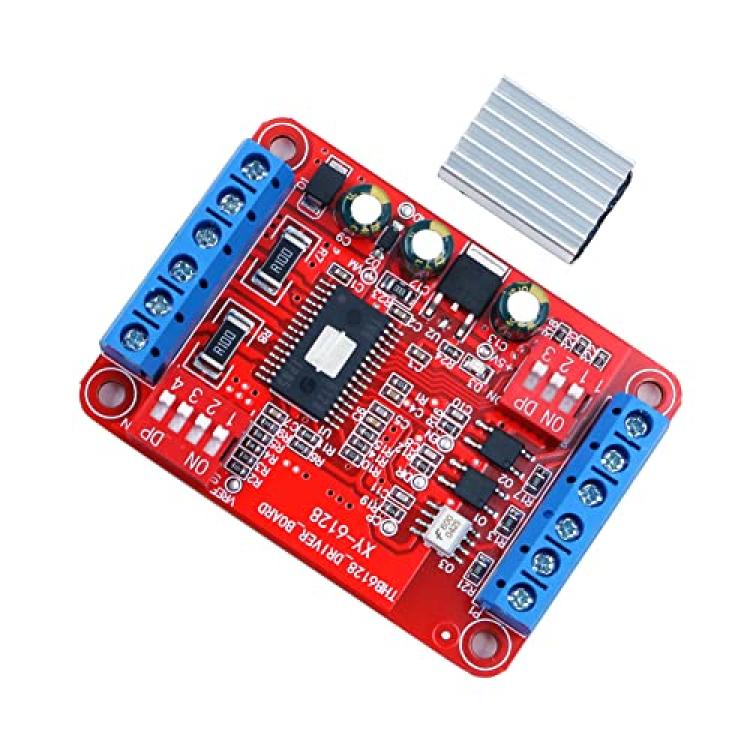

DollaTek THB6128 Stepper Motor Drive Control Module Two-Phase Four-Wire 30V 2A Drive Board
Availability: Pre-Order, Inquiry Price
About this product
*Using THB6128 double full-bridge MOSFET driver, low on-resistance. Chip with automatic half-flow lock function, can reduce the lock motor heating. Chip built-in thermal protection, over-current protection.
*Maximum voltage 36V, peak current 2.2A, continuous current 2A.
*With 1,2,4,8,16,32,64,128 subdivided optional.
*Built-in 5V logic signal supply regulator chip, and add a current limiting resistor to reduce the high voltage input chip fever.
*Input reverse polarity protection.
Description
Features:
Input voltage: DC 9V ~ 36V
Input current: 0.01A ~ 2.2A
Output current: 0A ~ 2.2A
Operating humidity: no condensation, no water droplets
Gas environment: Prohibition of combustible gases and conductive dust
Module weight: 27g/0.95(oz)
The module size: 6.24 x 4.50cm

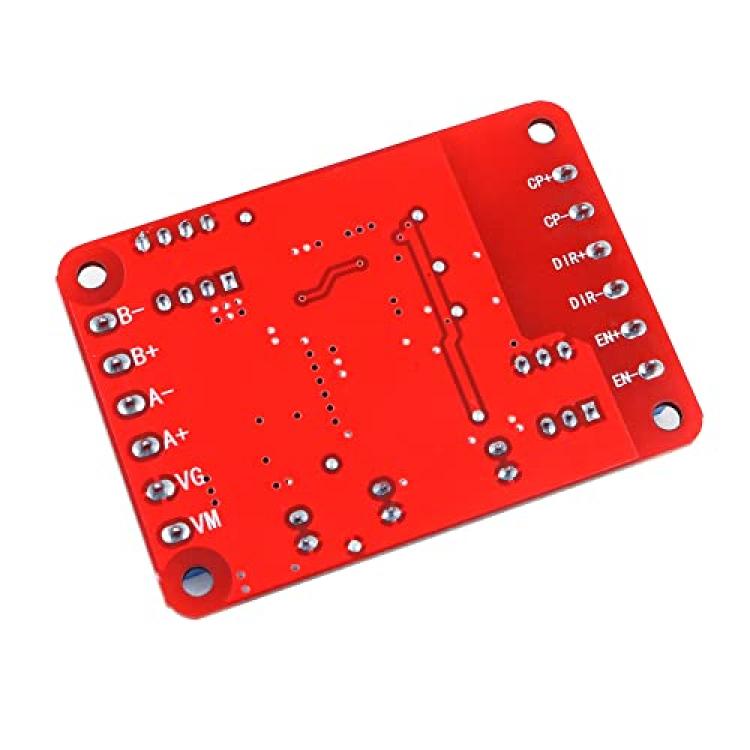

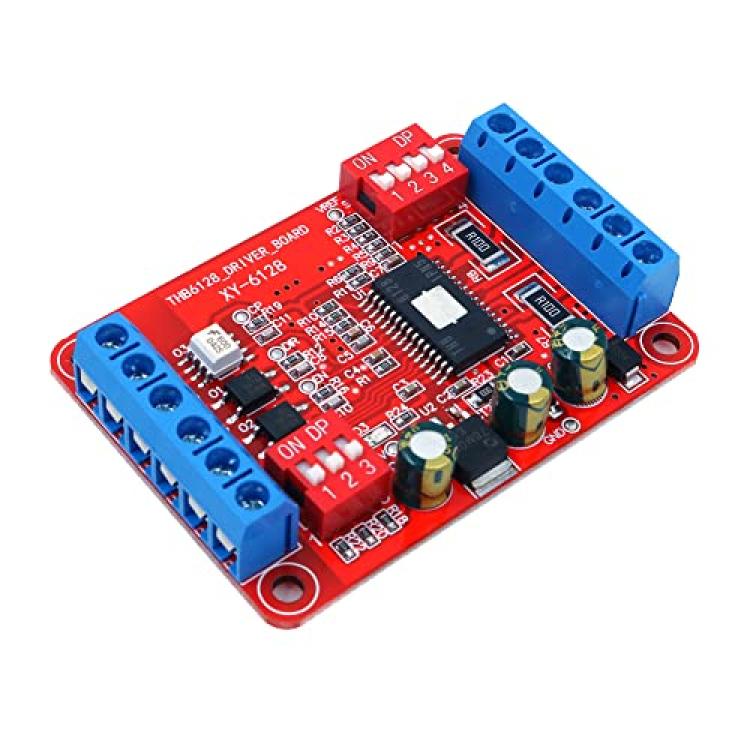

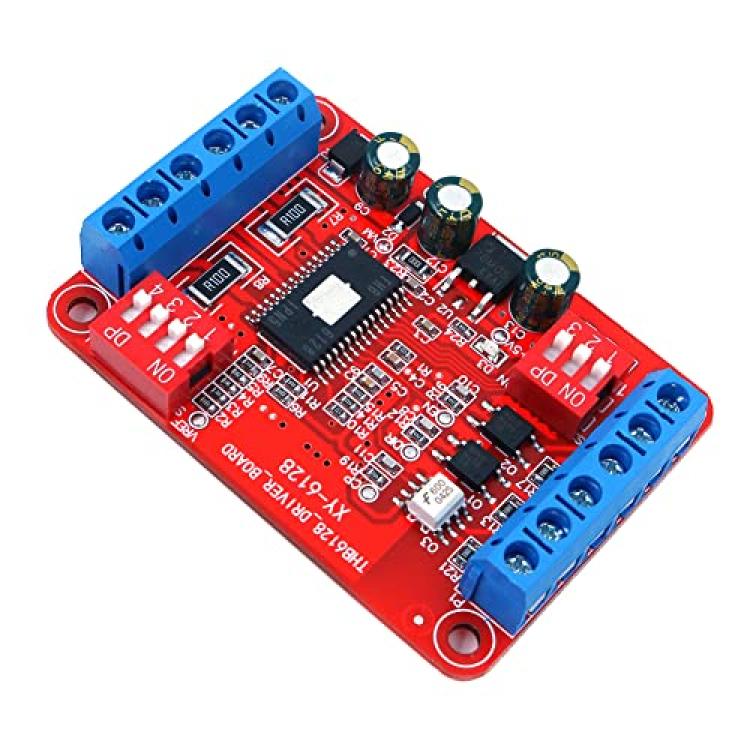

Pin Description:
CP +: Pulse positive input
CP-: Pulse negativeinput
DIR +: Direction positive input
DIR-: Direction negative input
EN +: Enable positive input
EN-: Enable negative input
B-: Motor B-phase negative output
B +: Motor B-phase positive output
A-: Motor A-phase negative output
A +: Motor A-phase positive output
VG: power supply negative
VM: power supply positive
Package included:
1 x THB6128 Stepper Motor Driver
Related Products
