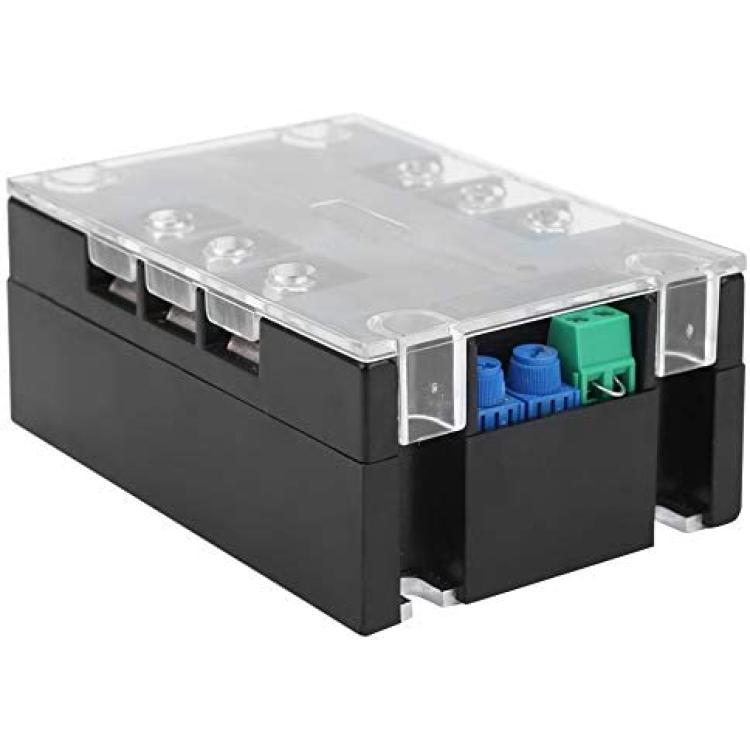

Motor Soft Start Controller, Mounts & Accessories Controls Board, 3-Phase Electrical TSR-40WA-R1 4KW AC Motor Regulator for Conveyors/Compressors [14.50 * 10.50 * 14.50]
About this product
*Usage: When the switch is closed, the soft start of the main power supply starts. Use switch control, turn off the soft start start, and stop after disconnection. Options: 10A below 1KW, 20A below 2KW, 40A at 3-4KW, 60A at 5-6KW, 80A at 7-8KW, 100A at 8-10KW, 150A at 11-15KW, 200A at 20KW.
*Fast Startup: TSR-40WA-R1 motor startup module solves the problem of slow startup of 1-20KW low-power motors. There is no need to connect the bypass on the motor start board, and the contactor is powerful.
*Soft Start: 4KW motor controller with soft start, no soft stop, can replace the soft start of the inverter. Soft start time: 30 seconds adjustable (time rise refers to 0-380V).

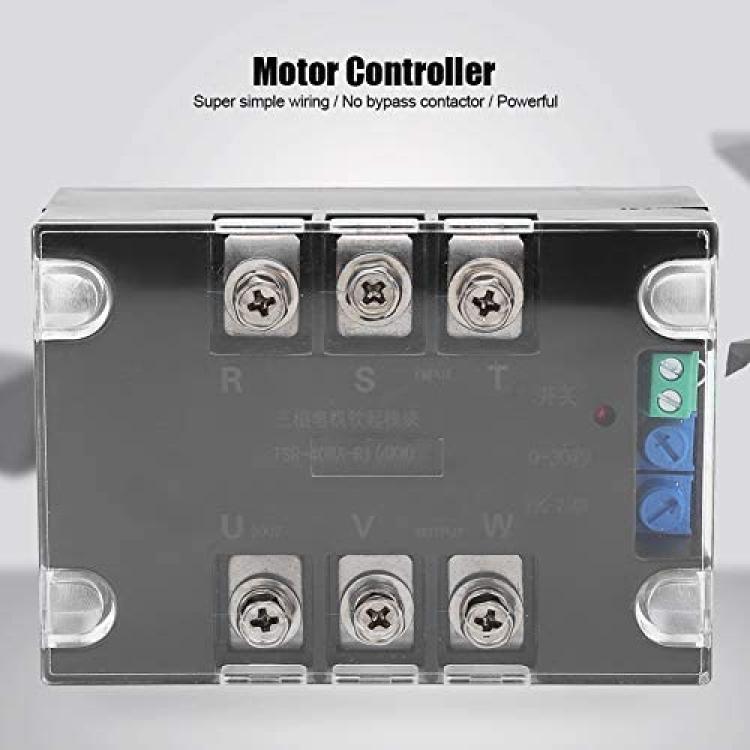

*Easy to Install: 220VAC three-phase motor soft start controller is easy to install, no switch contactor is needed, and it can work for a long time.

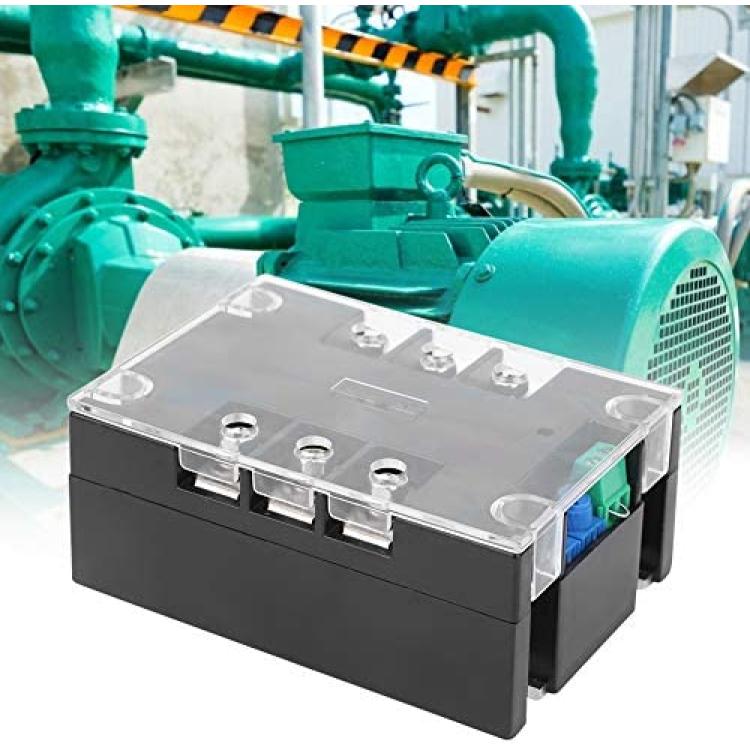

*Wide Applicability: It can be widely used in fans, pumps, belt conveyors, ball mills, conveyors, compressors, etc. It is an ideal substitute for the traditional star-delta conversion, auto-decompression, magnetron decompression, inverter and other decompression starting equipment.
Description
Specification:
Item Type: Motor ControllerÂ

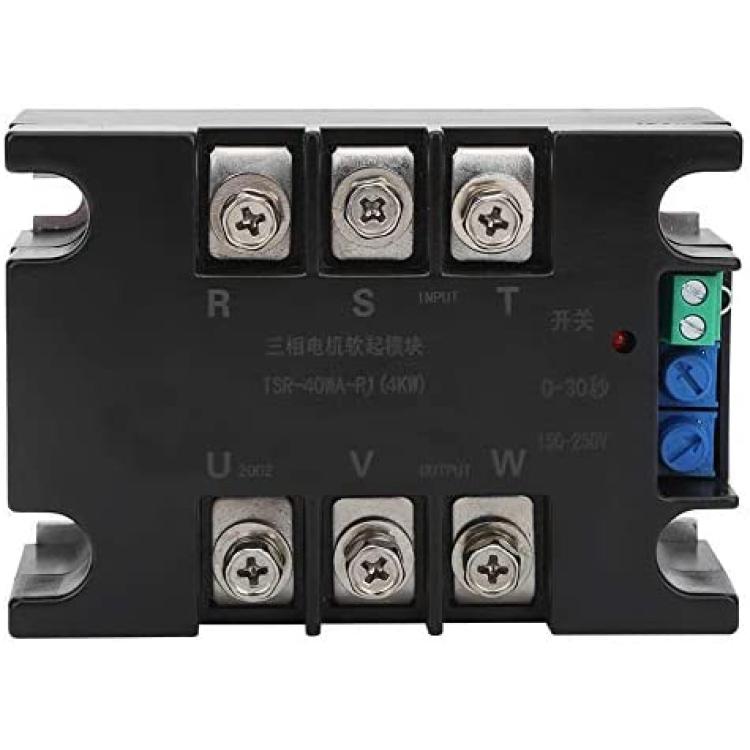

Model: TSR-40WA-R14KW ) (with soft start without soft stop)
Suitable for Three-Phase: 380V
Compatible: 50-60HZ

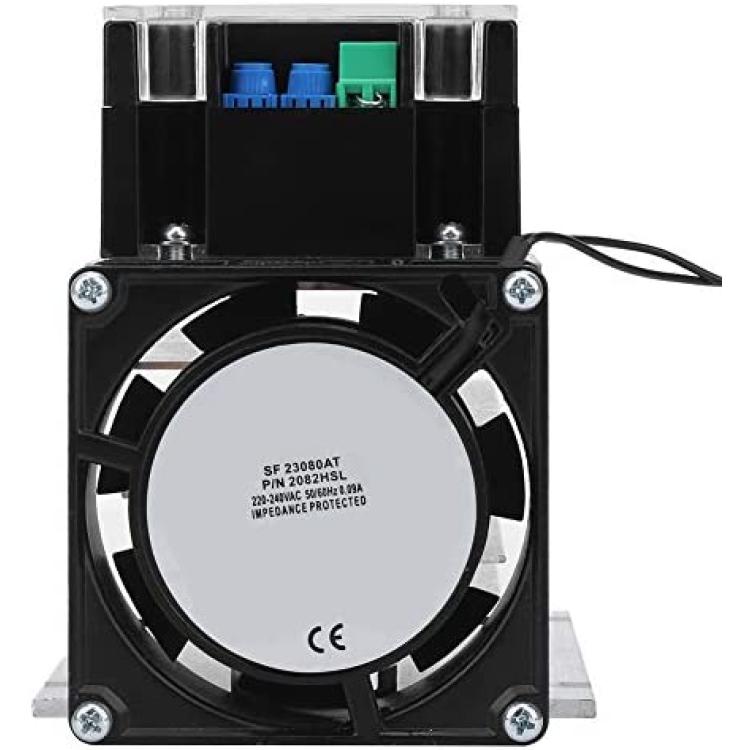

Radiator Voltage: Default 220VAC
Soft Start Time : 30 seconds adjustable (time rise refers to 0-380V).
Starting Voltage: Adjustable slow start from 150-250V to rated voltage (380V)

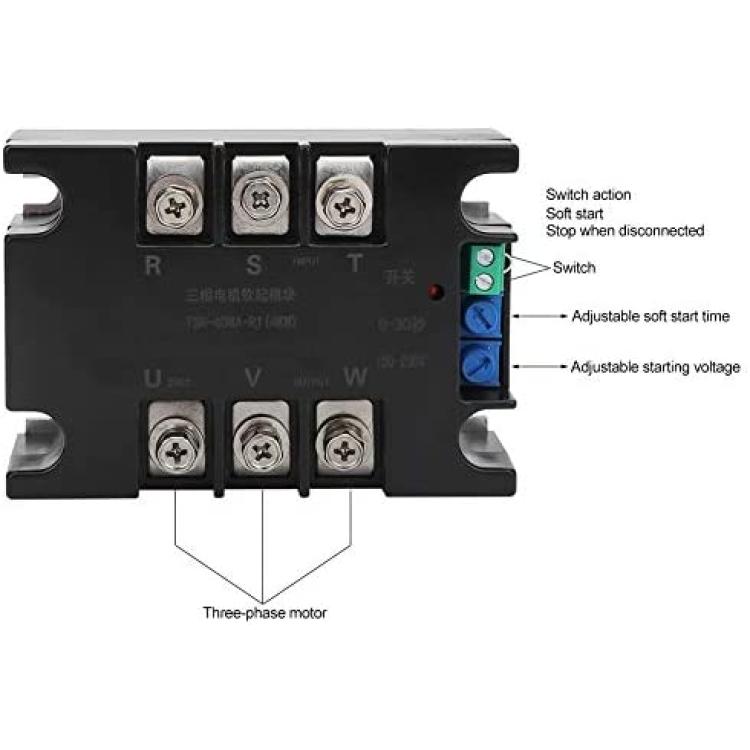

Two Ways to Use:
1. While switch closed, the soft start of the main power supply starts.
2. Use switch to control, start by closing the soft start, stop when disconnected.
Selection: 10A below 1KW, 20A below 2KW, 40A from 3-4KW, 60A from 5-6KW, 80A from 7-8KW, 100A from 8-10KW, 150A from 11-15KW, 200A from 20KW.If the heat sink is larger, the heat sink should also be matched.Â
Package List:

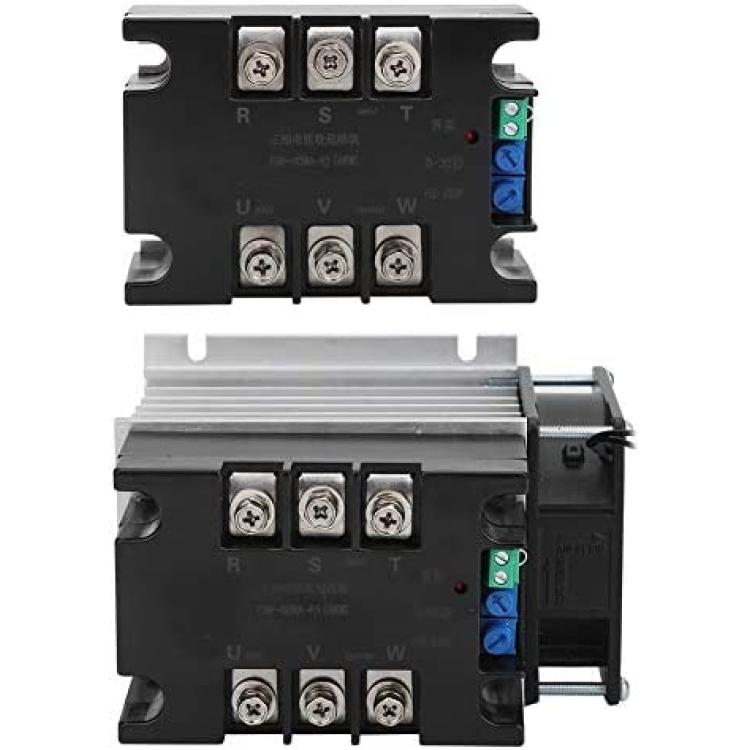

1 x ModuleÂ
or
1 x Overall (Module + Radiator)
Note:
Needs no switch contactor, three-phase motor soft start module supports long time working.
