PWM Recoverable Overcurrent Protection Soft Start Variable Speed DC Motor Speed Controller Switch Control 9-70V 35A
About this product
*【variable speed pedals support】supports variable speed control pedals, and also supports maximum speed settings in this mode to set the maximum safe speed your child needs;

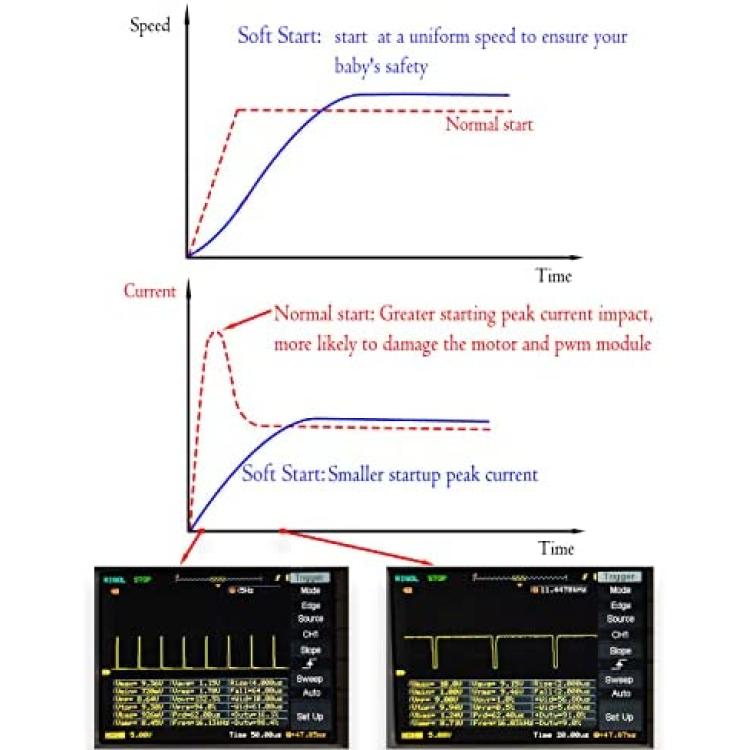

*[Soft Start/Soft Stop Support] Reduce the impact of inrush current when starting and stopping suddenly, prolong the life of the motor and gear, and enhance the safety of children when upgrading childrens electric vehicles;
*[Max 35A Peak Current Automatic Overcurrent Protection] When peak current exceeds 35A or continuous current exceeds 20A, The PWM will be automatically reduced to maintain the output continuous current of 20A. When the current is reduced, it will automatically recover. Fuse will never need to be replaced;
*[Mounting Holes] Without external mounting positioning accessories, it can be installed directly using screws.
*0~100% duty cycle adjustment. 16.23khz frequency. 9-90V input voltage support, have working indication,Aluminum alloy shell. Stronger and more durable.
