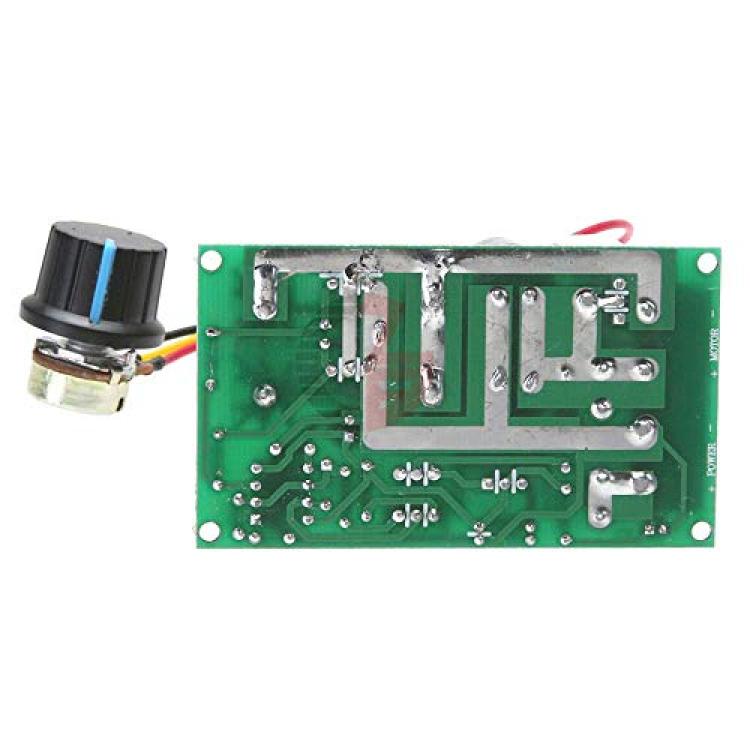

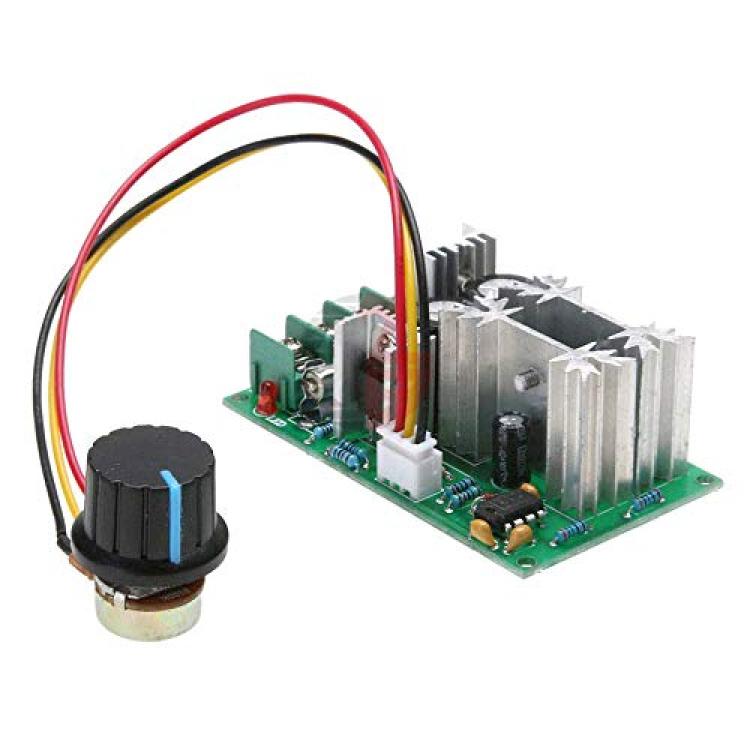

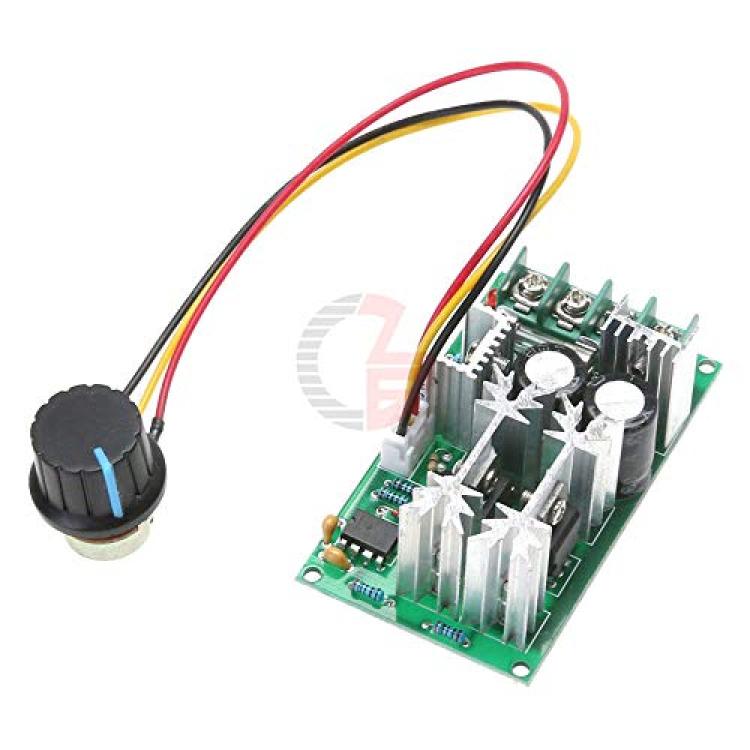

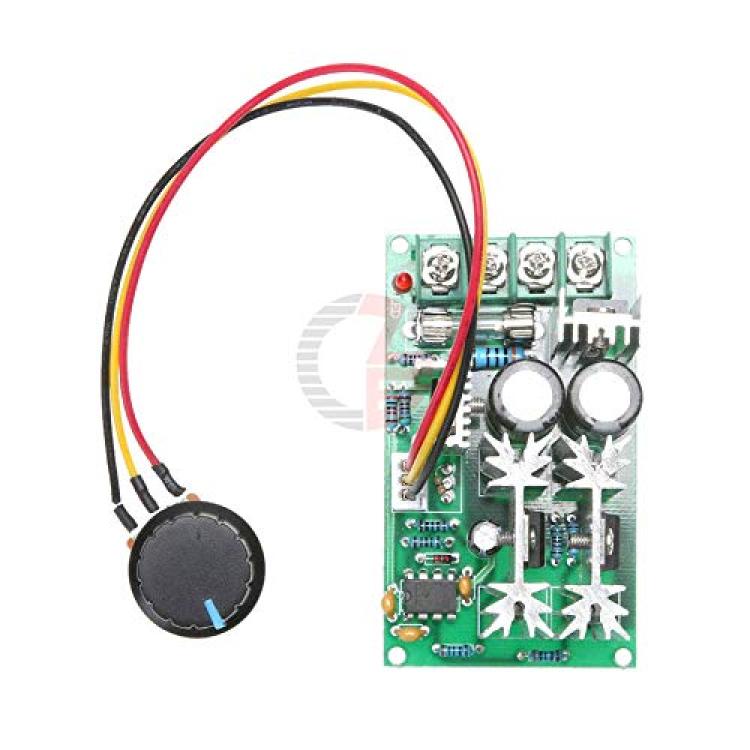

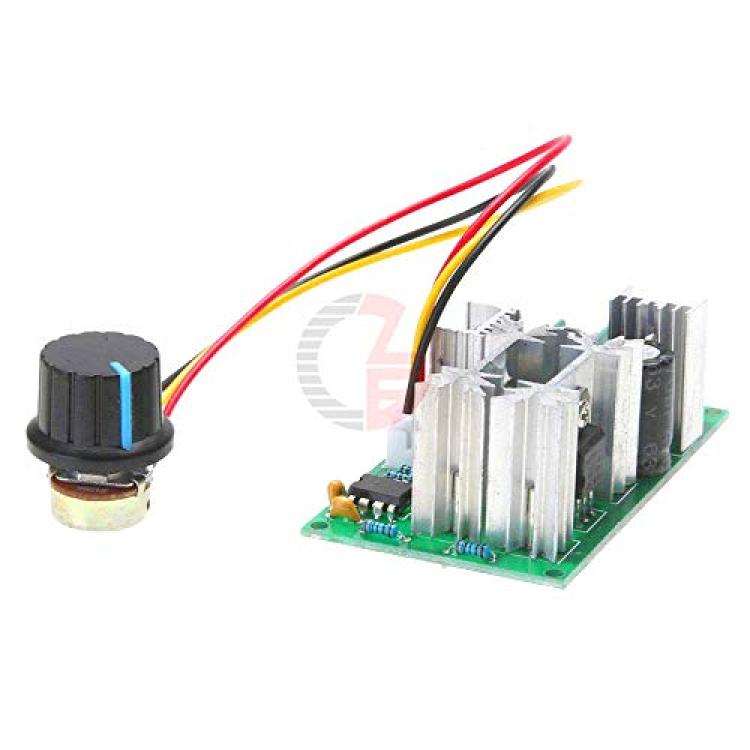

PWM Fan Motor Speed Controller Module 1200W 20A DC 12V/24V/36V/48V/60V 25KHZ Soft Start Speed Control Switch Power Regulator
Availability: Pre-Order, Inquiry Price
About this product
*PWM Fan Motor Speed Controller Module 1200W 20A DC 12V/24V/36V/48V/60V 25KHZ Soft Start Speed Control Switch Power Regulator
*Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*PWM Fan Motor Speed Controller Module 1200W 20A DC 12V/24V/36V/48V/60V 25KHZ Soft Start Speed Control Switch Power Regulator
*Developed country Estimated Delivery Time: 7-18 days by Special line. 10-30 days for other country..We provide Expedited Shipping service : 3-8 days.(excluding handling time).If the order amount above US $200, we will use Expedited Shipping service for free.
*Date First Available : October 21, 2019
Description
Features:
12V 24V 36V 48V High-Power Drive Module DC Motor Governor PWM Controller
Double power tube parallel design can ensure 20A large current and 25KHZ motor control frequency
The back lining tin processing and with a fuse for overload protection to ensure not burn in even high current
Safe and reliable to use.
Specifications:
Input Voltage: DC 9-60V
Output Voltage: Linear Load
Output Current: 0-20A
Maximum Current: 20A
Continuous Current: 18A
Continuous Power: 1200W
Control Frequency: 25KHZ
Speed Regulating Type: Adjust Flow
Speed Mode: Potentiometer (linear)
Speed Range: 0-Potentiometer Mounting Hole: 7mm (Approx.)
Module Size: 77 x 45 x 28mm/3.03 x 1.77 x 1.10 inches (Approx.)
Board Size: 73 x 40mm/2.87 x 1.57 inches (Approx.)
Package Included:
1 x Speed Controller
