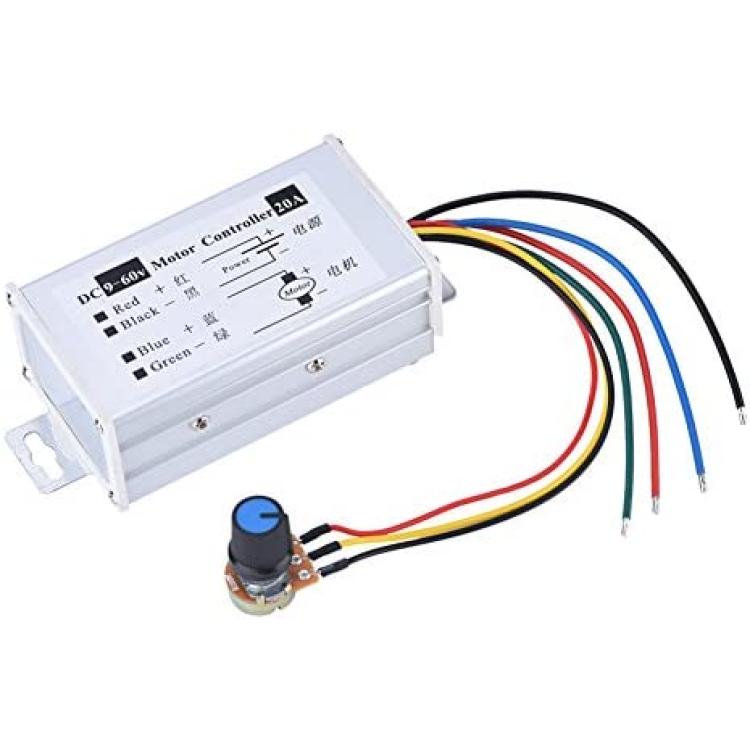

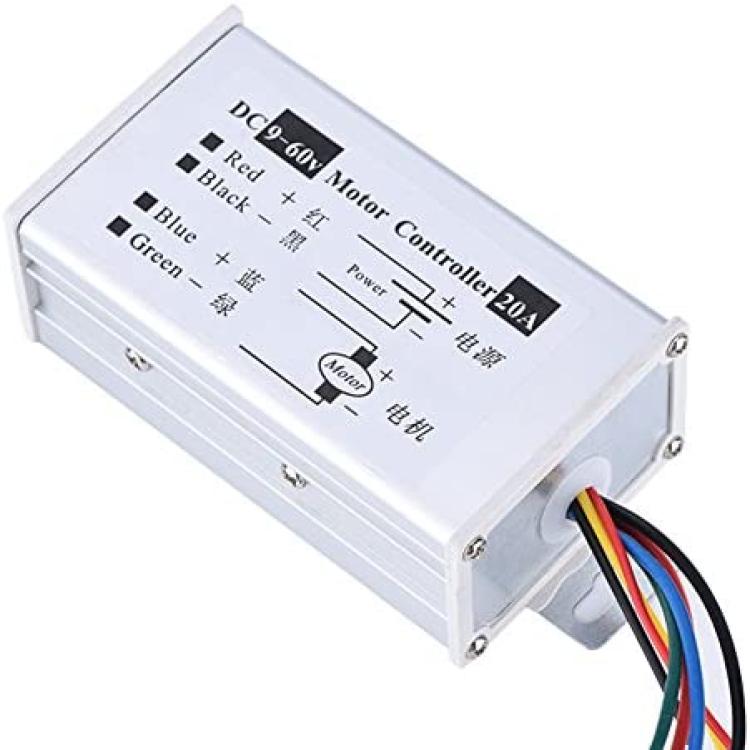

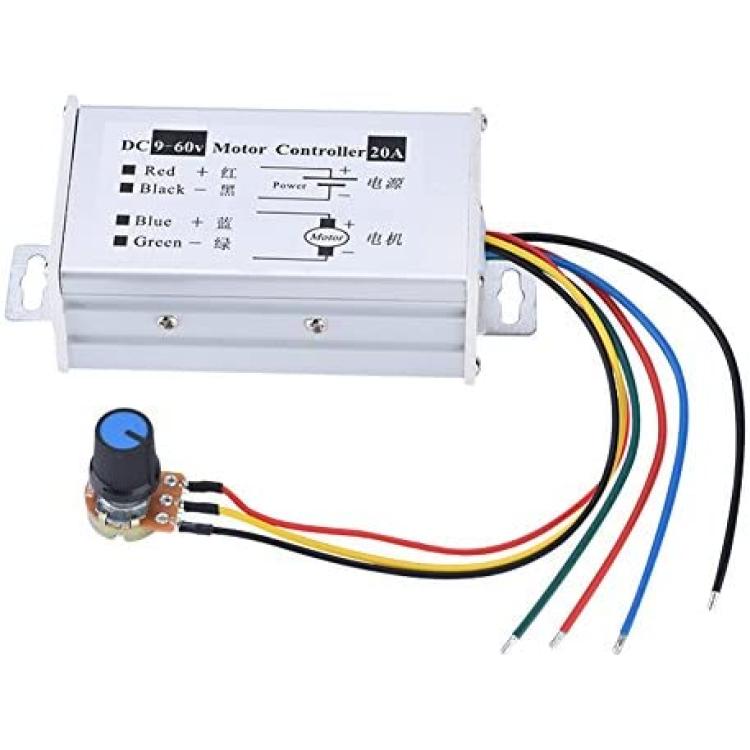

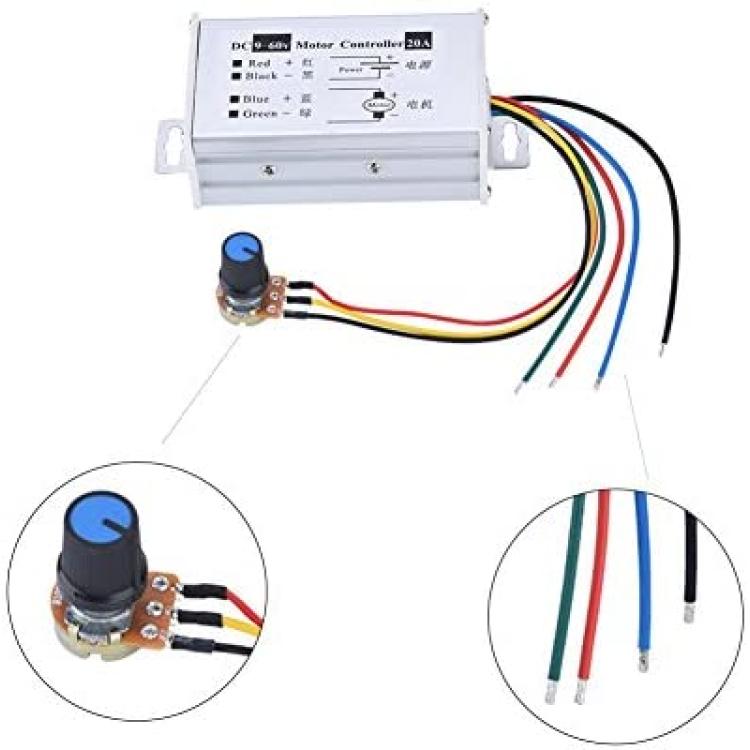

Tangxi PWM DC Motor Speed Controller 9-60V 20A 1200W 25KHz Control Switch Motor Speed Regulator 9V 12V 24V 48V 60V for DC Electric Fan
About this product
*1. The adjustable voltage range can be adjusted from 9V to 60V, the output current: 0-20A, the speed can be adjusted by adjusting the current, and the speed adjustment range is between 0-100%.
*2. The module length*width*height is 92MM*52MM*36MM, the output voltage is linear under load, the continuous power is about 1200W, the speed regulation method is potentiometer (linear), and the control frequency is about 25KHZ
*3. The use of high-quality exquisite metal shell, no rust, safe and convenient to use, high-quality circuit board can ensure stable and durable performance, easy to use: easy to control voltage and speed through the adjustable knob.
*4. The potentiometers opening is about 7MM and the weight is about 100g. The product accessories only include a speed regulator.
Description
Description:
This is a simple and easy-to-use DC motor speed controller with mini size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 9V to 60V and output voltage is 0-100% of the input voltage. This speed controller is quite convenient to use.
Specifications:
Color: Silver
Material: Metal
Input Voltage: DC 9-60V
Output Current: 0-20A
Power: 1200W
PWM Frequency: 25 KHz
Adjustable Speed Range: 0-100%

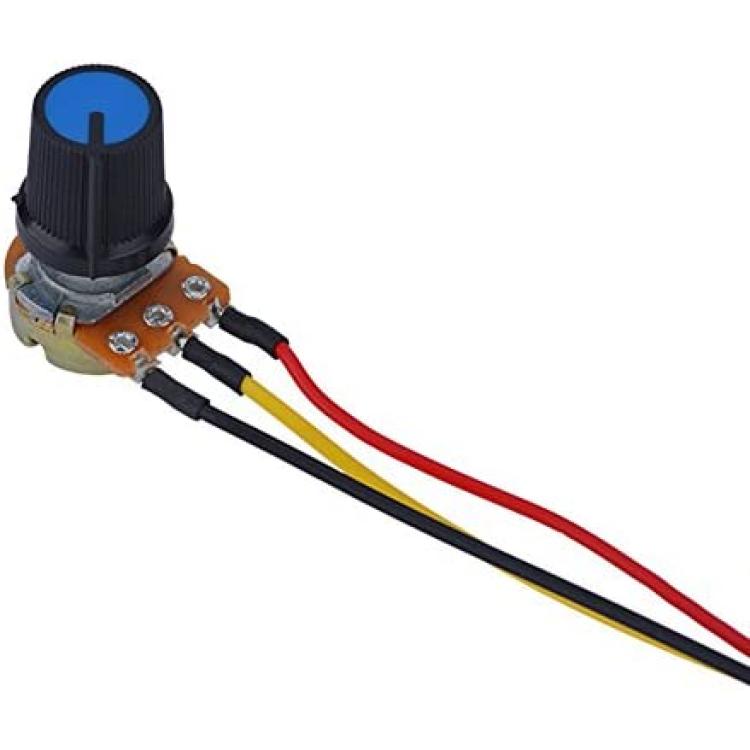

Speed Adjustment Way: Potentiometer
Output Voltage: Linear under load
Efficiency: >90%
Size: Approx. 92 x 52 x 36mm / 3.6 x 2.0 x 1.4in
Package Weight: 132g
Â
Package List:
1 x Speed Controller
Â
Note:
This DC motor controller input is connected to direct current, CANNOT be connected to alternating current, or it will be burnt. Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
