2000W AC SCR Motor Speed Controller Electric Voltage Regulator 0-220V 25A Adjustable Speed Controller
About this product
*Product parameters: Input supply voltage: 110V ～ 250V AC. The output voltage:50V-250V. The maximum output power: 2000W. The maximum output current :25A
*The output voltage is adjusted anywhere between 50V-220V for use with electrical appliances.

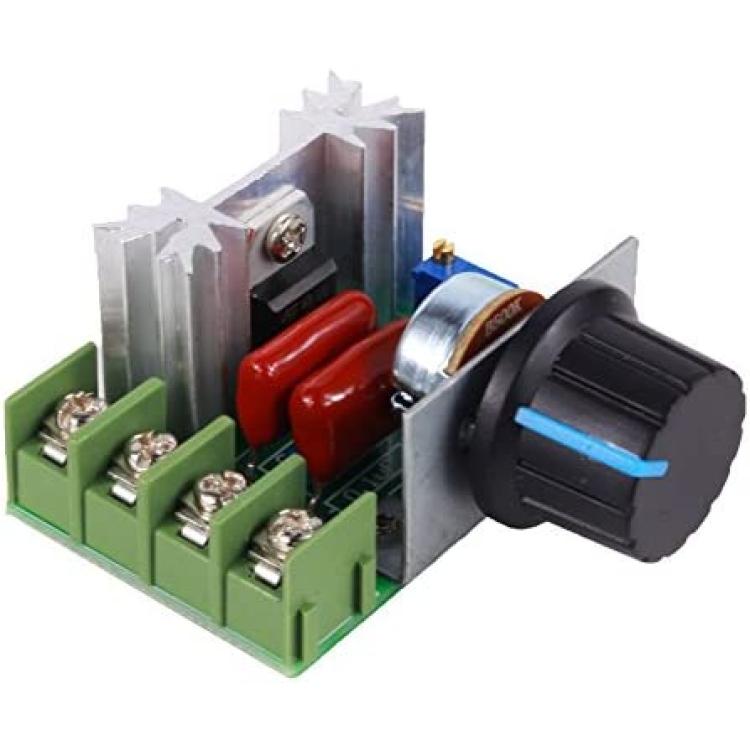

*This controller uses novel bi-directional high-power SCR. It can be very convenient adjust the current up to 25A, and solve the over current problem of the heating wire resistance is too small in the case of cooling causing good.
*It can use to such as electric stove, water heater tune thermal, lighting dimmer, small motor speed, electric iron thermostat, and achieve dimming, thermostats, pressure regulator effect.
*For the safety, we suggest the continuous load current is within 5A.
Description
Description:
This AC voltage regulator can be used to control AC motor speed, AC light and heating wire temperature.Â
Inductive or Capacitive Load power should be reduced. For example, recommended for motors within 1000W.
Specification:
-Input supply voltage: 110V ? 250V AC
-The output voltage:50V-250V (Output voltage <= Input supply voltage)
-The maximum output power: 2000W
-The maximum output current :25A
-The voltage regulating range:50V-250V AC (Output voltage <= Input supply voltage)
-The operation environment temperature:-20C-40C
-Size: Approx. 47×35×27mm
Package Included:
1 pcs × 50-220V 25A AC Motor Speed Controller
