DFRobot Romeo - a Robot Control Board with Motor Driver based on Arduino
About this product
*Romeo is an All-in-One Arduino compatible microcontroller especially designed for robotics applications from DFRobot
*Romeo is a robot control board based on Arduino Uno. It has built in 2x2A DC motor drivers and socket for bluetooth / APC220 communications. The integrated sensor shield allows it connect hundreds of different sensors.
*It benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with your Arduino-comaptible shields
*The integrated 2 way DC motor driver and wireless socket allows you to start your project immediatly without the need for an additional motor driver or wirless shield.
*More tutorial (English Version) please search "product guides and documents" on this page to download. If you couldnt find it please contact with DFRobot Customer Service on Amazon.
Description

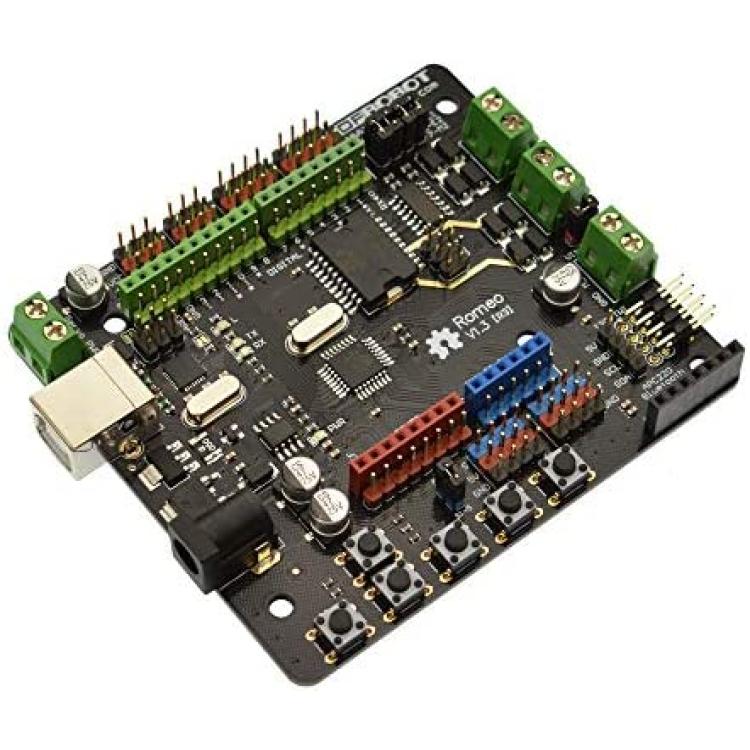

Romeo All in One Robot Controller Board
Romeo All in One Robot Controller Board
Features
DFRobot Arduino Microcontrollers Series
Romeo family is an All-in-One Robot control board especially designed for robotics applications from DFRobot. It benefits from the Arduino open source platform, it is supported by thousands of open source codes, and can easily be expanded with your Arduino shields. The integrated 2 way DC motor driver and wireless socket allows you to start your own robot project immediately without the need for an additional motor driver. Not just has the motor driver, Romeo is also designed to have extra power for servos which need more current.DFR0004 - This is the first member in Romeo family that is born in 2009. It is not only the very first Arduino Robot Controller, but also the first Arduino-derived board in the market. The current version of Romeo is based on Arduino Uno.DC Supply:USB Powered or External 7V~12V DCDC Output:5V /3.3V DC and External Power OutputBootloader: Arduino UnoCompatible with the Arduino Uno pin mapping8 Channels 10-bit Analog I/OUSB interface5 key inputsAuto sensing/switching power inputICSP header for direct program downloadSerial Interface TTL LevelSupport Male and Female Pin HeaderIntegrated sockets for APC220 RF Module and DF-Bluetooth ModuleThree I2C Interface Pin Sets(two 90°pin headers)Two way Motor Driver with 2A maximum currentGold plating pcb boardMicrocontroller: Atmega328Working voltage: 5VCPU Frequency: 16MHzSPI: 1Interrupt pins: 2Vin: 7-12VIDE version: Arduino 1.0 and above
