UYGALAXY Greenhouse Roll Up Motor Timer Controller Automatic for Ventilation with AC110V to DC24V Transformer Timing Control Open Close Greenhouses Film Side Roof Curtain

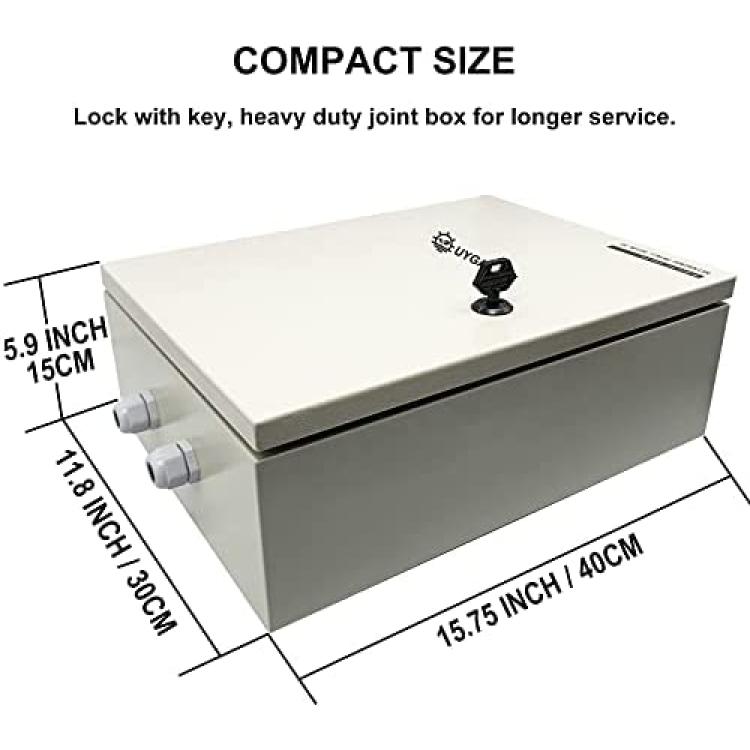

Swith1: ON/OFFFuse: 10A Press to resetToggle1: Auto/ManualToggle2: Open/Stop/Close Window by hand Switch Style: Maintained (switch the toggles, the motors will keep running until the limit is reached.) Input: AC 110VOutput1: DC 24VOutput2: DC 24VJoint box: 300W Transformer + programmable timerSize: 15.7*11.8*5.9inch 1.The motor with limit switch would stop once hitting the limit. 2.10A fuse for two channel of outputs. 3.Please install it inside the house. 4.The product is with timer, its main for controlling the motors unattended.. Set the local timeSet the time of ON(open)/Off(Close)Set it as auto modeFor AC Input: Connect the black wire(L,live) to 110V and connect the white wire(N,neutral) to 0VIndividual grounding bar (Optional)Please carefully if wire it, make sure you are using grounding wireOr easily connect a wire between the metal shell and the earthAutomating the work.Compact size and easy installation.Collocate with 24V roll up motor or linear actuator.It doesnt contain a limit switch, but motor usually has.Above motors are recommended to collocate.Its suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included.
