Patioer Greenhouse Roll Up Motor DC 24V for Greenhouse Ventilation

Patioer Greenhouse Roll Up Motor DC 24V for Greenhouse Ventilation

Brand: ME-0052-Motor
Product Code: MM5400
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*This greenhouse electric film Reeler has a 50W motor, fit for most of your film ventilation roll up work. 1.5 square copper core wire shall be used within 50 meters from the accessory box to the film rolling machine.

*Small size,low noise,easy installation,setting the limit switches on hoop house roll up ventilation motors.

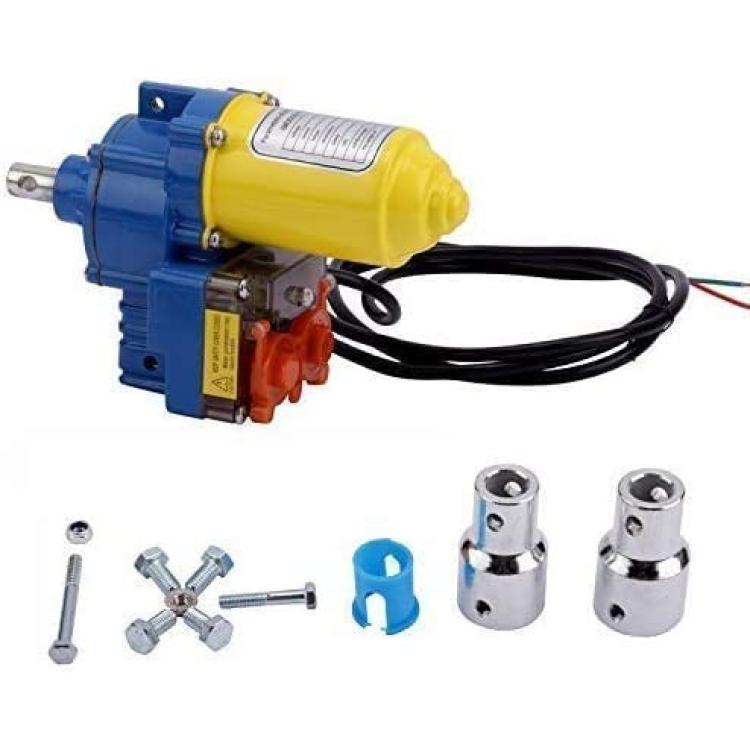

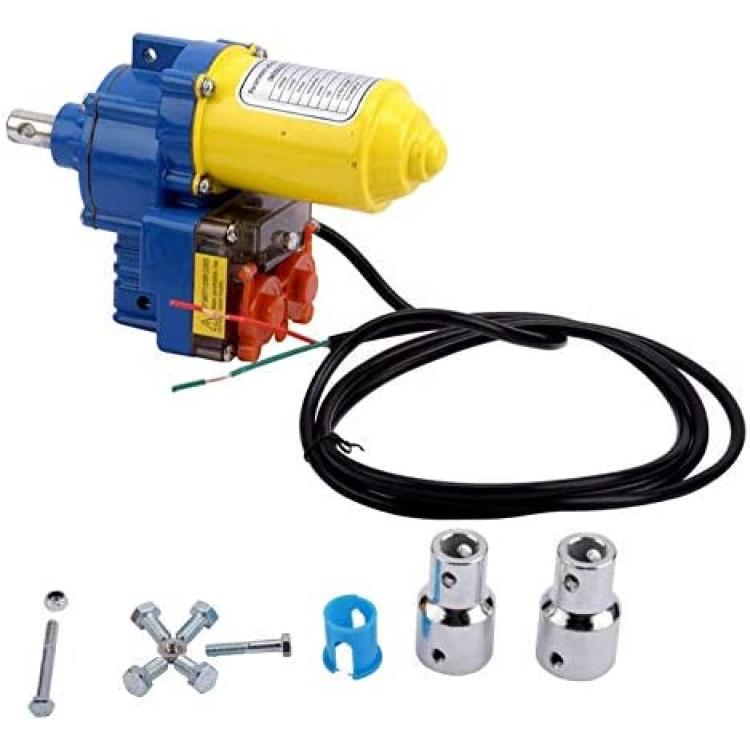

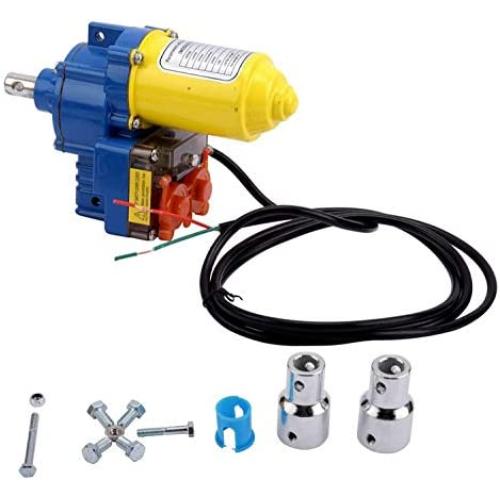

*Package include roll up motor, variable diameter connector, bolt.

*Suitable for breeding greenhouses, flower greenhouses, connecting film greenhouses, fruit greenhouses. Excellent reliability Ideal for other light deprivation and blackout systems.

Description

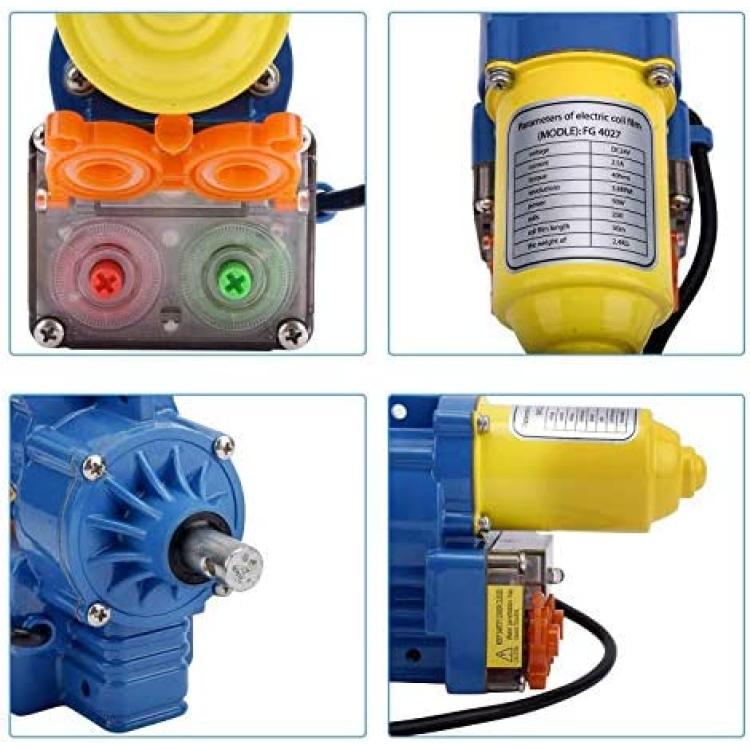

Specifications:
Voltage: DC24V
Current: 2.5A
Torque: 40N.m
Revolution: 3.8RPM
Power: 50W
Rolls: 25R
Roll Film Length: 50m
Weight: 2.4KG

HOW TO INSTALL:
1. Tighten the roll tube with the product by bolts.
2. Fix the film on the film tube through the solid film clamp, keeping the film tube in line with the output shaft of the product.
3. After fixing and starting the winder power supply, the film can be opened and closed.

Note:
One motor for one side ventilation,need the controller with switch to turn motor on/off,and adjust the direction of rolling.
