UYGALAXY Top Roll Up Motor System, 2 Pack Electric Greenhouse Film Roll Up Motors + Transformer Timer Controller Joint Box(AC110V to DC 24V) for Roof Greenhouses Ventilation, Automatic Venting Kit

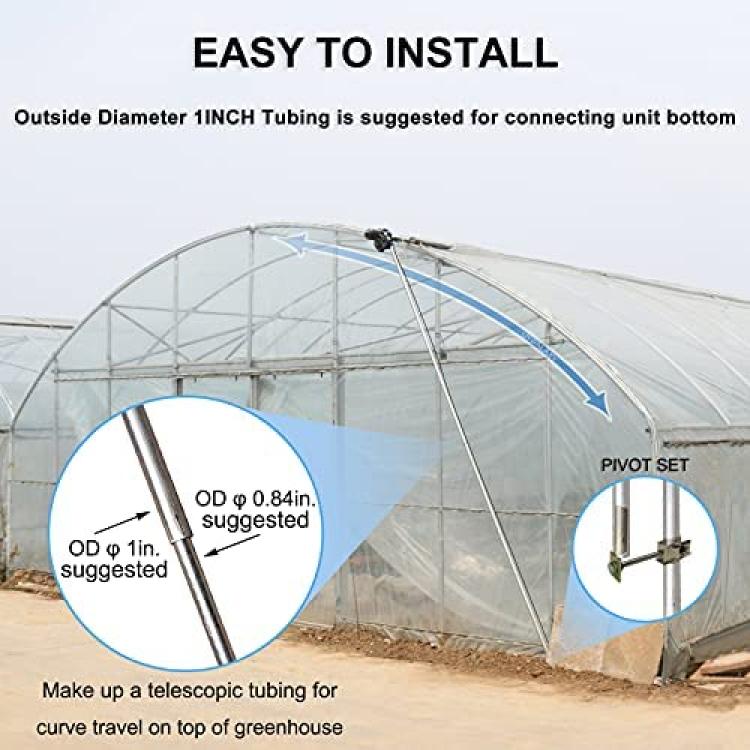

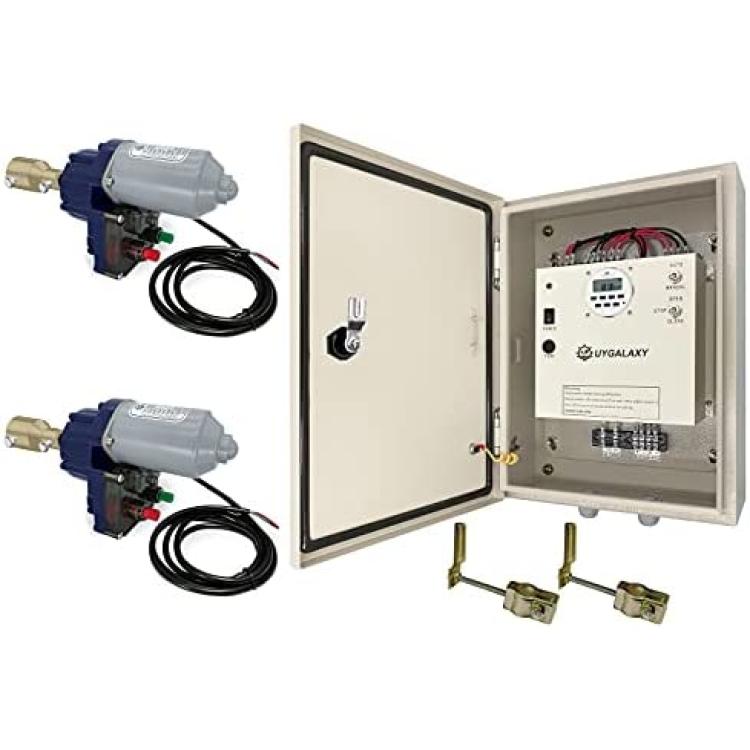

1* Timer Electric Box2* Roll Up Motors2* Pivot sets2*Roll bar adaptors5*Screws of M8x251*Bolt of M6x551*Nut of M6 Suggest OD35mm roll tube and climbing tube Suggest OD25mm tube for pivot set OD: Outside Diameter Roll Tube Size: 5ft~360ftPower: 100 wattAdjust Roll: 40 limitsVoltage: DC 24vSpeed: 2.8 rpmRated Current: 4.0ATorque: 80 N.mProtection Class: IP66 Max roll tube length: 360ft(110m) Climb 19ft height when OD 35mm roll bar OD 1 3/8inch Top rail for roll bar is suitable The motor would stop once hitting the limit switch Fits for OD 1-3/8" top rail galvanized tubing.19ft travel, which decided by the outer diameter of tubing.Use "32mm Snap Clamps" for fixing film.Fits for OD 1" galvanized tubing.Needs to telescope another suitable size of tubing, so the rotation bar has a enough length to make roll up bar tightly slide along the roof flame .The new version roller adapts new design, instead of the waterproof lid ( both ok for upper water resistance ).Press the knob and rotate it for setting limits, its invalid without press downInput: AC 110VOutput1: DC 24VOutput2: DC 24VJoint box: 300W Transformer + programmable timerSize: 15.7*11.8*5.51inch10A fuse for two channels of output.Please install it inside the house.The product is with timer, its main for controlling the motors unattended. Swith1: ON/OFF Fuse: 10A Press to reset Toggle1: Auto/Manual Toggle2: Open/Stop/Close Window by hand Switch Style: Maintained (switch the toggles, the motors will keep running until limit is reached.) Set the local timeSet the time of ON(open)/Off(Close)Set it as auto modeIndividual grounding bar (the red flag)Please carefully if wire it, make sure you are using grounding wireOr easily connect a wire between the metal shell and the earthIP66 waterproof protection class.Compact size and low noise, easy installation.Can side of the roll, also can top roll.Roll up tube length from 5~360ft, climb 19ft height when (Outside Diameter) OD 35mm roll tube.Setting the limit switches on hoop house roll up ventilation motors, roll up motor and pivot set work perfectly togetherAfter the installation of the roll up motor, be sure to the roll film bar is at a right angle to the pivot support bar.Its suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included.
