Description

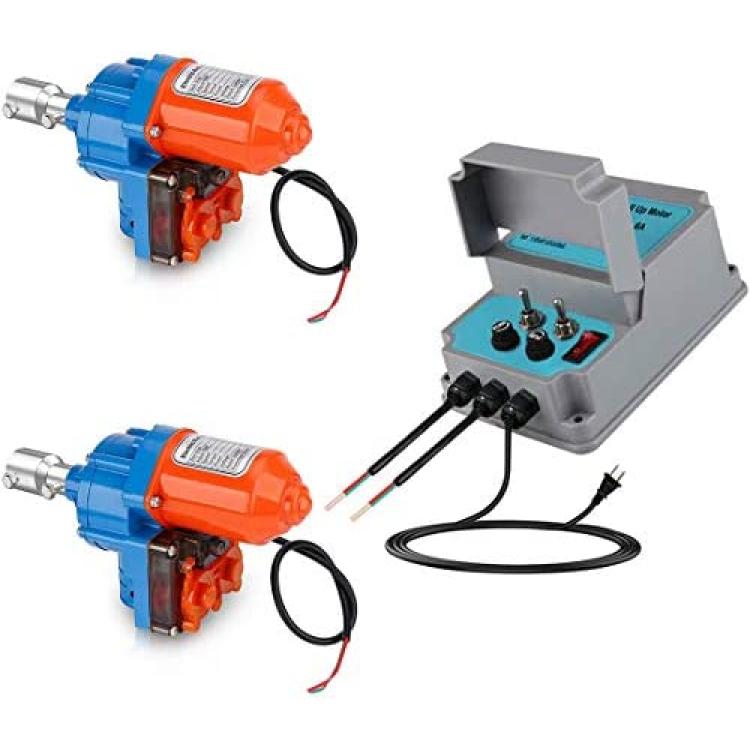

1* Joint Box (transformer+Controller)2* Roll Up Motors1*Roll bar adaptor1*Telescope bar adaptor5*Screws of M8x251*Bolt of M6x551*Nut of M6
Suggest ID 3/4" NPS roll tube and telescope tube Roll Tube Size: 5ft~360ftPower: 100 wattAdjust Roll: 40 limitsVoltage: DC 24vSpeed: 2.8 rpmRated Current: 3.6ATorque: 100 N.mProtection Class: IP66

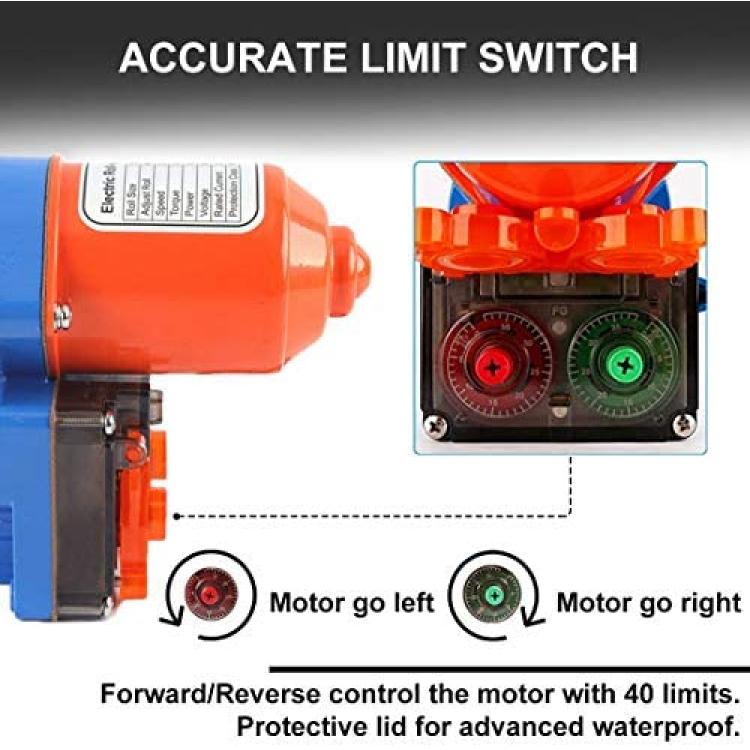

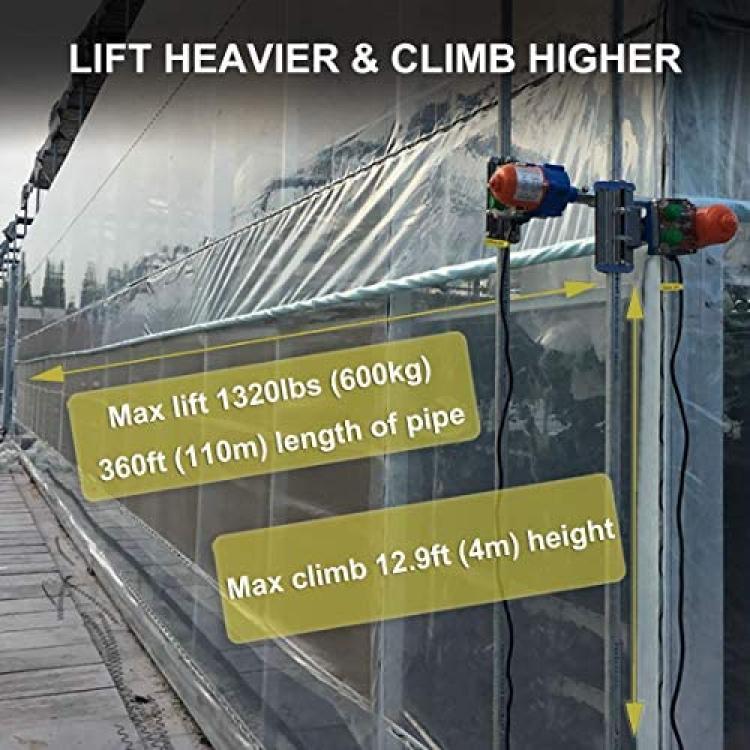

Max roll tube length: 360ft(110m) Climb 10ft height when ID 1/2" NPS roll bar tube Climb 12.9ft height when ID 3/4" NPS roll bar tube Max lift 1320lbs (600kg) The original bronze color adapter fits for ID 3/4" NPS(DN20mm) galvanized tubing, roll bar travel is 12.9ft.Insert the blue shaft washer helps to fit for ID 1/2" NPS(DN15mm) galvanized tubing, roll bar travel is 10ft.Fits for OD 1" galvanized tubing (or ID 3/4" NPS).Needs to telescope another suitable size of tubing, so the rotation bar has a enough length to make roll up bar tightly slide along the roof flame.Press the knob and rotate it for setting limits, its invalid without press down.The waterproof lid to keep upper water resistance, please close it after setting up the limit switches.Knob: FusesSwith1: ON/OFFSwith2:
Open/Stop/Close Window Switch Style: Maintained (switch the toggles, the motors will keep running until the limit is reached.) Input: AC 110VOutput: DC 24VPlug wire (input) length: 4.75ftBare wire (output) length: 1.6ftJoint box: Transformer + controlSize: 9 x 6 x 3.8 inches
1.The motor with limit switch would stop once hitting the limit. 2.Two 10A fuses for two channel of outputs. 3.Please install it inside the house. 4.The product is without timer, its main for transforming the voltage and controlling the motors. IP66 waterproof protection class.Compact size and low noise, easy installation.Roll up tube length from 5~360ft, climb 10ft height when ID 1/2" NPS roll tube, climb 12.9ft height when ID 3/4" NPS roll tube.Setting the limit switches on hoop house roll up ventilation motors, roll up motor and climber work perfectly togetherAfter the installation of the roll up motor, be sure to cover the waterproof cover to prevent water.Its suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included.
