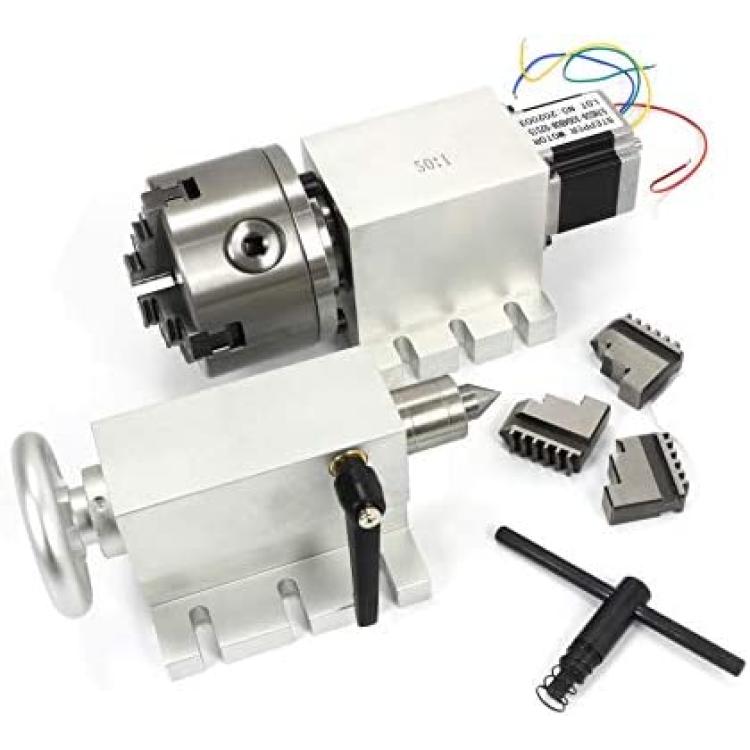

Rotational 4th Axis A axis Rotary table Fourth axis 3 Jaw Chuck Gapless harmonic reducer gearbox stepper motor K11-100mm dividing head with 65mm Tailstock for CNC Router Engraving Milling Machine
About this product

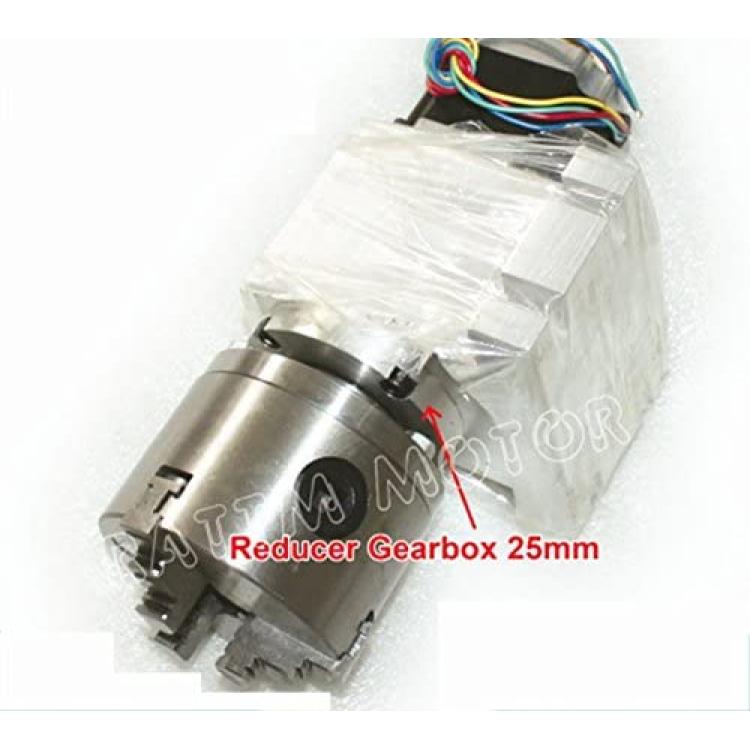

*Chuck Type:Gearbox K11-100mm 3 Jaw Chuck;Zero Backlash with Gapless harmonic gearbox reducer
*Stepper motor: Nema23 2-phase 57 stepper motor

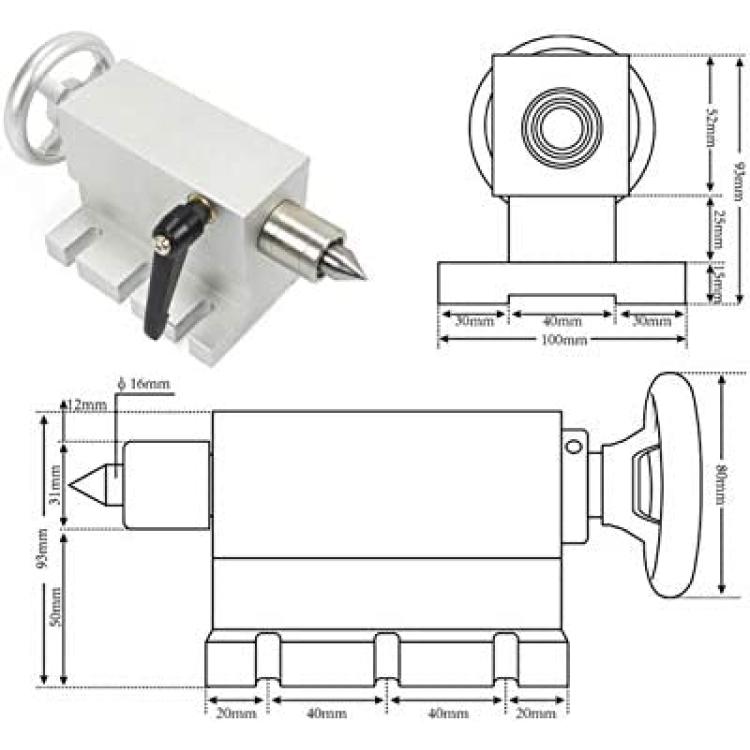

*Center height: 65mm;Total height: 115mm
*Reducing ratio:50:1 (only have 50:1 type)
*Accessories: Set of Anti-claw and wrenches
Description
Step Angle: 1.8 degreeHolding Torque: 1.2NmPhase Resistance: 1ohmsPhase:2 phaseCurrent:3AShaft Diameter: 6.35 mmInductance:2.8mH+/-20%Frame Size: 57x57x56 mmBody Length: 56mmLead: Red: A+,Green: A-,Yellow: B+, Blue: B-
