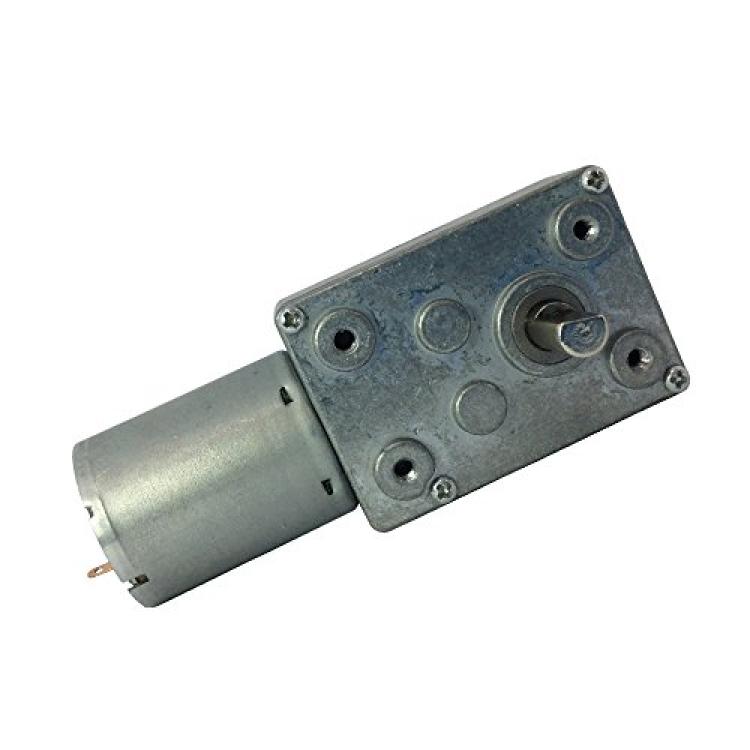

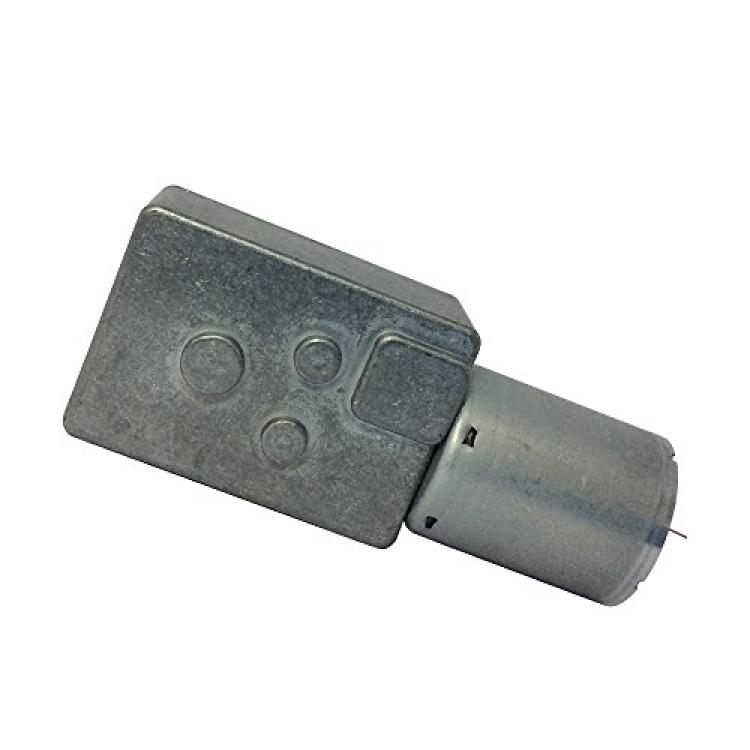

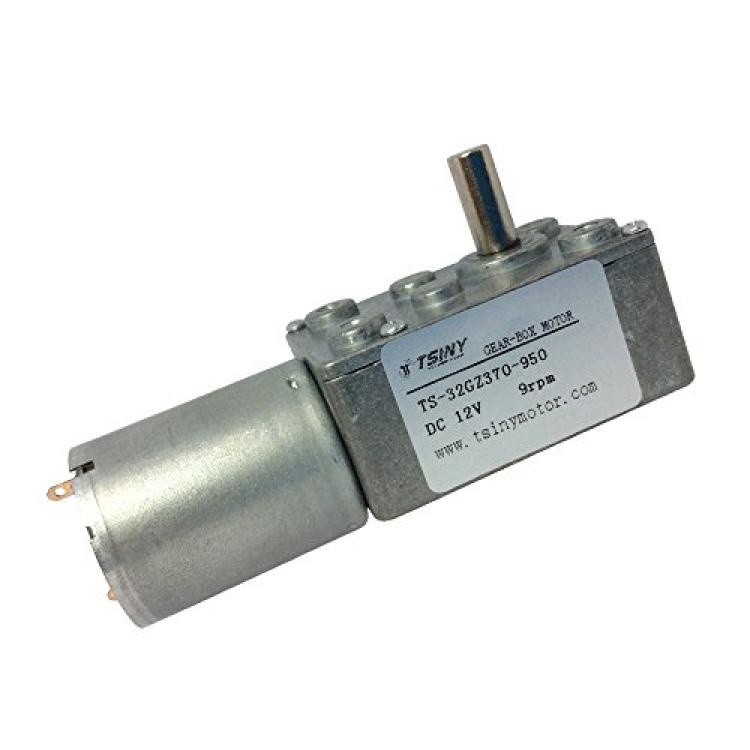

BEMONOC High Torque 12V 9 RPM Motor Small Worm Geared Reducer Motor with Metal Gear Box
Availability: Pre-Order, Inquiry Price
About this product
*✔Rated voltage: DC12V; No-load speed: 9 RPM; Rated torque: 8.5kg.cm; Rated Current: 0.3A;
*✔Reduction ratio: 1/950; Protection class: IP54; Low noise: db
*✔Gear Motor Body Dimensions: 3 x 1.25 x 1.06inches(L*W*H); Out Shaft Dimensions: 0.53*0.23inches(L*D) with 0.047*0.43inches flat cut off;
*✔Usage: Windows and Doors, Car, Boat and Robot model, Industry application, house application, home automation, mini winch and other occasions;
*✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.
Description
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:
(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.
(2)Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size.
