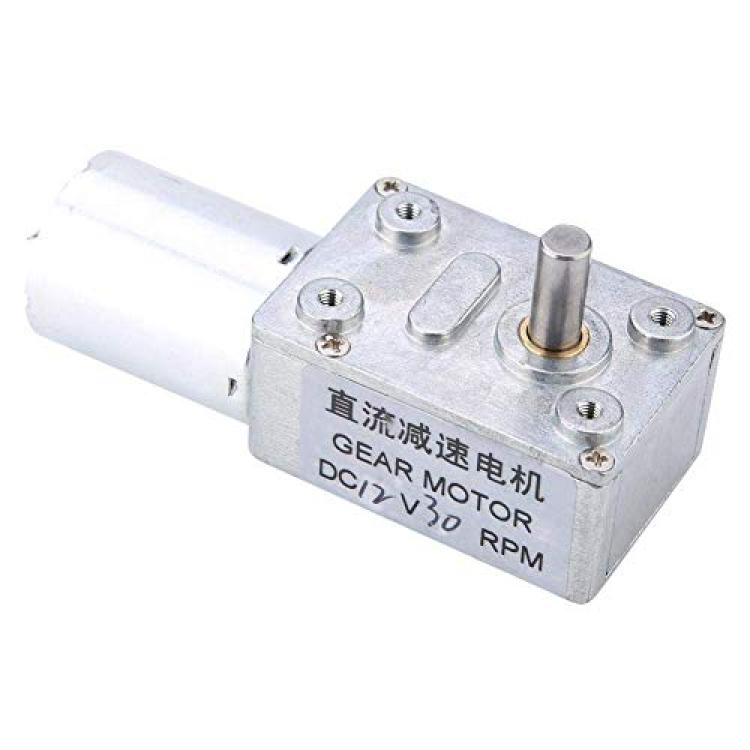

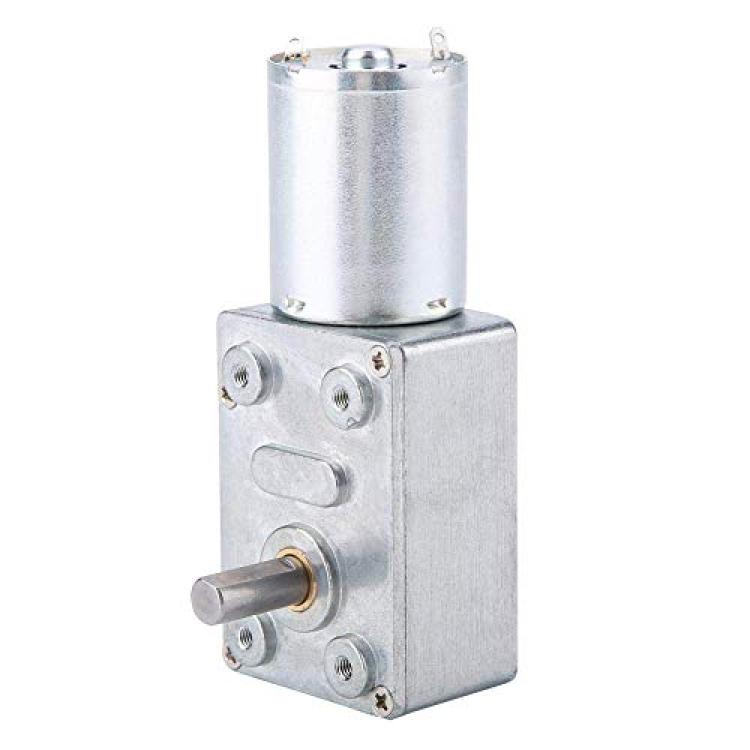

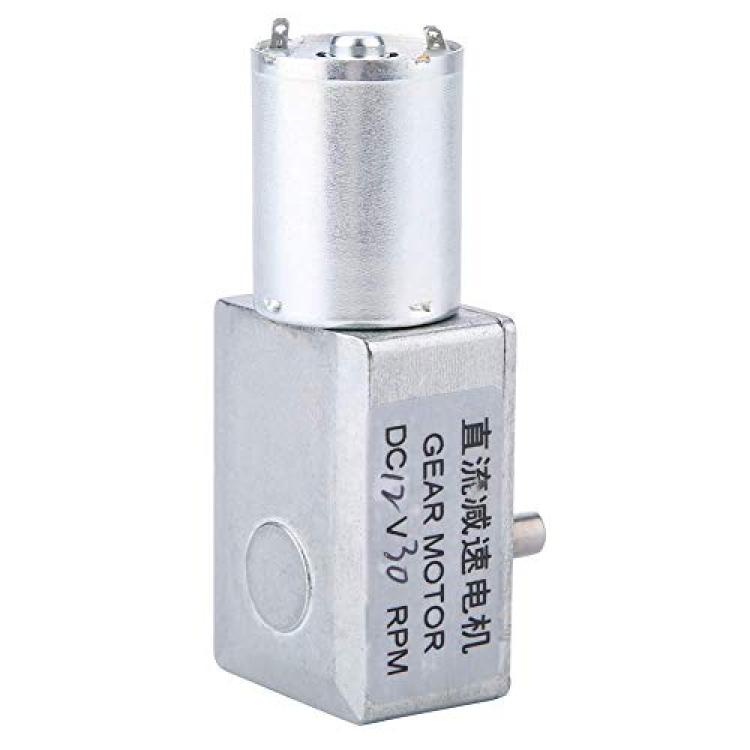

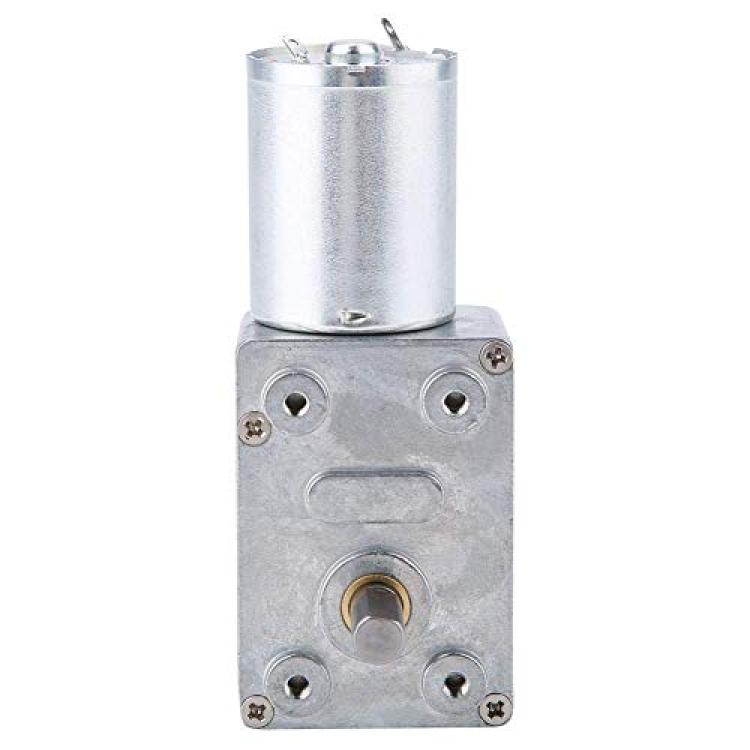

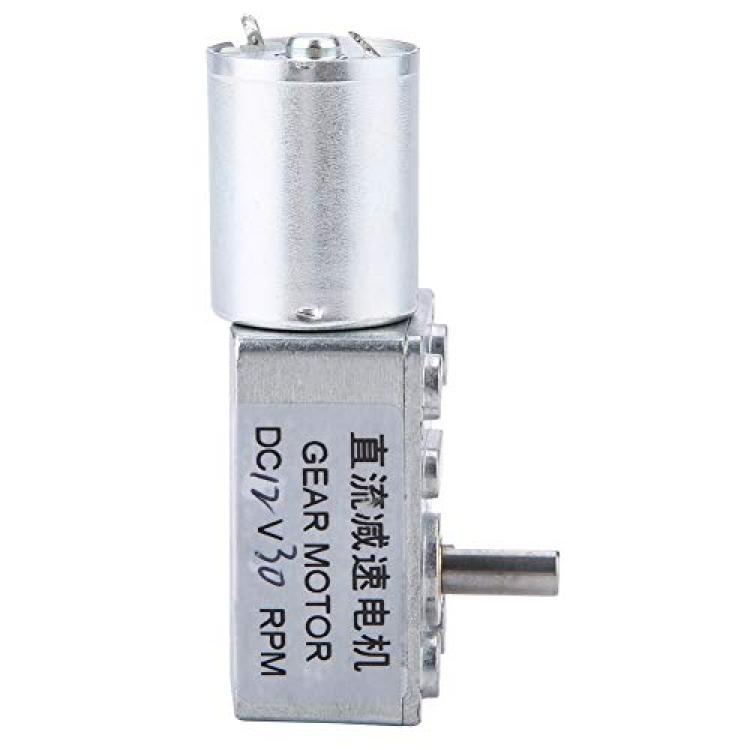

12V DC 2-100RPM Metal Gear Motor High Torque Turbine Turbo Worm Geared Reduction Electric Motor Worm Reducer
Availability: Pre-Order, Inquiry Price
About this product
*SAFETY: The worm gear motor with self-locking, ie, in the case in the absence of electric motors, the output shaft is not to move, that is self-locking
*GEAR: The gearbox output shaft direction of the motor shaft is arranged vertically
*FEATURE: The entire body of the motor output shaft relative to the general direction of gear motor short widely adapted to some of the installation dimensions of this aspect is required
*APPLICATION: Widely used in windows, a door opener, miniature winch and other occasions
*PACKAGE CONTAIN: 1 x geared motor
Description
Specifications:
Voltage: DC12V
Load torque: 10KG.CM
No-load speed choice : 2rpm / 3rpm /5rpm/ 6rpm/ 10rpm/ 20rpm / 30rpm/ 62rpm / 100rpm
Speed(RPM)
Stall Torque(kg.cm)
Stall Current(A)
No-load Current(A)
Reduction Ratio 5 36.4 0.82 0.12 1:972 6 36.4 0.82 0.12 1:972 20 28.2 1.14 0.22 1:400 40 15 1.15 0.31 1:224 62 16 2.52 0.41 1:224
Suitable for: Widely used in windows, a door opener, miniature winch and other occasions.Â
Features:
The entire body of the motor output shaft relative to the general direction of gear motor short widely adapted to some of the installation dimensions of this aspect is required
Package contain:Â
1 x geared motor
