power:3KWhorsepower:4HPInput :220VAC(+/-5%) 1 or 3 phase
(for single-phase input, just connect the input wire to the R and S terminals)output voltage: 3 phase 220voutput frequency:0-50/60Hz,0-400hzoutput Current:13ADrive
50hz motor?Set pd013=8 (factory set and the VFD is set to 50Hz by default),pd002=1 ,pd070=1Drive
60hz motor?pd013=8,pd005=60,pd004=60, pd003=60,pd072=60,pd144=3450,pd002=1 pd070=1Unlike other inexpensive VFDS, this VFD has two sets of terminal functions,Rich of digital and analogy control terminals for versitile control,optional MODBUS (RS485) extension,diversified parameter setting.supports external potentiometer control
(connect the "FOR" and "DCM" terminals,than set PD001=1)supports mcah3 function and RS-485 communication

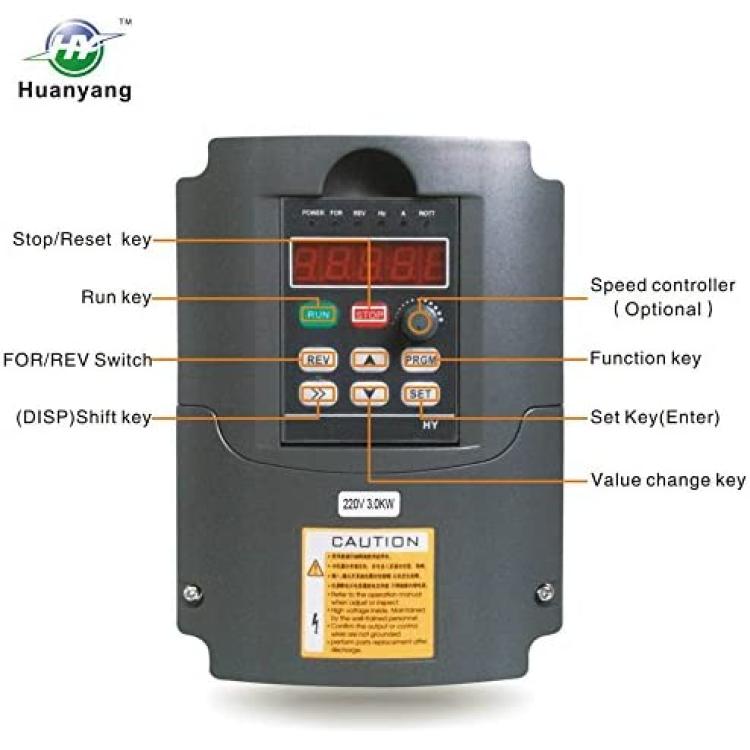

(For more information, you can contact the seller, we will send you a video of the basic functions of VFD)UP: Progressively increase data or function codes.
DOWN: Progressively decrease data or function codes.
SET: Enter menus step-by-step, save setting parameters.
PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction
SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
Kindly Note: If you want to show RPM in the display,please press SHIFT keyPID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitabilityEasy PLC function can realize 16 legs of speed and inverter control functionRS485 communication port, adopting standard international MODBUS main circuit controlWith extremely strong anti-jamming capabilityLow output ratting torque0.5HZ-150%, low speed running abilityCarrier adjustable by 16KHZ, completely soundless working environmentBroad voltage working area, normal running in 304V-456VAuto voltage regulation (AVR) technique, for ensuring the inverter load capabilityWith perfect error protection and short circuit starting protection capabilitySpindle motor,CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines
