Description

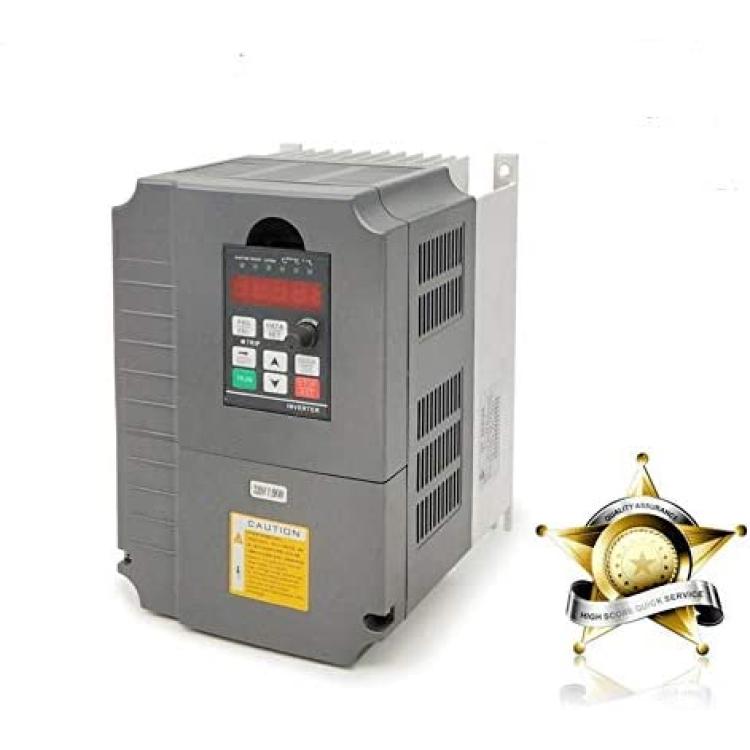

Suitable motor: <7.5KW (10HP)Input :220VAC(+/-5%) 1 or 3 phase
(for single-phase input, just connect the input wire to the R and S terminals)Output : 3 phase 220vOutput frequency:0-50/60hz 0-400hzOutput current:34ADC cooling fan low noise, large air volume help vfd heat dissipation, improve product stabilityAluminum base: This ensures the stability of the product and increases the heat dissipation capacity of the fan
UP: Progressively increase data or function codes.
DOWN: Progressively decrease data or function codes.
DATE/SET: Progressively enter menu and confirm parameters
PRG/ESC: enter or eacape from the first level menu
SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
QUICK/JOG:Determined by function code P7.03=
(0:Display stautsa switching,
1:jog operation
,2:switch between forward and reverse,
3:Clear the up/down terminals settings,

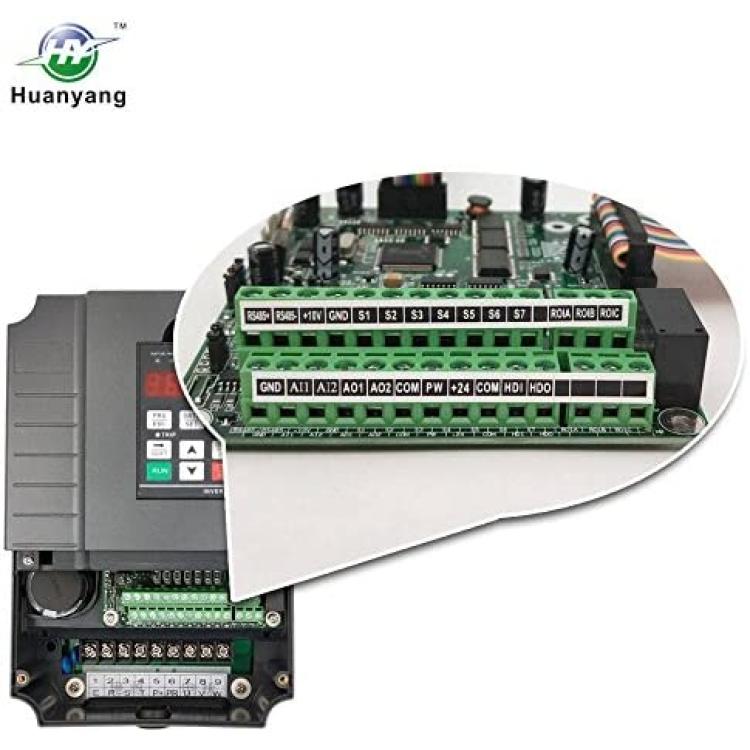

4:Quick debugging mode)Unlike other inexpensive VFDS, this VFD has two sets of terminal functions,Rich of digital and analogy control terminals for versitile control,optional MODBUS (RS485) extension,diversified parameter setting.Adopt DSP vector control to enable motor to achieve high torque in low speed rotati
Support external potentiometer for remote control.?"COM" and "S1" terminal connection switch. then set P0.01=1?supports mcah3 function and RS-485 communicationSupport brake resistance installation function, faster motor brakingPID control;advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;Easy PLC function can realize 16 legs of speed and inverter control functionRS485 communication port, adopting standard international MODBUS main circuit controlWith extremely strong anti-jamming capabilityLow output ratting torque 0.5HZ-150%, low speed running abilityCarrier adjustable by 16KHZ, completely soundless working environmentBroad voltage working area, normal running in 304V-456VAuto voltage regulation (AVR) technique, for ensuring the inverter load capabilityDead-time compensation and auto torque slip compensation function, can realize 180% high orque output at low frequency 0.25Hz
