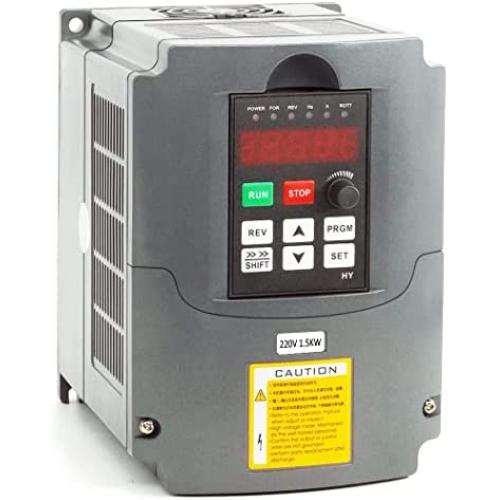

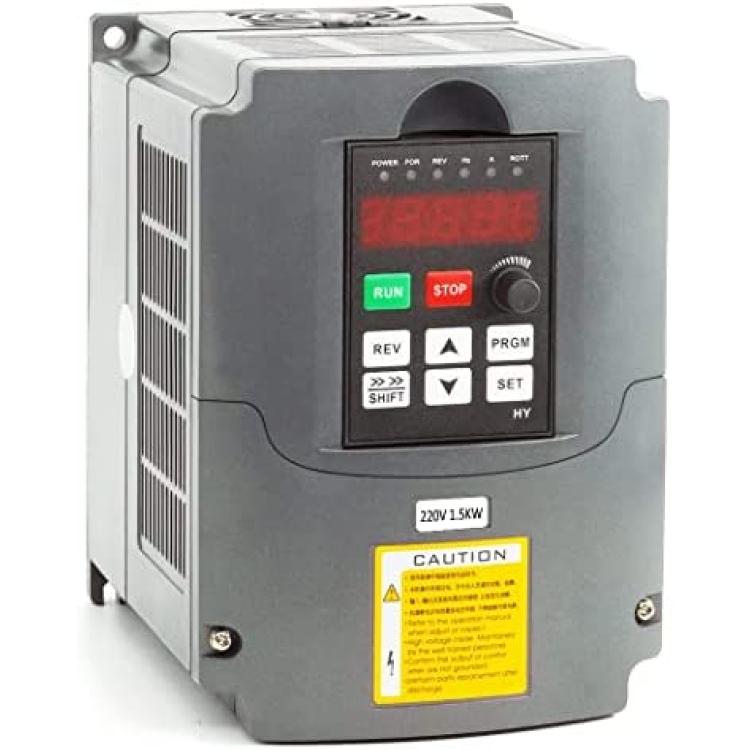

Huanyang VFD,Single to 3 Phase,Variable Frequency Drive,1.5kW 2HP 220V Input AC 7A for Motor Speed Control,HY Series

power:1.5KWhorsepower:2HPinput voltage:220v 1 or 3 phase (If input is 240V+, please inform before purchase,this requires factory customization)output voltage: 3 phase 220vOutput frequency: 0-50Hz /60Hz 0-400Hzinput Frequency: 47-63HzDrive 50hz motor?Set pd013=8 (factory set and the VFD is set to 50Hz by default),pd002=1 ,pd070=1Drive 60hz motor?pd013=8,pd005=60,pd004=60, pd003=60,pd072=60,pd144=3450,pd002=1 pd070=1UP: Progressively increase data or function codes.DOWN: Progressively decrease data or function codes.SET: Enter menus step-by-step, save setting parameters.PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation directionSHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.Kindly Note: If you want to show RPM in the display,please press SHIFT keyPID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitabilityEasy PLC function can realize 16 legs of speed and inverter control functionRS485 communication port, adopting standard international MODBUS main circuit controlWith extremely strong anti-jamming capabilityLow output ratting torque0.5HZ-150%, low speed running abilityCarrier adjustable by 16KHZ, completely soundless working environmentBroad voltage working area, normal running in 304V-456VAuto voltage regulation (AVR) technique, for ensuring the inverter load capabilityWith perfect error protection and short circuit starting protection capabilitySpindle motor,CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines
