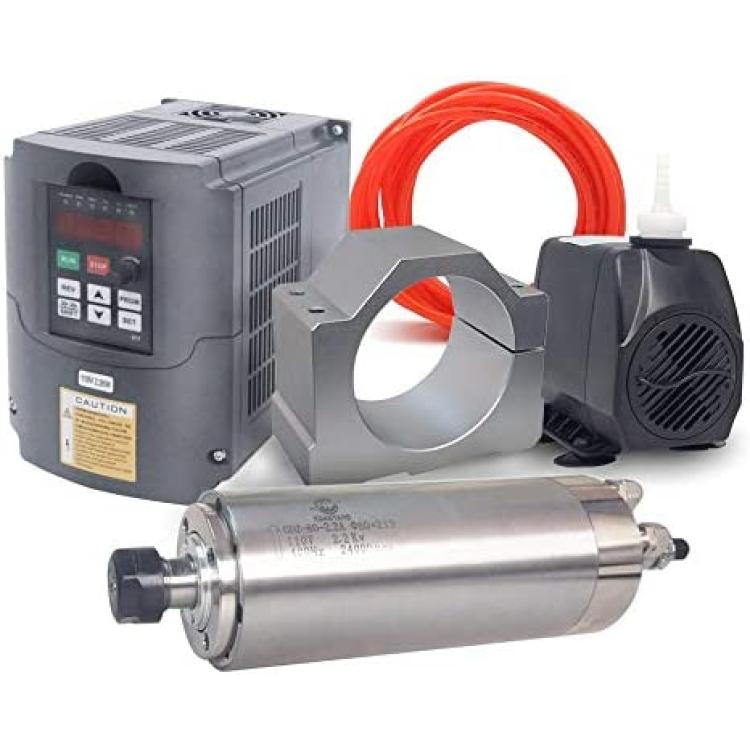

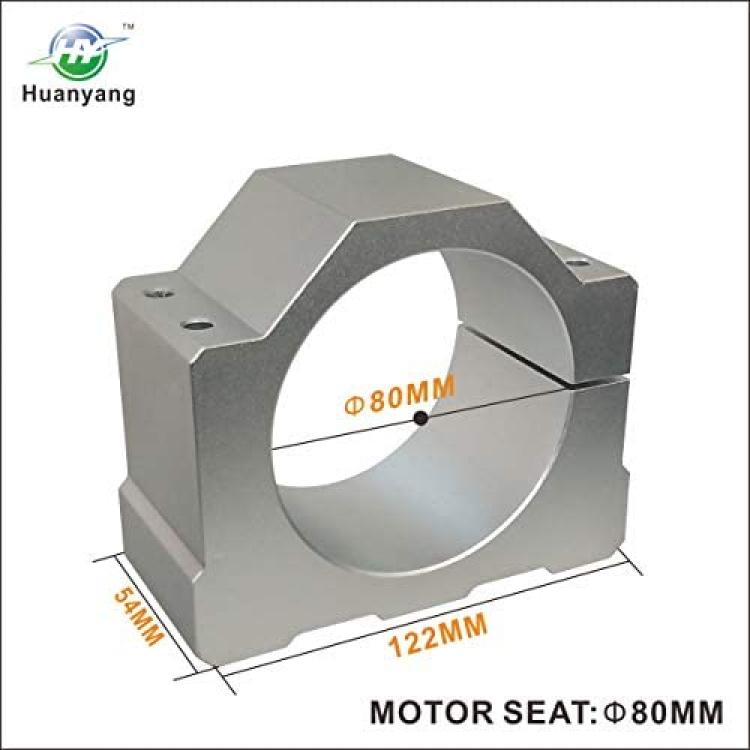

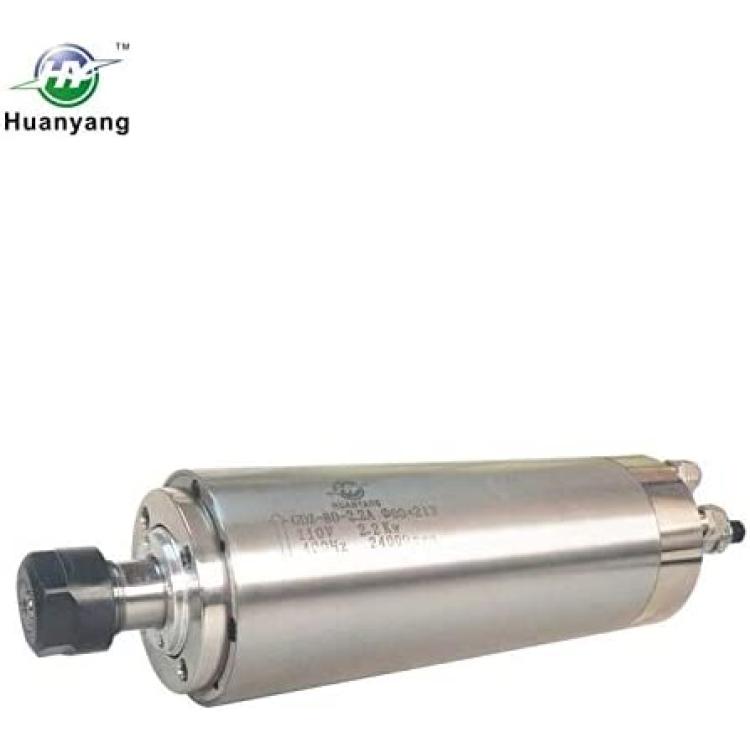

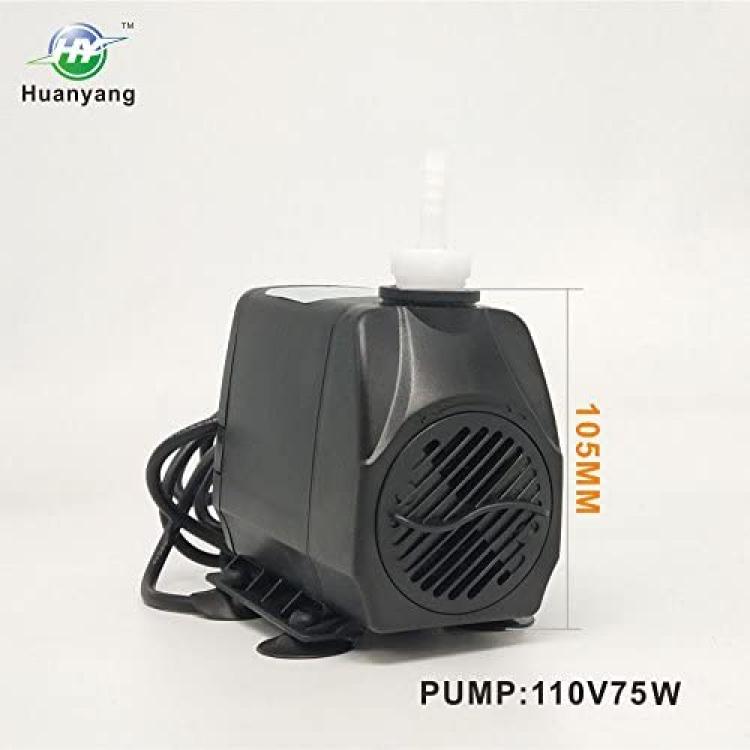

1 X 110v input 2.2kw vfd ?comes with a manual?1 X water Cooled 110V-2.2KW 4bearings ?80mm 400hz spindle (come with a 6mm collet)Adopt high quality aluminum,the surface is oxidized polished, very smooth,safe to use.the accuracy is much higher , and it is hard to deformAC:110v-120V/50HZ 75W Hmax:3.2 QmaxFlow Rate:3200L/H Waterproof Grade:IPX8Easy to detach and cleanDesigned with a adjusting knob, allowing to adjust the water flow rate.Rubber suction cups can be a good fit in the glass surface, to help keep it stability.Power:2.2KWHorsepower:3HP
Input voltage: 1 phase 110V(±
15%)Output voltage:110V 3 phaseInput Frequency: 47-63Hz
Output frequency:0-50/60hz 0-400hzOutput current:20ABearing: 7005 (2pcs)and 7002(2pc) bearingsVoltage and rated current: AC 110V, 20AOperating speed:8000rpm-24000rpmRadial runout:?0.025mm clamping mandrel vibrates at 30mm to nutFrequencies: 400HzSize:80*213 (mm)Collet: ER20 collet, 6mm is standardNut model: ER20-A(B)The single-phase input wire is connected to the R and T terminals, and the motor output wire is connected to the UVW terminal of the VFD.Basic parameters for 400hz spindle?pd013=8?pd005=400,pd004=400 pd003=400 pd072=400?pd144=3000, pd002=1 pd070=1?pd008=110
(All VFD parameters are set before delivery,so you can connect and drive directly after you receive the kit)Supports external potentiometer control
(connect the "FOR" and "DCM" terminals,than set PD001=1)Supports mcah3 function and RS-485 communication
(For more information, you can contact the seller, we will send you a video of the basic functions of VFD)UP: Progressively increase data or function codes.
DOWN: Progressively decrease data or function codes.

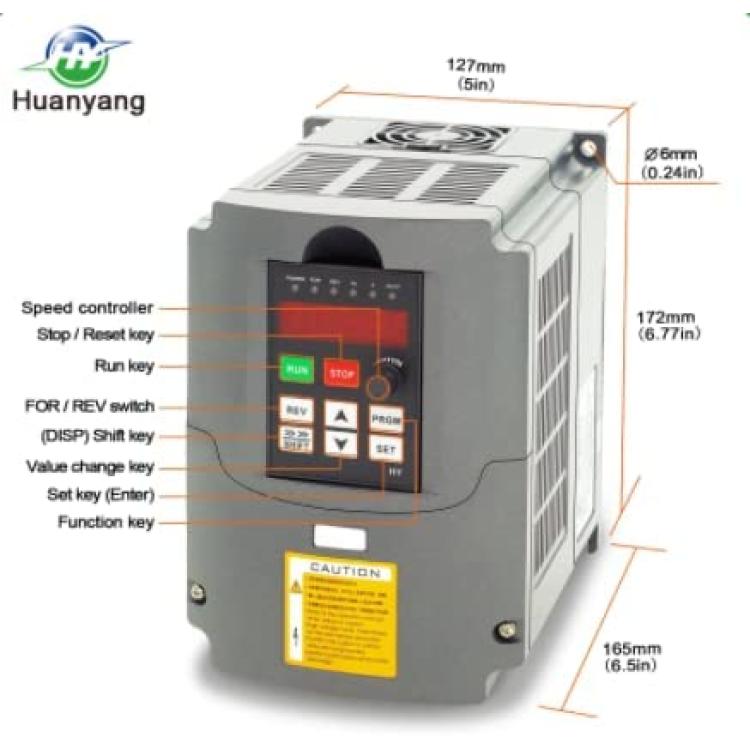

SET: Enter menus step-by-step, save setting parameters.
PRGM: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.
FWD/REV: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction
SHIFT: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.
Kindly Note: If you want to show RPM in the display,please press SHIFT keyPID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitabilityEasy PLC function can realize 16 legs of speed and inverter control functionRS485 communication port, adopting standard international MODBUS main circuit controlWith extremely strong anti-jamming capabilityLow output ratting torque0.5HZ-150%, low speed running abilityCarrier adjustable by 16KHZ, completely soundless working environmentBroad voltage working area, normal running in 304V-456VAuto voltage regulation (AVR) technique, for ensuring the inverter load capabilityWith perfect error protection and short circuit starting protection capability
