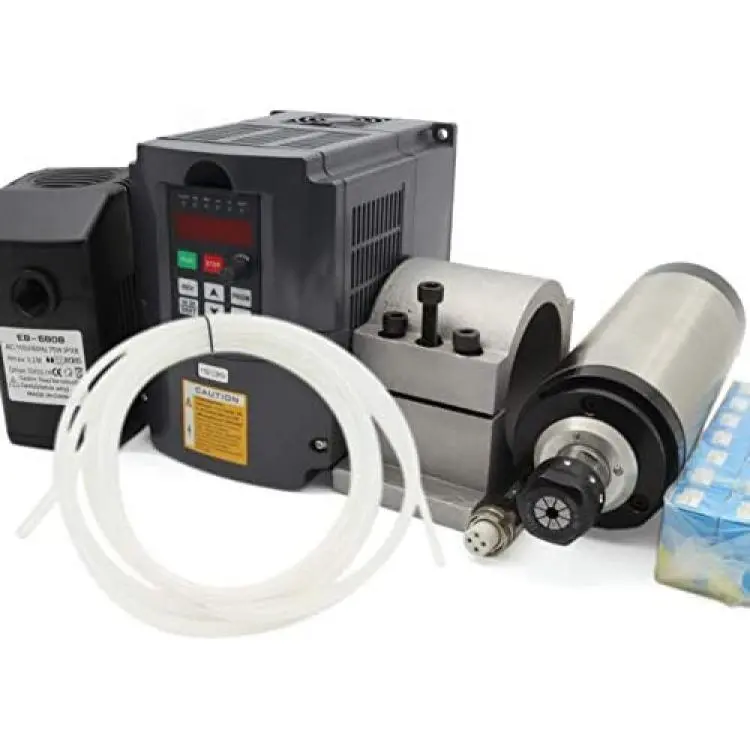

2.2KW Water Cooled Spindle Motor ER20 24000rpm 400Hz+2.2KW VFD Inverter Variable Frequency Driver 110V+80mm Clamp+80W Pump+6m Pipe+14pcs Collet CNC Kit for CNC Router Engraving Milling Machine

Package include:

Package include:

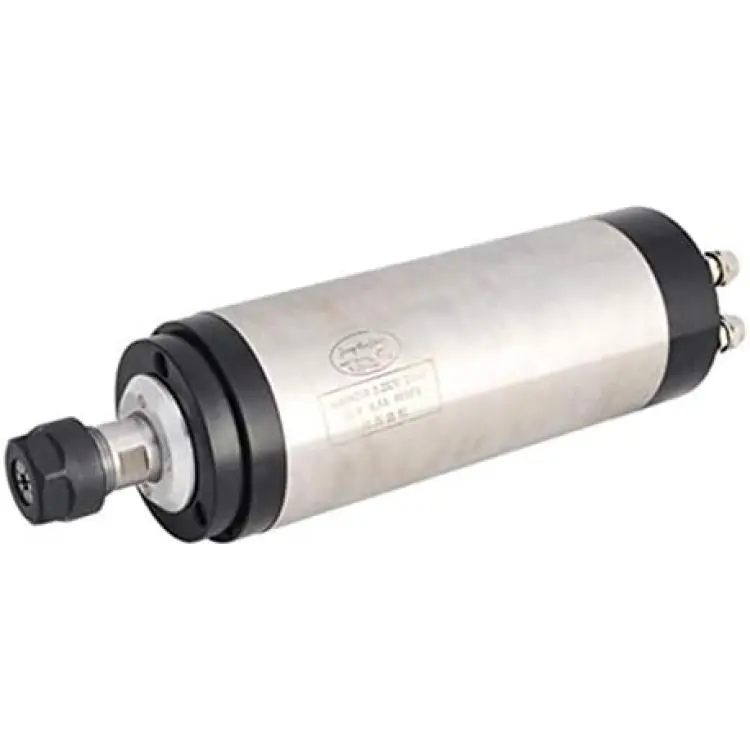

2.2KW 110V Water cooled spindle motor

Material: Stainless Steel

Material: Stainless Steel

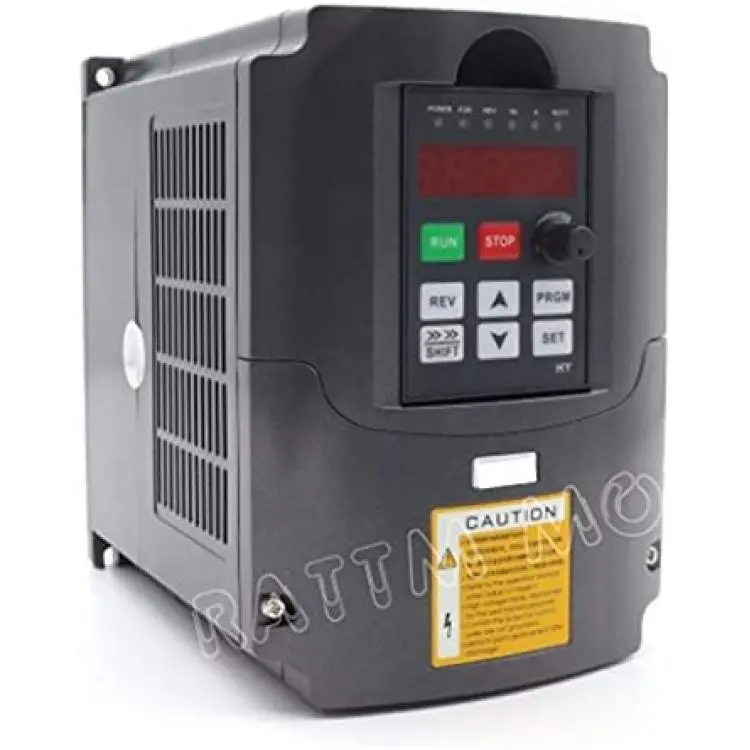

1) Input Voltage: 110V(+/-15%) ,

1) Input Voltage: 110V(+/-15%) ,

2) Output Voltage 100V/AC-120V/AC

2) Output Voltage 100V/AC-120V/AC

3) Input Frequency: 48-63 Hz

3) Input Frequency: 48-63 Hz

4) Output Frequency: 0-400 Hz

4) Output Frequency: 0-400 Hz

5) Input Phase: 1 phase

5) Input Phase: 1 phase

6) Output Phase: 3 phase

6) Output Phase: 3 phase

7) Output Current: 20A

7) Output Current: 20A

8) Model:HY02D211B

8) Model:HY02D211B

9) Horsepower:3HP

9) Horsepower:3HP

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)With extremely strong anti-jamming capability

3)With extremely strong anti-jamming capability

4)Low output ratting torque0.5HZ-150%, low speed running ability;

4)Low output ratting torque0.5HZ-150%, low speed running ability;

5)Carrier adjustable by 16KHZ, completely soundless working environment;

5)Carrier adjustable by 16KHZ, completely soundless working environment;

6)Broad voltage working area, normal running in 100V-120V;

6)Broad voltage working area, normal running in 100V-120V;

7)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

7)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

8)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

8)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

9)With perfect error protection and short circuit starting protection capability;

9)With perfect error protection and short circuit starting protection capability;

10)A potentiometer can be used to adjust to the rotation speed you want.(Speed range: 0-24000rpm)

10)A potentiometer can be used to adjust to the rotation speed you want.(Speed range: 0-24000rpm)

11)7)supports external potentiometer control,supports mcah3 function and RS-485 communication

11)7)supports external potentiometer control,supports mcah3 function and RS-485 communication

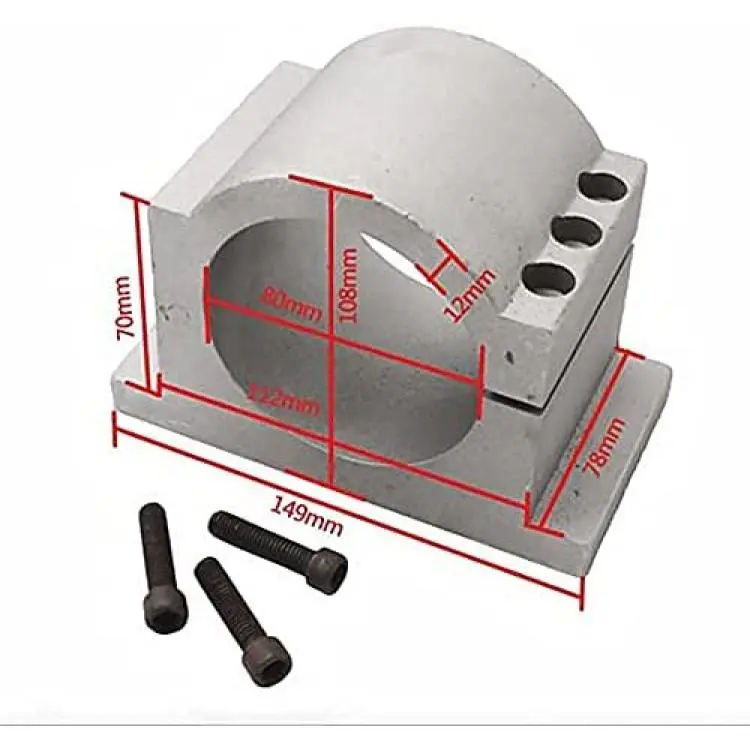

80mm clamp cast aluminium bracket

Diameter: 80mm

Diameter: 80mm

Material: High quality cast aluminum (strength is higher than aluminum alloy)

Material: High quality cast aluminum (strength is higher than aluminum alloy)

Screws:come with 3pcs installation screws

Screws:come with 3pcs installation screws

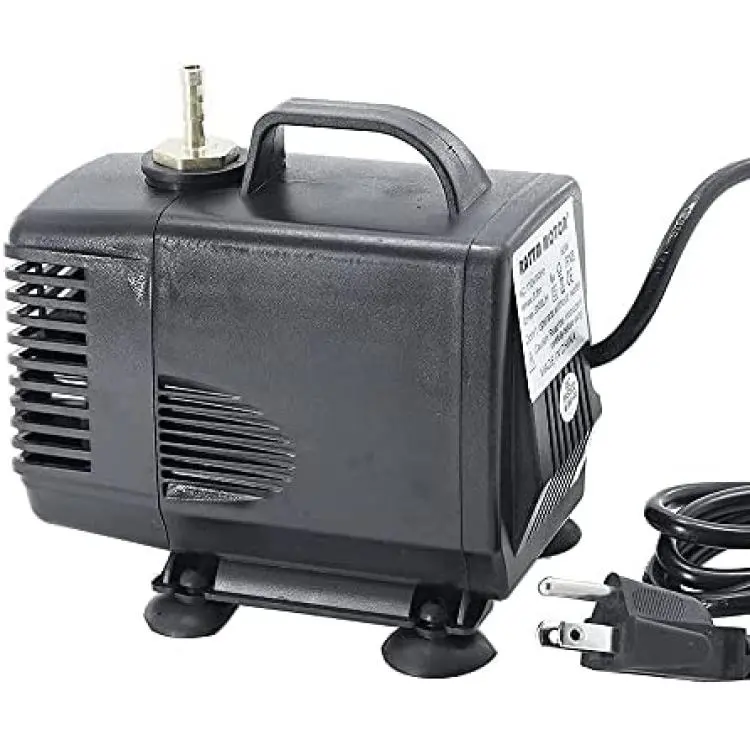

Specification:

Specification:

Pump lift length: 3.5m

Pump lift length: 3.5m

Voltage:105-125VAC

Voltage:105-125VAC

Power:75W

Power:75W

Flow:3500L/H

Flow:3500L/H

Size: 153x88x108mm

Size: 153x88x108mm

Water nozzle diameter:8mm

Water nozzle diameter:8mm

Rubber suction cups can be a good fit in the glass surface, to help keep it stability

Rubber suction cups can be a good fit in the glass surface, to help keep it stability

Size:

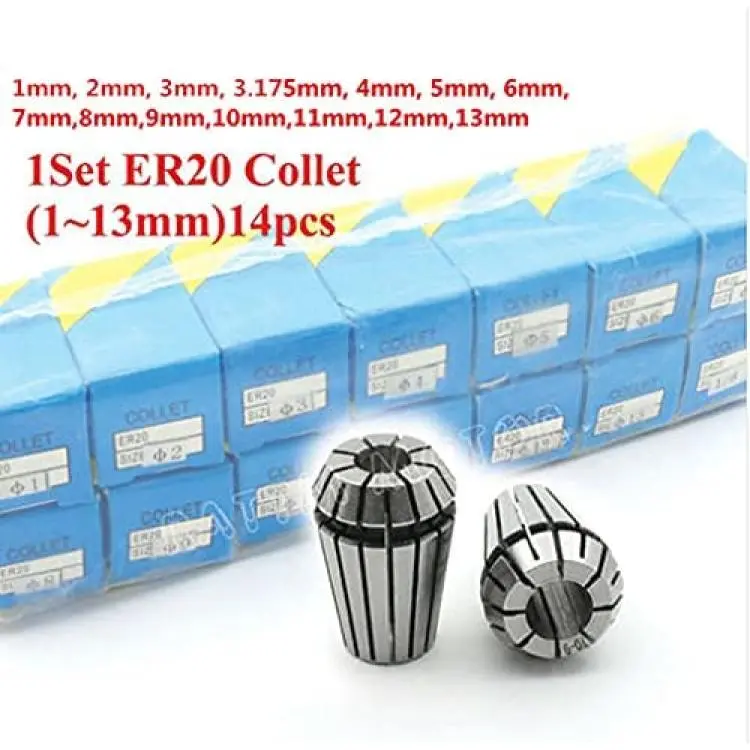

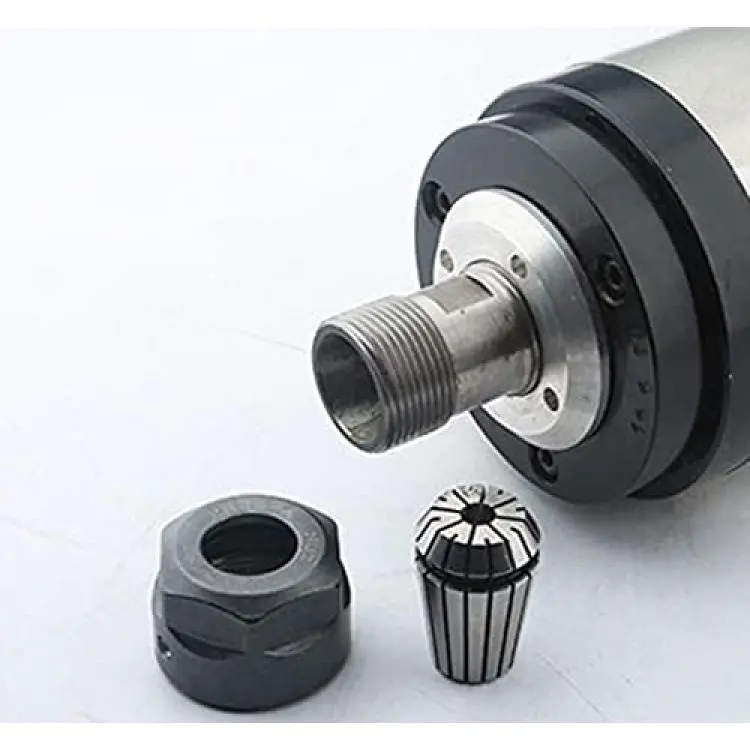

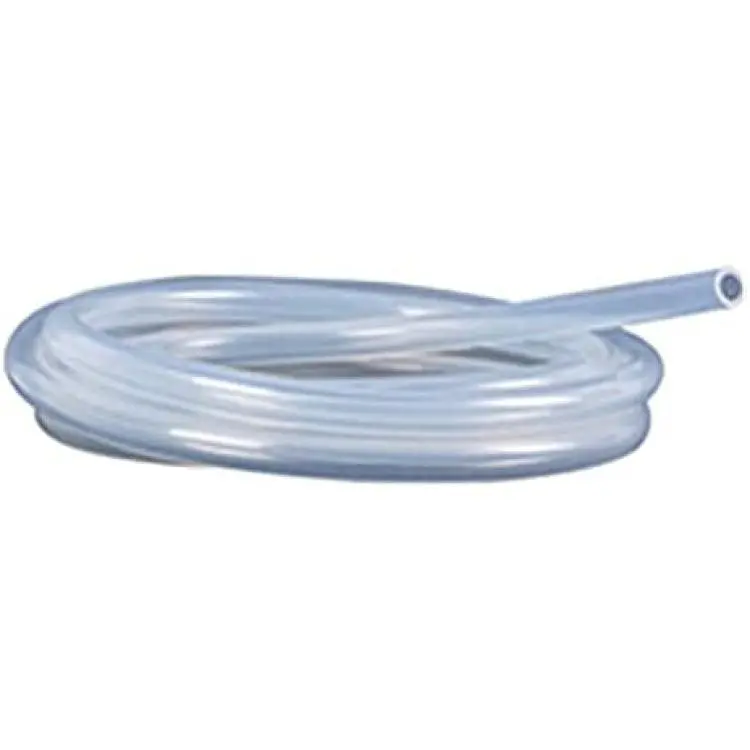

Spindles 1 connect VFDs U Spindles 2 connect VFDs V Spindles 3 connect VFDs W Spindles 4 connect ground UP DOWN SET PRGM FWD/REV SHIFT Kindly Note 1 x 2.2KW Water Cooled Spindle Motor ER20 (80x200mm,110V,400Hz,24000rpm,4 bearings)1 x HY 2.2KW Inverter VFD 110V1 x 80mm Aluminium Bracket Clamp1 x 80W Water Pump1 x 6m Water Pipe1Set 14pcs ER20 Collets (1mm, 2mm, 3mm, 3.175mm, 4mm, 5mm, 6mm, 7mm,8mm,9mm,10mm,11mm,12mm,13mm each 1pcs)English user manual of the inverter: Progressively increase data or function codes.: Progressively decrease data or function codes.: Enter menus step-by-step, save setting parameters.: Exit current(or present) state, switch among each states, mainly used to switch monitoring state, exit to previous menu.: 1, Press momentary button to start,release to stop; 2 Switch the rotation direction: Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position.: If you want to show RPM in the display,please press SHIFT keyOut dia (D1):11.5mmHeight (H):18mmHole dia (D2): 1-13mmRun-out tolerance 0.1mmFirst class 1065 carbon steelHardened and precision ground
