RATTMMOTOR Waterproof Water Cooled 2.2KW CNC Spindle Motor ER20 24000RPM 220V 8A 400Hz Carved Metal Spindle for CNC Router Milling Engraving Machine

About this product

*✅【How to Wire The Spindle Motor】The spindle motors aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverters port U, V, W respectively. Number 4 is the ground wire, no wiring is required.

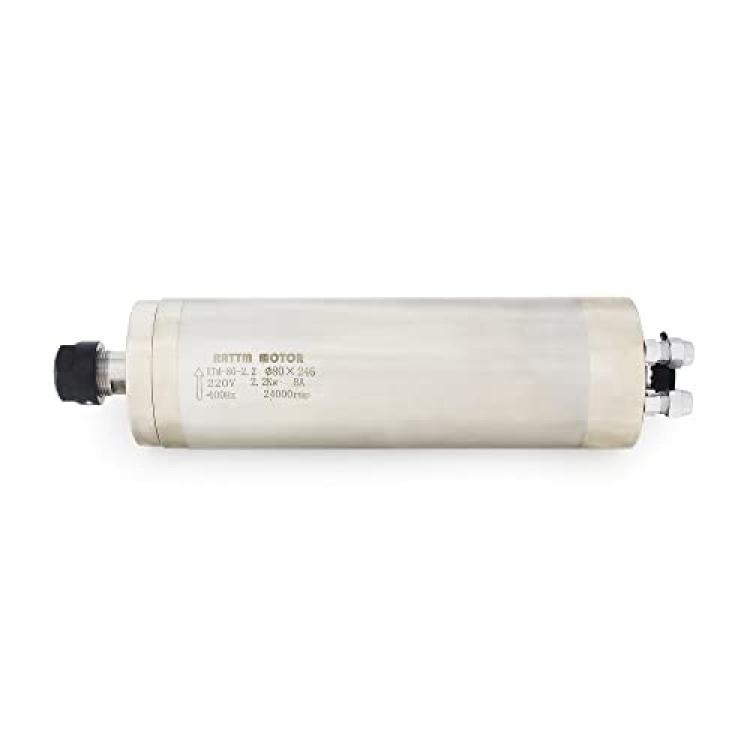

*✅【WATERPROOF Spindle】This is a waterproof 220V-2.2KW water-cooled 8A Φ 80x246mm spindle motor. Frequency is 400HZ, Precision tapered bore 0.01mm and runout off is less than 0.02mm. It is mainly suitable for non-metallic engraving, such as wood carving/engraving machine, advertisement engraving machine,CNC machine.

*✅【24000RPM High Speed】0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle only can rotate clockwise but not counterclockwise.

*✅【4pcs High Quality Bearings】P4 high speed bearing, dynamic balance, better ensure the accuracy of the spindle, powerful power, large torque, stable performance.

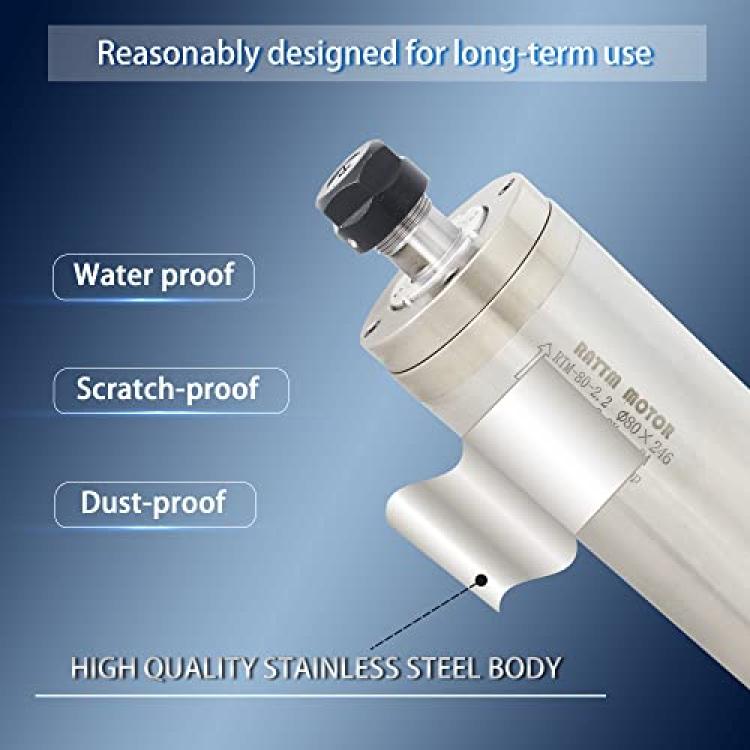

*✅【Design Advantages】The design of the dust-proof cover on the front of the spindle and the use of stainless steel body can effectively prevent dust, water and rust.
