MYSWEETY 110V 1.5KW Water Cooled Spindle Motor CNC Spindle Motor +1.5KW Converter + 65MM Clamp Mount + 13pcs ER11 Collet + 5M Water Pipe + 110V Water Pump

About this product

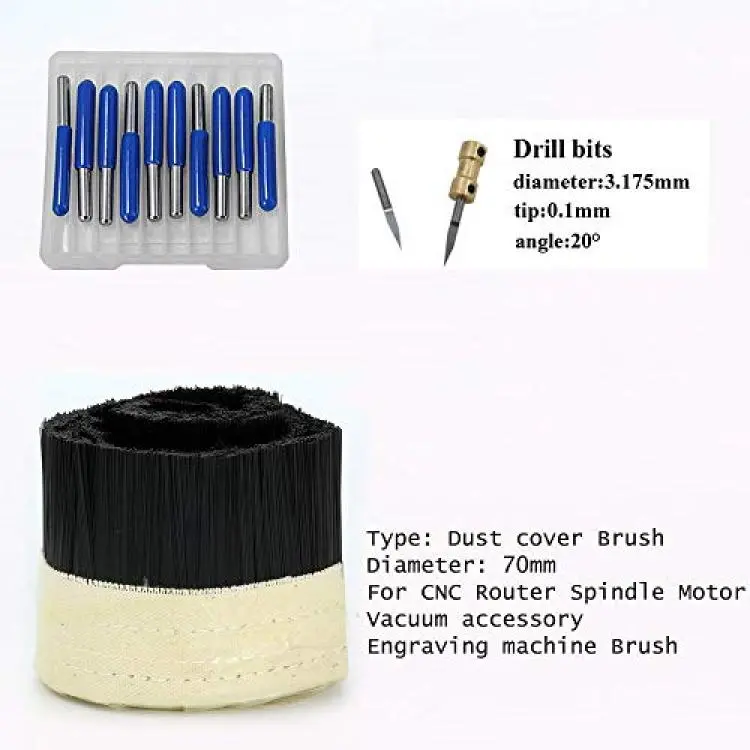

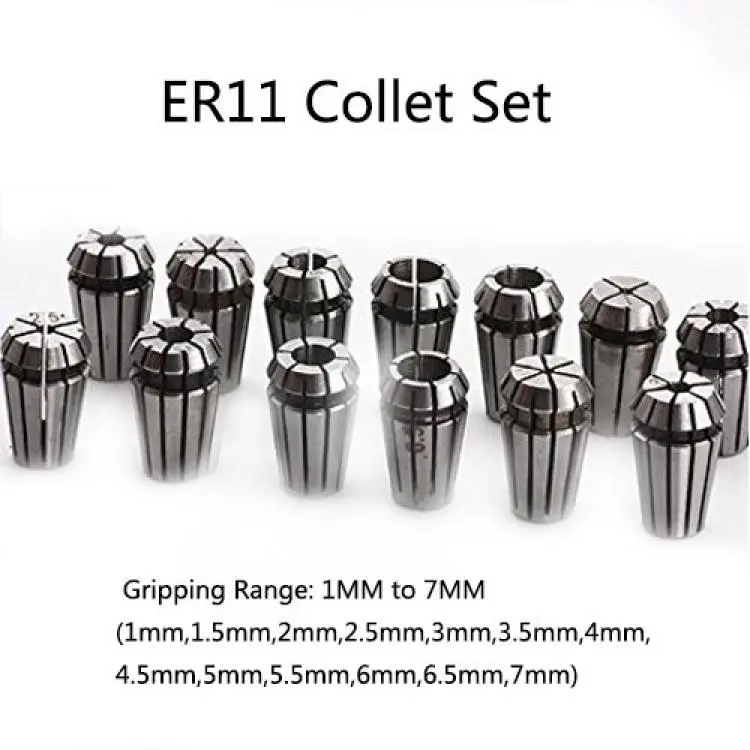

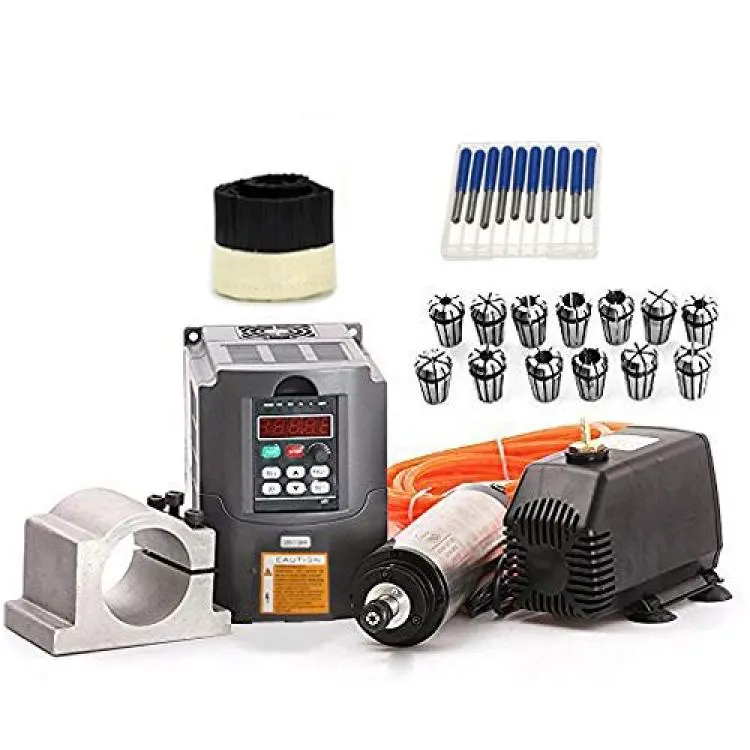

*✅ Package include: ①1 x 1.5KW 110V Spindle Motor ②1 x 1.5KW 110V VFD ③1 x 75W 110V Water Pump ④1 x 196 in Water Pipes ⑤1 x 2.6 in Spindle Motor Mount ⑥1x40 in Electric Wire ⑦10 x Drill Bits ⑧1 x2.8 in Brushes ⑨13 x ER11 Collet(1mm,1.5mm,2mm,2.5mm,3mm,3.5mm,4mm,4.5mm,5mm,5.5mm,6mm,6.5mm,7mm)

*✅1.5KW Spindle Motor：Technical Parameters:φ1.16 x 10.5in (Diameter: 2.95cm x Length: 26.7 cm); Power: 1.5KW; Voltage: 110V; Current: 8A; Collet Size: ER11; Bearings: 4 bearings. Frequency: 400 Hz; Speed: 0-24000 R/min; Runout off: less than 0.001 mm; Weight: 7.05 ib. The spindle motor applied to Lathes, Mills, Car Hoists, Pumps & Conveyors, etc. Used for engraving machine or used with frequency converter.

*✅ 1.5KW VFD Inverter: Power: 1.5KW; Input Voltage: 110V; Output Voltage: 110V; Input Phase: 1 phase or 3 phase; Output Phase: 3 phase; Input Frequency: 50 Hz; Output Frequency: 0-400 Hz; Output Current: 5A. The machine is screwed to ensure the safety and reliability of the use. DC cooling fan low noise, large air volume.The converter has overload protection, overvoltage protection overheat protection etc.

*✅75W 110V Water Pump：Power: 75W, Flow: 3000L/H, Hmax: 3.5M, Voltage: 110V/60HZ, Size: L4.8xW3.5xH4.3 in. This is a high-performance, energy-efficient pump and is well-designed for use in spindle, suitable for 0.8KW, 1.5KW, 2.2KW, 3KW and other high speed CNC water cooled spindle motor.ps: the submersible pump should be completely immersed in water when it is working .

*✅Support：We offer 1 year warranty. If you get stuck, contact us with any questions that arise, our customer service team are waiting for helping you within 24 hours and we promise we will provide a 100% satisfied solution for you!
