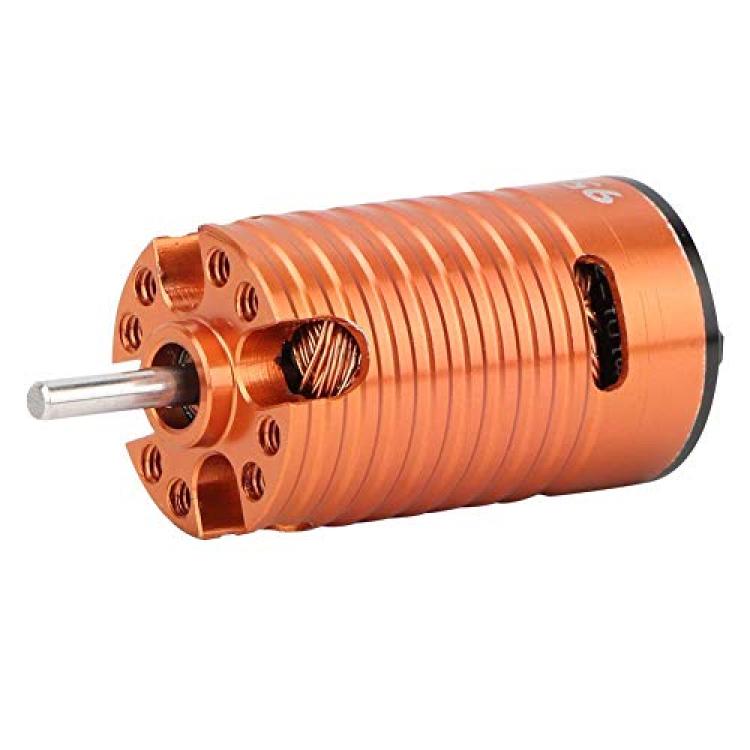

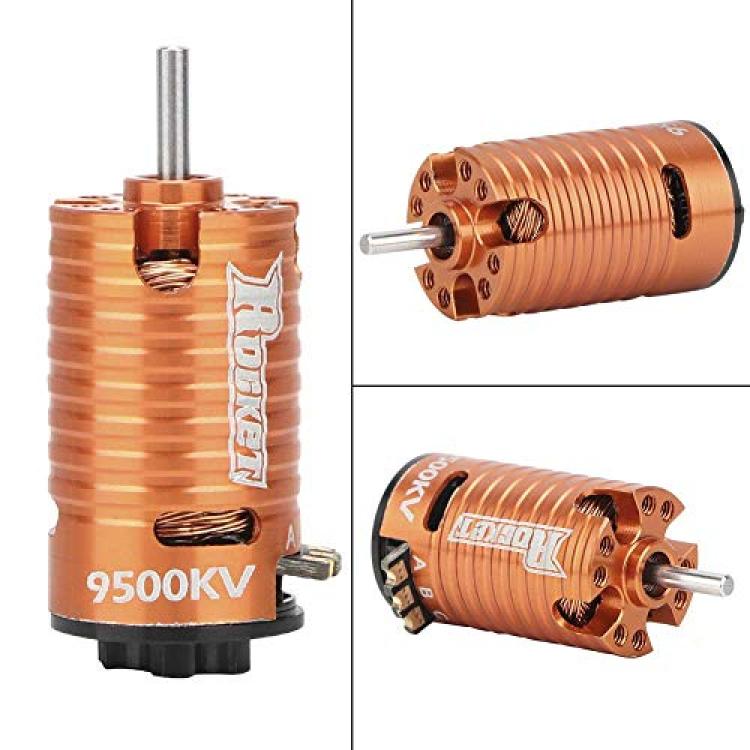

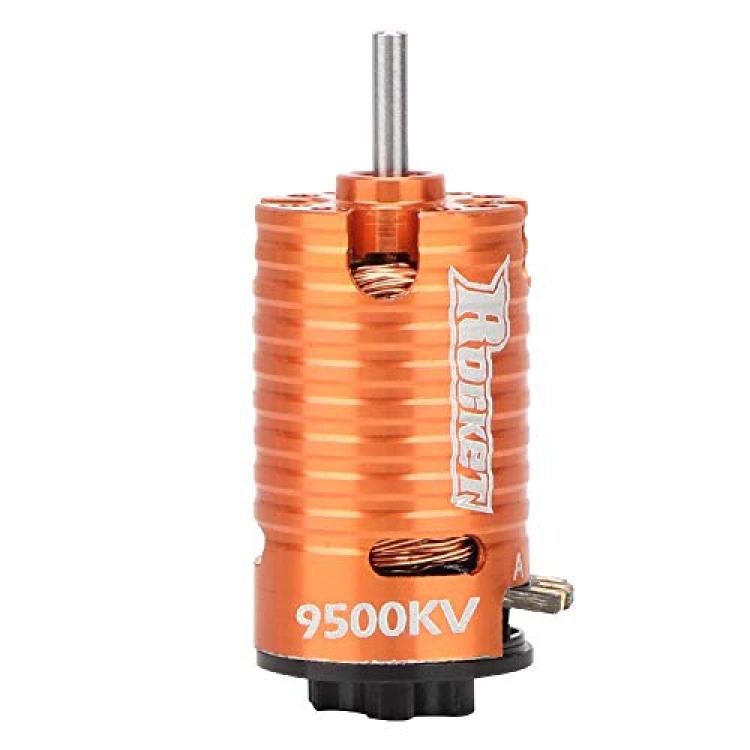

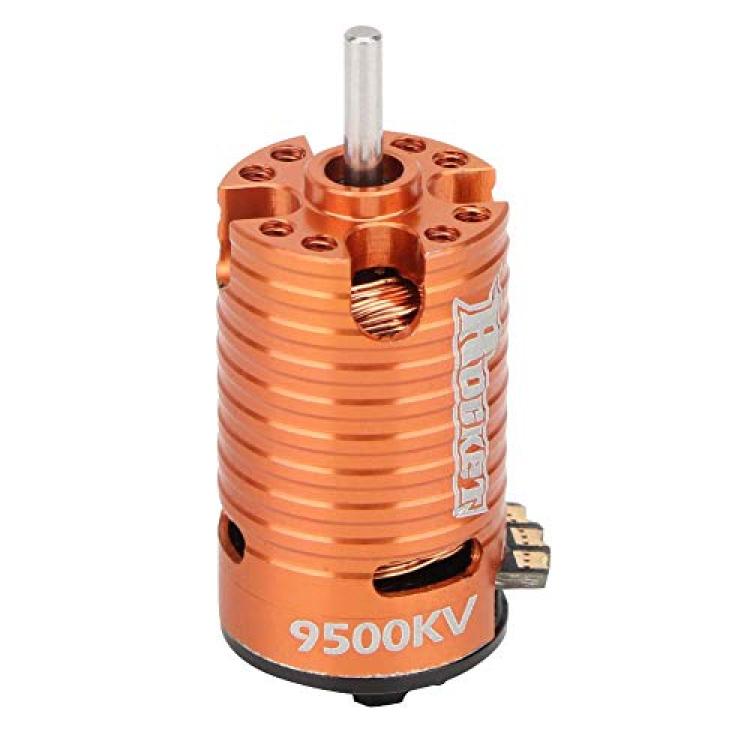

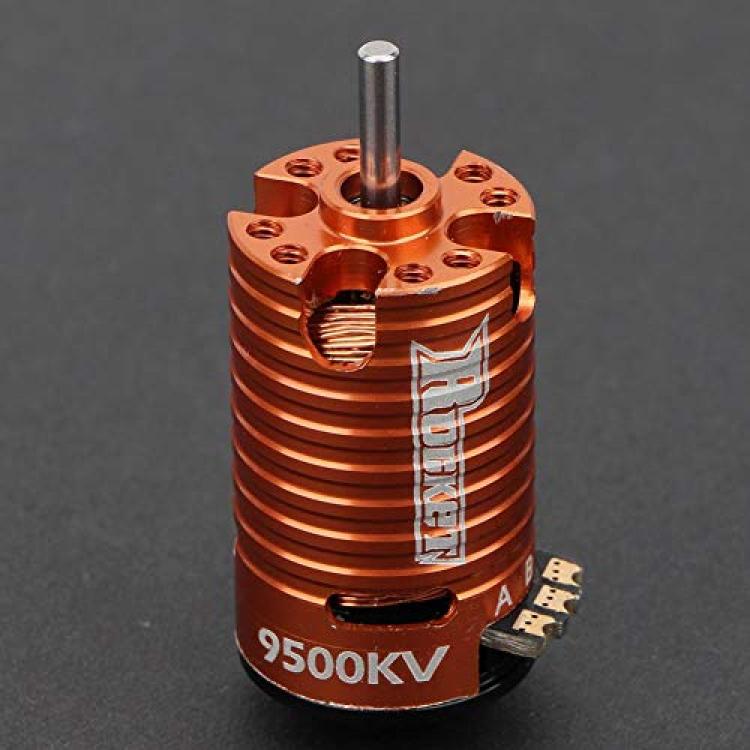

Woyisisi Rocket Mini-Z 9500KV 2Poles Brushless Motor for 1/24 1/28 RC Model Car Digital High Torque Metal
Availability: Pre-Order, Inquiry Price
About this product
*2 pole 3 slot hi-torque motor design.
*CNC machined 6061 T6 billet aluminum heatsink can.
*High purity copper windings maximizes the efficiency.
*High RPM ABECS oversized bearings.

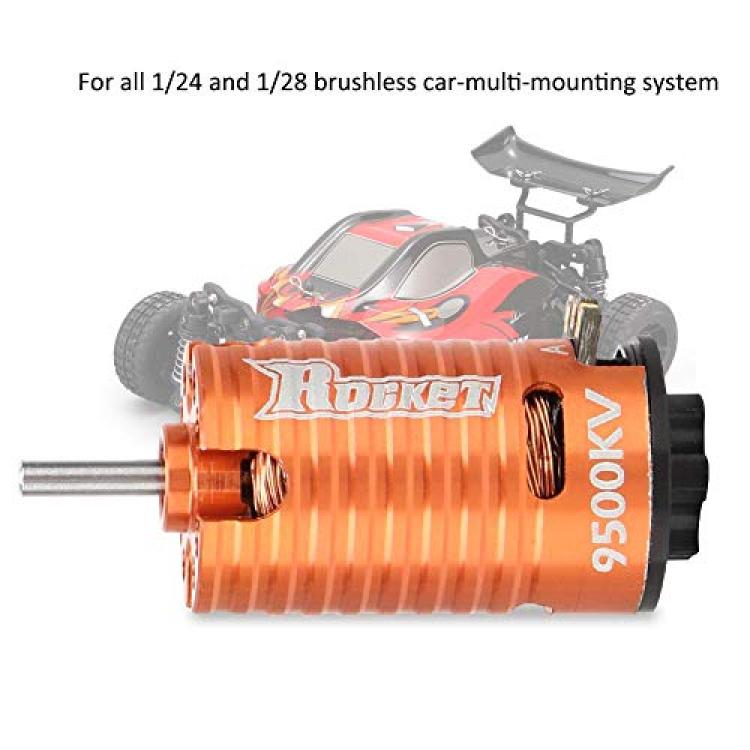

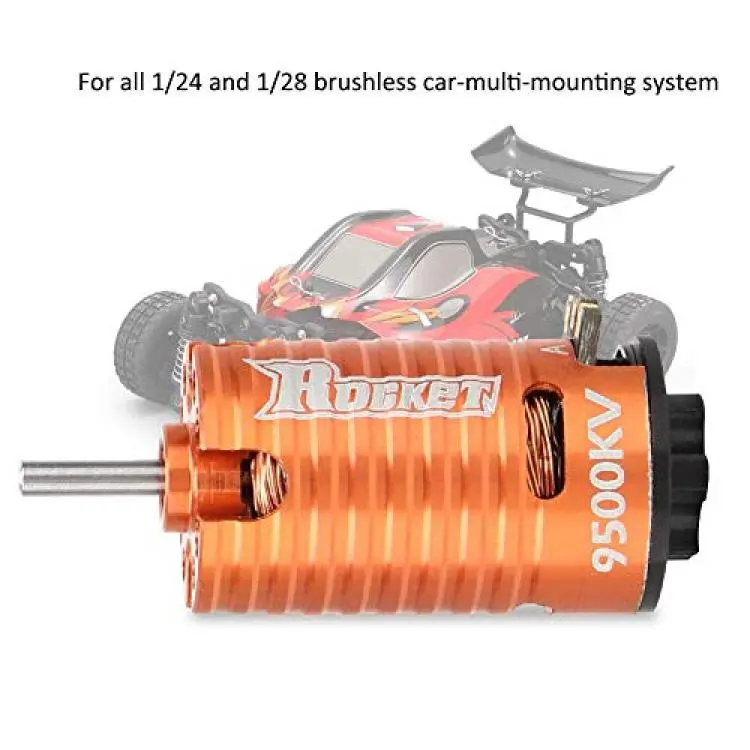

*Universal fit, fits for all 1/24 and 1/28 brushless car-multi-mounting system for M2.0 screws.
Description
Features:
1. 2 pole 3 slot hi-torque motor design.
2. CNC machined 6061 T6 billet aluminum heatsink can.
3. High purity copper windings maximizes the efficiency.
4. High RPM ABECS oversized bearings.
5. Universal fit, fits for all 1/24 and 1/28 brushless car-multi-mounting system for M2.0 screws.
6. Precision balanced rotor, smoothness for best reliability and maximun RPM.
7. Stator-supper thin (0.2mm) kaminations.
8. Precision engineered for maximum energy conversion.
Specification:
Condition: 100% Brand New
Material: Metal, Magnet
Color: As Pictures Shown
KV: 9500KV
Watts: 80
Max Voltage: £¼6.0W
Max. Amps: 12A
Rotor Poles: 2
IO: 0.8A
Resistance: 0.1
Max. RPM: 60000
Overall Length: Approx. 3.7cm/1.5in
Diameter: Approx. 1.5cm/0.6in
Motor Length: Approx. 2.5cm/1in
Shaft Diameter: Approx. 0.2cm/0.08in
Weight: Approx. 22g
Package List:
1 * Motor
