4PCS Servo Motor MG995 Control Angle180 Metal Gear Servo 20KG Digital High Speed Torque Servo Motor for Smart Car Robot Boat RC Helicopter
About this product
*Good performance digital standard servo, which can be a common use for robots, mechanical arms, climbing cars and remote control toys.
*This high-speed standard servo motor can rotate 180 degrees (90 in each direction).
*Torque at 6V 12kg/cm, 7.2V 13kg/cm. Positioning speed at 4.8V without load 0.17s / 60 degrees;6.0V without load 0.13s / 60 degrees
*Connector wire length 300mm. Stable and shock proof double coreless motor, metal gear, ball bearing design,Through external adapter.
*This servo offers a full range of 180° with metal gears. Application:RC robot, airplane control, robot arm and boats. Fit for all kind of R/C toys and Arduino experiments.
Description
Specification:
Gear Type: All Metal Gears
Connector Wire :11.81 inch (300mm),
signal wire/PWM--Yellow;
positive Pole(+)--Red;
negative Pole/GND(-)—Brown
Item Dimension:40.7*19.7*42.9mm(1.60*0.78*1.69inch)
Servo Weight: 55g
Positioning speed at 4.8V without load0.17s / 60 degrees; 6.0V without load 0.13s / 60 degrees
Dead Band Width: 4us
Plug Specification: JR FUTABA, Hitec,Sanwa, GWS are universal
Operation Voltage: 3.0V - 7.2V
Stall torque: 6V 12kg/cm, 7.2V 13kg/cm.
Temperature range: -30 to +60deg
Applicable models: biped robot / robot / remote control car, suitable for50-90 methanol fixed-wing aircraft and
   26cc-50ccgasoline fixed-wing aircraft and other models

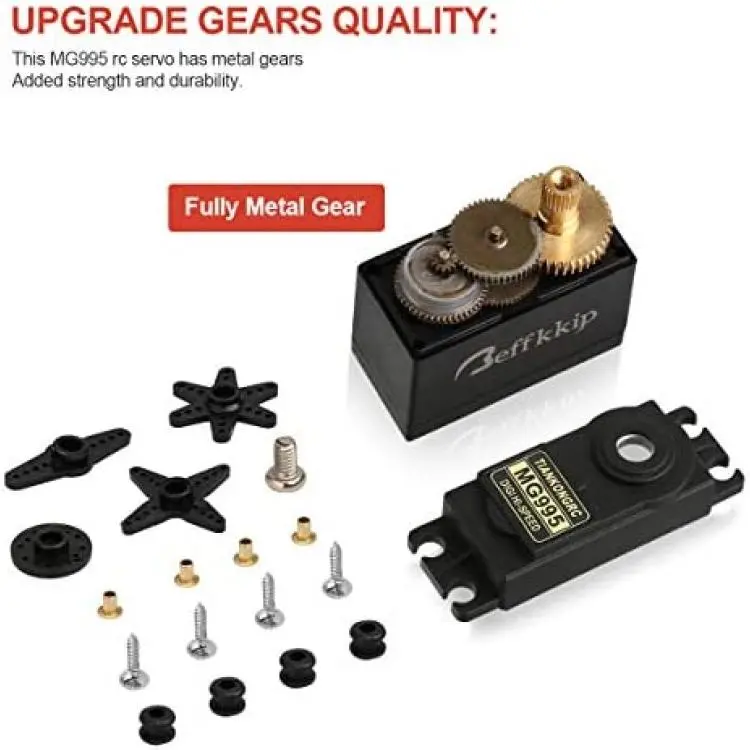

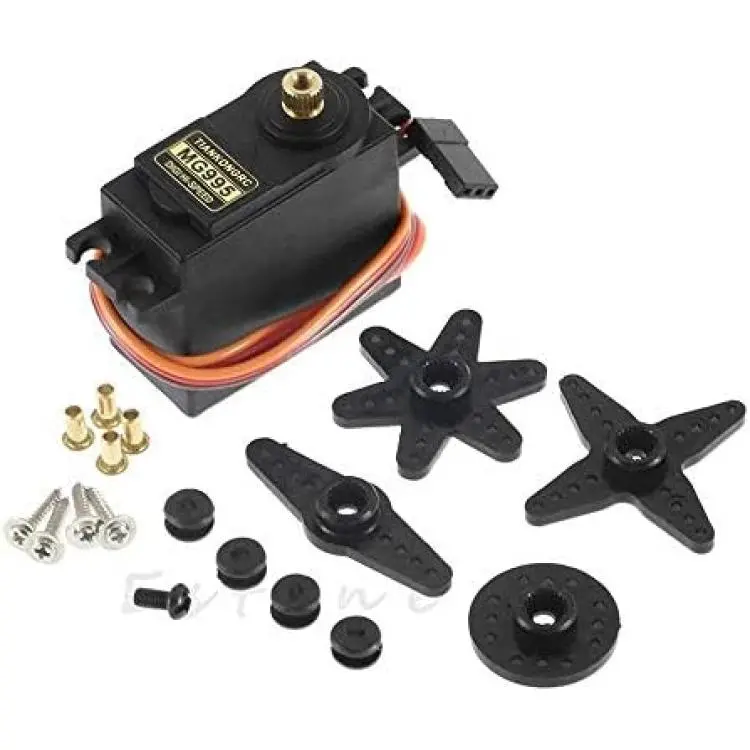

Accessories; steering wheel, fixing screws, rubber sleeves and aluminumsleeves.
Suitable for most receiver connector: Futaba, Hitec, Sanwa, GWS etc
Great for truck, Boat, Racing Car,Helicopter and Airplane.
Â
Package includes:

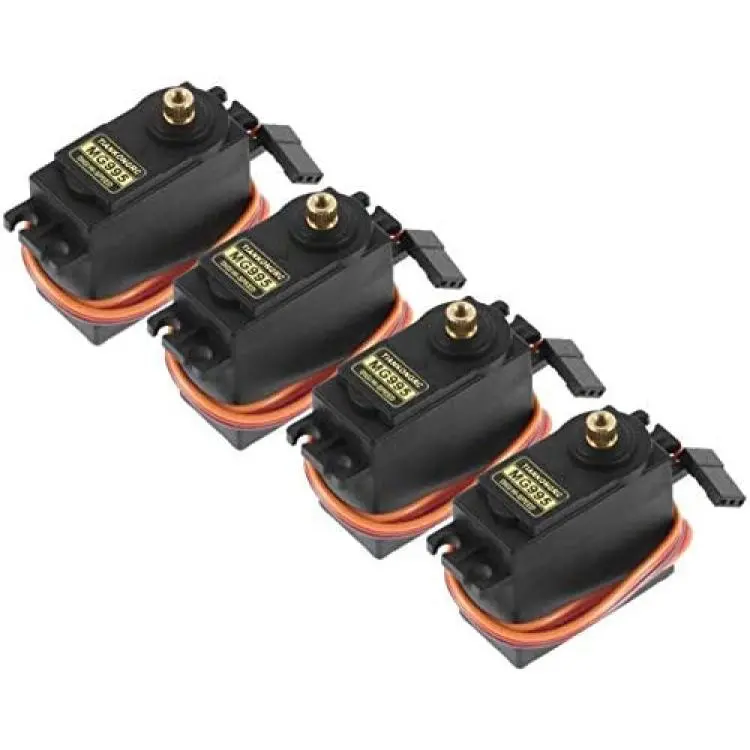

4Pcs MG995 HI-SPEED RC Servo Motor;
Servo HornKit
