DC 12V Electric Gear Motor Speed Reduction Motor High Torque Speed Reduction Gear Motor 20mm Outer Diameter for RC Car Robot Model DIY Engine Toys (100RPM)
About this product
*Perfect configuration: The use of high hardness steel, good toughness, impact resistance, bearing quality and gear motor life are improved.
*Excellent practicability: suitable for auto shutter, pan / tilt camera, slot machine, money detector, coin refund devices, currency counting machine, towel dispensers, automatic doors , peritoneal machine, automatic TV stand, office equipment, household appliances, automatic actuator, coffee maker, towel disposal, lighting, reimbursement devices.
*Outside diameter: 20 mm / 0.78 "; Speed (RPM): 15; 30; 50; 100; 200; Current (mA): 25; 40; -; 22; 65; Torque (KG.CM): 4 , 9; 8.1; -; 6.7; 6.1; Current (A): 3.3; 0.68; -; 0.61; 0.65; Reduction ratio: 671; 382; -; 100 41.5; Gearbox length (mm): 20.5; 20.5; -; 18.5; 17.
*Cost effective: Low voltage DC gear motor is widely used for craft models, such as RC cars, DIY motor toys, etc.
*Package Include: 1 x Gear Motor; Speed: 15rpm, 30rpm, 50rpm, 100rpm, 200rpm (optional); Outside diameter: 20mm / 0.78 ".
Description
Walfront DC 12V Electric Gear Motor High Torque Speed Reduction Motor 15/30/100/200 RPM with Centric Output Shaft 4mm Dia for RC Car Robot Model DIY Engine Toys Description:
The gear motor is powered by DC 12V power supply.
4 kinds of rotary speed is optional for your choice:15RPM,30RPM,100RPM,200RPM.
Full metal gears would ensure a longer service life, high torque and less noise.

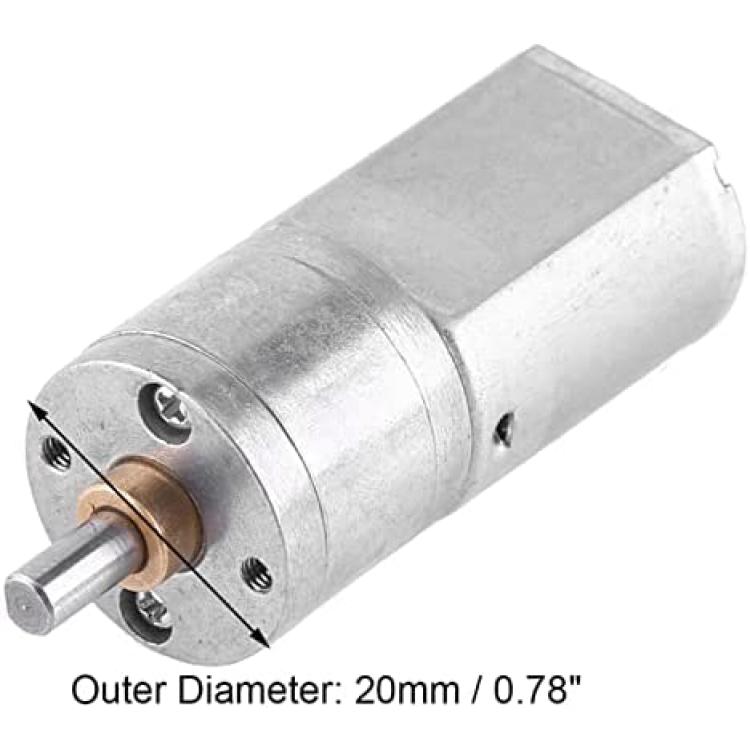

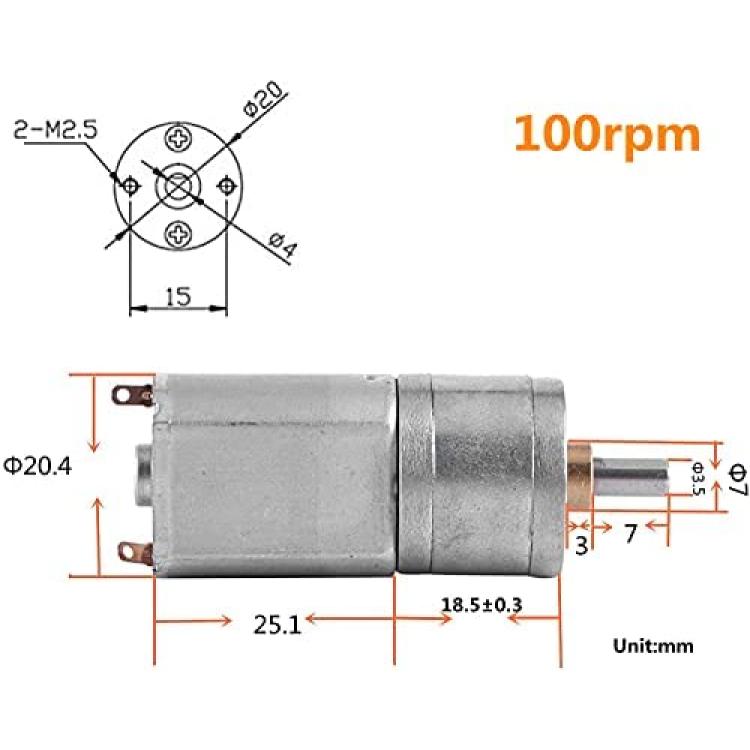

Gearbox diameter:20mm /0.78" ;Centric out put shaft diameter:4mm /0.16".
The low voltage DC gear motor is widely used for craft models,such as RC Car, Robot Model, DIY Engine Toys and so on. Specification:
Voltage: DC 12V
Speed: 15RPM, 30RPM, 100RPM, 200RPM(Optional)
Detailed Information

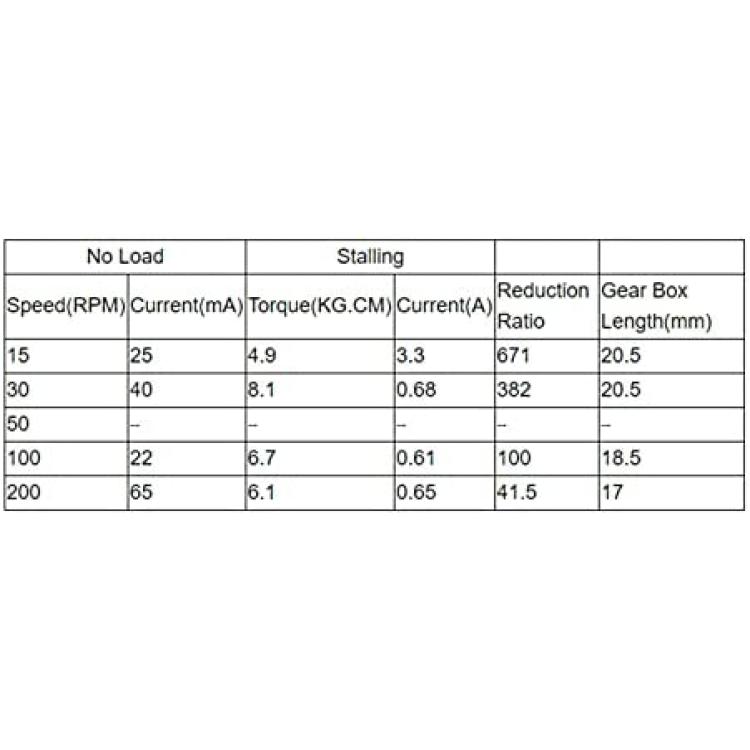

15RPM 25mA ( Current of No Load) 3.3A(Current of Stalling) 4.9KG.CM(Torque) 671(Reduction Ratio) 4mm (Output Shaft Dia)
30RPM 40mA ( Current of No Load) 0.68A(Current of Stalling) 8.1KG.CM(Torque) 382(Reduction Ratio) 4mm (Output Shaft Dia)
100RPM 22mA ( Current of No Load) 0.61A(Current of Stalling) 6.7KG.CM(Torque) 100(Reduction Ratio) 4mm (Output Shaft Dia)
200RPM 65mA ( Current of No Load) 0.65A(Current of Stalling) 6.1KG.CM(Torque) 41.5(Reduction Ratio) 4mm (Output Shaft Dia) Package Includes: 1 x DC Gear Motor
