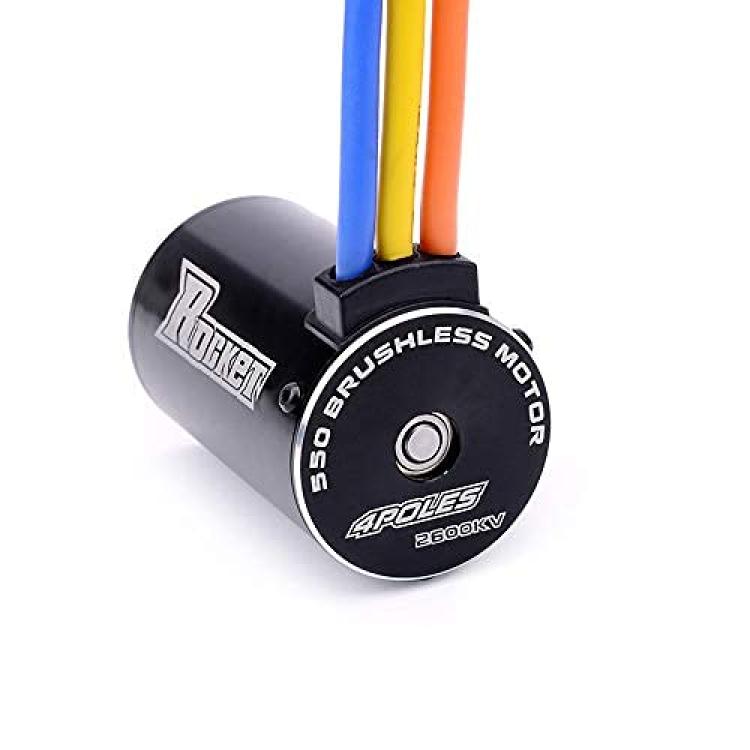

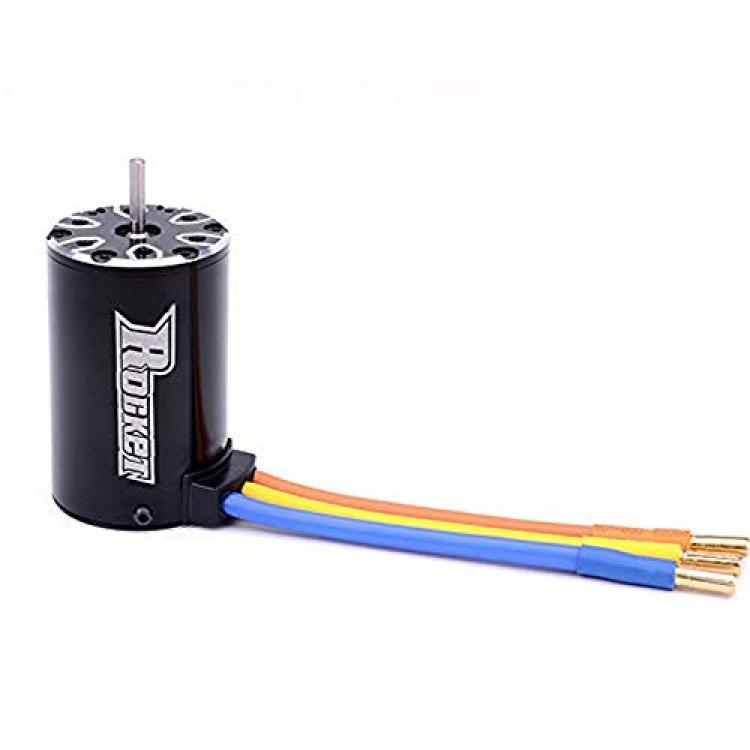

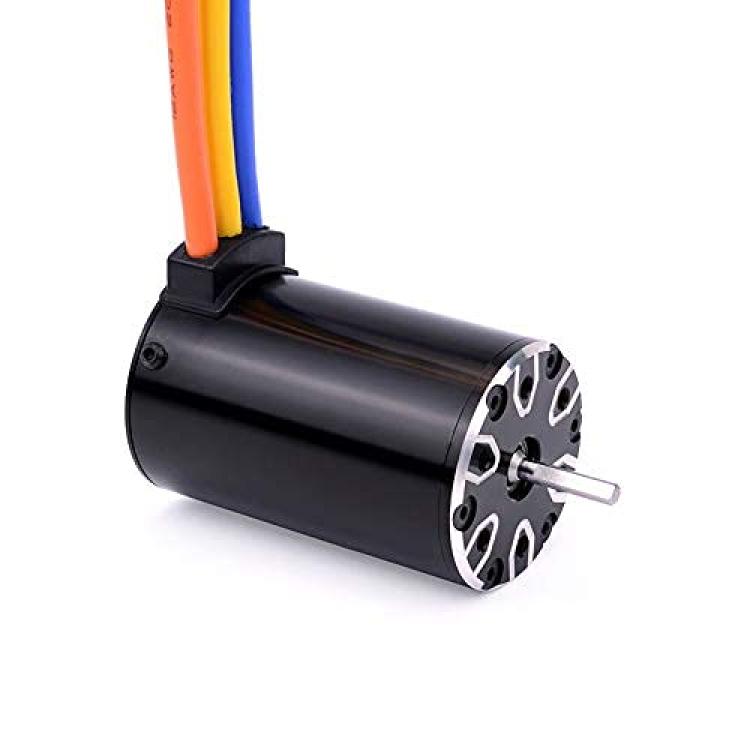

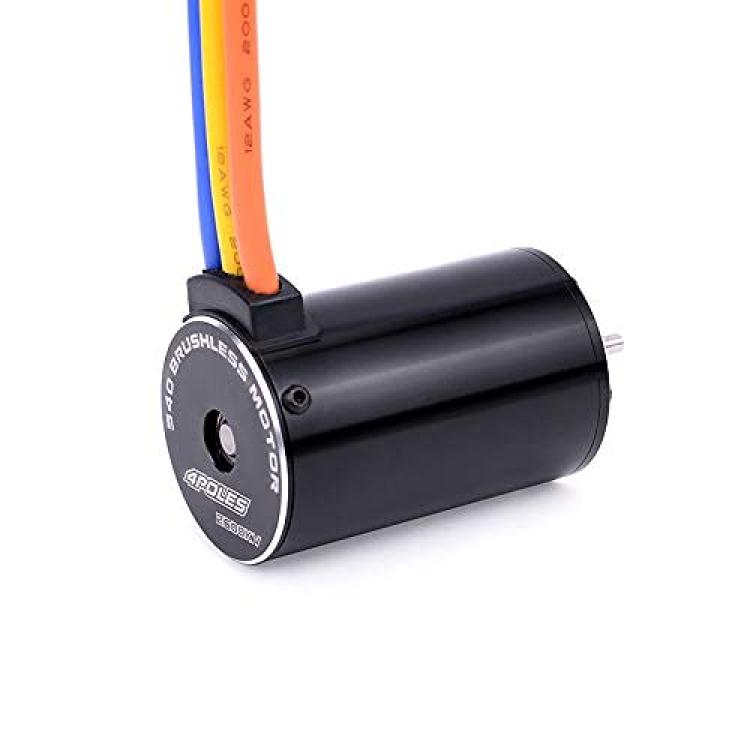

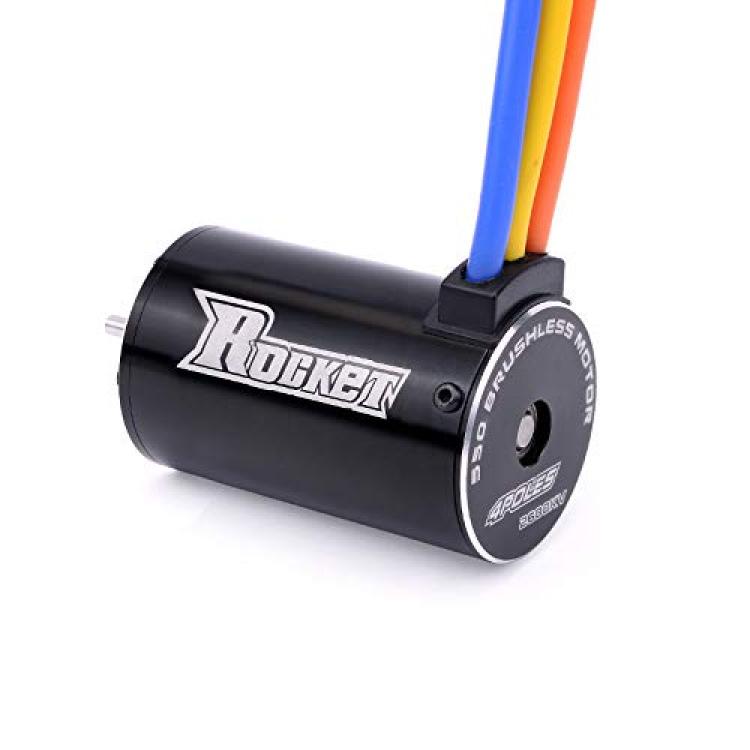

SURPASS HOBBY Rocket 550 HI-Torque Brushless Motor 4300KV Shaft 3.175mm for 1/10 RC Car Trucks Monster Car Buggy
Availability: Pre-Order, Inquiry Price
About this product
*★4Pole 12 Slot Hi-torque Motor Design
*★CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*★High Purity Copper Windings Maximizes Efficiency
*★High RPM ABEC5 Oversized Bearings
*★Stator - Super Thin (0.2mm) Laminations
Description
Features:
?4Pole 12 Slot Hi-torque Motor Design
?CNC Machined 6061 T6 Billet Aluminum Heatsink Can
?High Purity Copper Windings Maximizes Efficiency
?High RPM ABEC5 Oversized Bearings
?Stator - Super Thin (0.2mm) Laminations
?Removable/Replaceable Rotor
?Precision Engineered for Maximum Energy Conversion
Specification:
Rotor poles: 4
Product: 550
KV(RPM/Volt): 4300
Max voltage: 12V
Max amps: 100A
Max power(W): 1200W
Resistance:0.0058
Item weight: 400g
Item size: 55 * 36mm
Idle current:3.7A
Max RPM: 50K
Shaft diameter: 3.175mm
Shaft length: 17mm

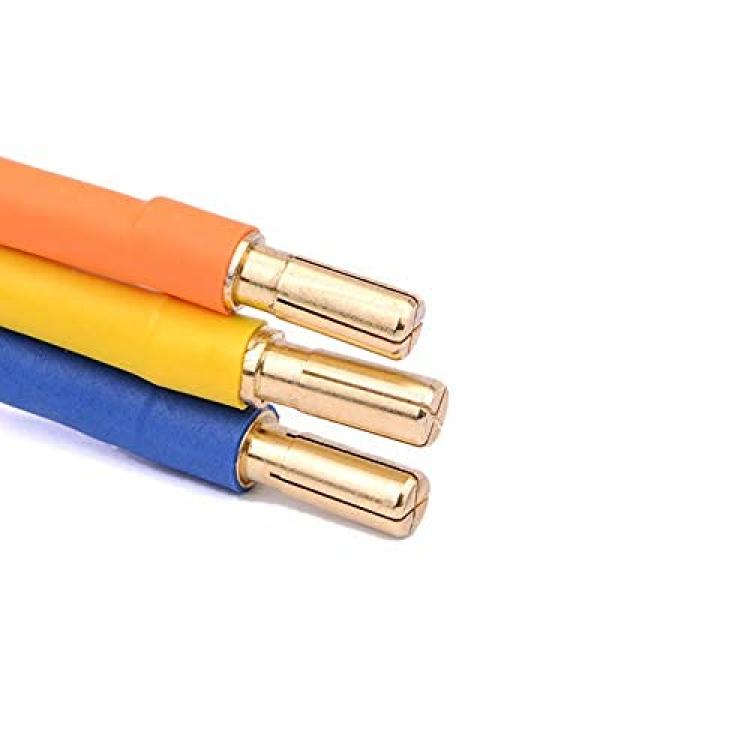

Connector: 4mm gold plug
Package List:
1 * 550 Sensorless Brushless Motor
Note: The 550 sensorless brushless motor has 2 type,one is DIA 5mm shaft; the other is
DIA 3.175MM shaft.
