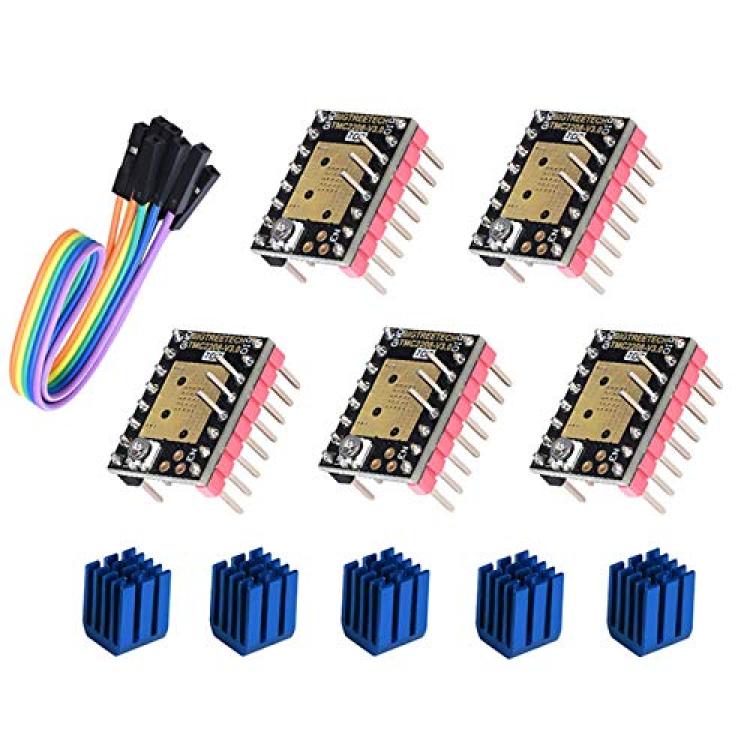

BIGTREETECH Direct TMC2208 V3.0 Stepper Motor Driver UART Mode 3D Printer Parts Reprap TMC2209 Suits SKR 2 MKS GEN Ramps 1.4 Series Motherboard (5pcs)
Availability: Pre-Order, Inquiry Price
About this product
*【Ultra-quiet Movements】: Featured with StealthChop2, TMC2208 is an extremely quiet motor driver for two-phase stepper motors, which enables softer and even quieter movements.The continuous drive current is 1.2A and the peak current is 2A, voltage range 4.75V-36V, 256 subdivisions.

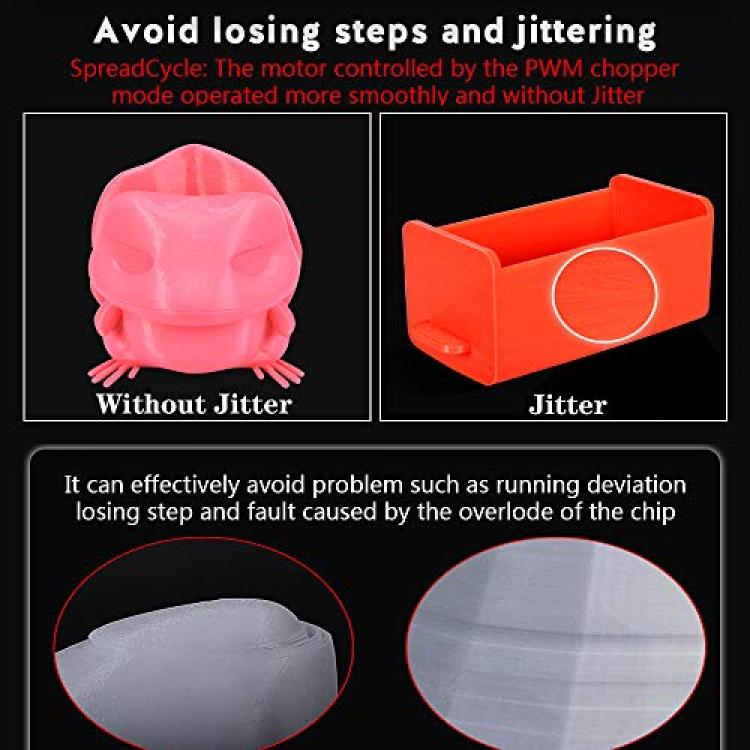

*【Smooth Operation】:Incorporated the Spreadcycle technology, BIGTREETECH TMC2208 is controlled by the PWM chopper moder, which effectively avoids losing steps or jittering.

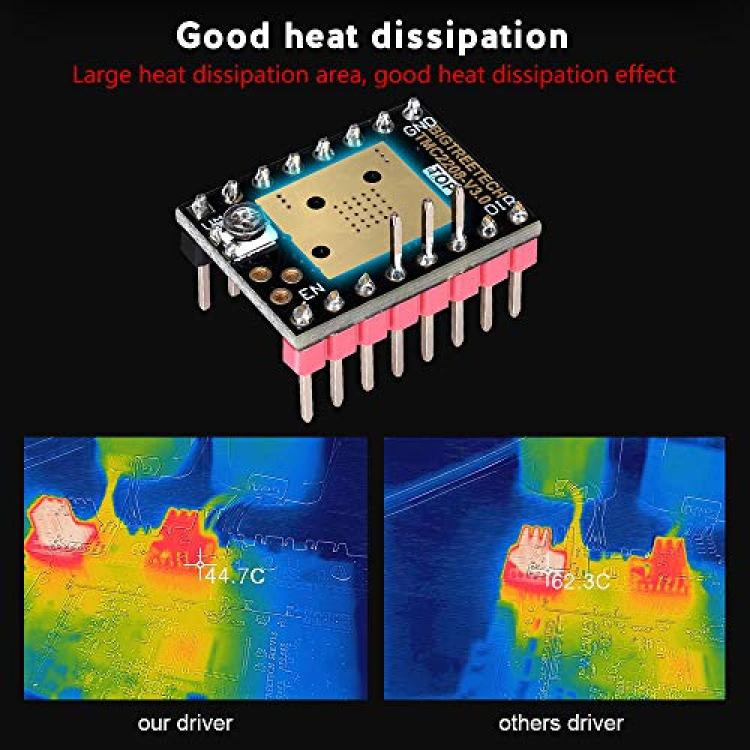

*【Terrfic Thermal Performances】:Thanks to the immersional gold finishing, BIGTREETECH TMC2208 generates 30% lower heats compared with TMC2208 of other brands on market. With much better thermal dissipation and cooling performance, it means more heavy duty and longer life of the driver motor.
*【UART Mode】:This TMC2208 comes in UART mode which can be used on control boards by setting jumper caps, no extra wielding requirements, making it flexible to use without redesign or make software or hardware changes.
*【100% Satisfying Customers Services】: You could search BIGTREETECH at GitHub, or you could send message to us directly on Amazon. Our professional tech supports team are willing to help you when you need.
Description

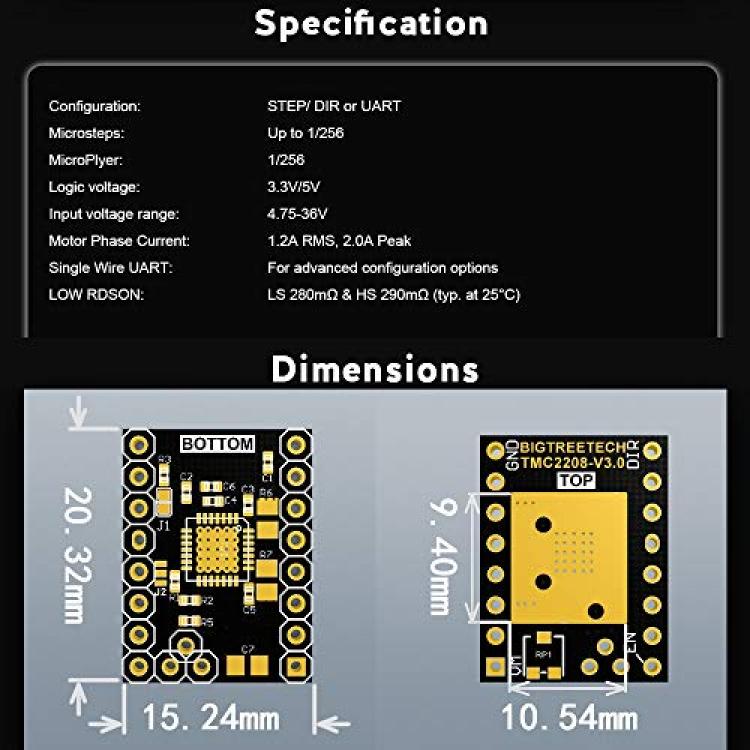

?TMC2208 V3.0 Features?:
Working Mode: DIR Step
Microplver: 1/256
Microplyer Mode: Up to 256
Driver Current: Up to 2A
Input Voltage: 4.75-35VDC
Logical Voltage: 3.3V-5V
Decibel: <10dB
RDSON: ?0.3Q
Stealthchop(quiet): Yes
Spreadcyle: Yes
Motor Phase Current: 1.2A RMS, 2.0A Peak

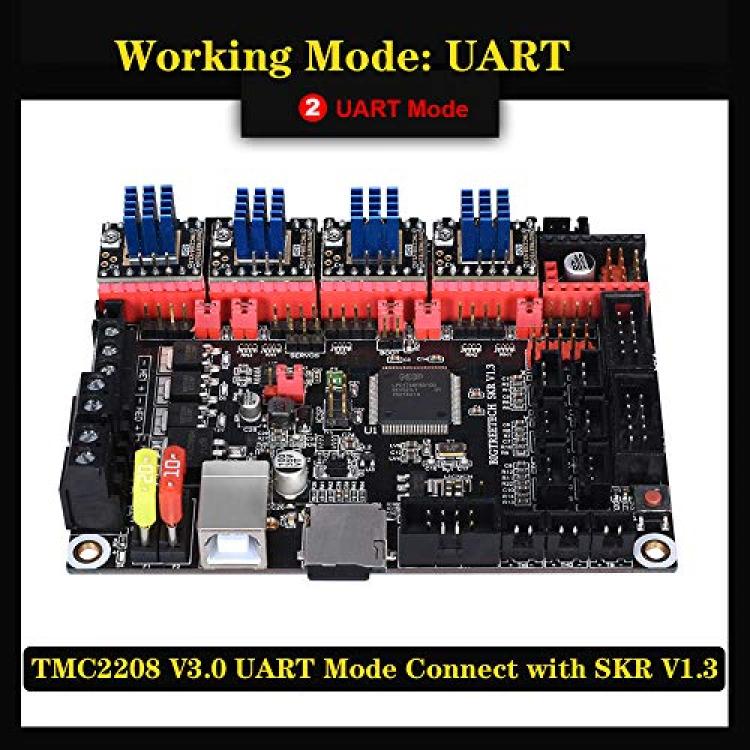

?UART Working Mode?:
Note: the factory tmc2208-v3.0 has two modes of STEP/DIR and UART, customers can choose according to their needs.
Users who purchase the STEP/DIR mode driver need to perform the following hardware operations on the driver module before wiring.
The user who purchases the UART mode driver does not need to perform any soldering operation.
?The Benefits of UART Mode?:
Motor current can be set arbitrarily by firmware.
Micro-steps can be set arbitrarily by firmware (up to 256 actual micro-steps).
The actual and interpolated microsteps can be combined to achieve maximum torque.
Firmware can dynamically switch stepper motors between stealthChop2 and spreadCycle modes through UART.
?Attention?:
Make sure to do a good job in heat dissipation (heat sink + heat dissipation fan) before driving to prevent abnormal operation of the drive.
If you encounter problems in use, welcome to contact us, we will be answer to you ASAP. If you have any good comments or suggestions on our products, please tell us, we will carefully consider your comments or Suggestions. Thank you for choosing BIGTREETECH products.
