BIGTREETECH Direct 6PCS TMC2209 V1.2 Stepper Motor Driver UART Stepsticks Supports Step/DIR Mode for SKR V1.4 Turbo SKR 2 Octopus V1.1 Control Board
Availability: Pre-Order, Inquiry Price
About this product

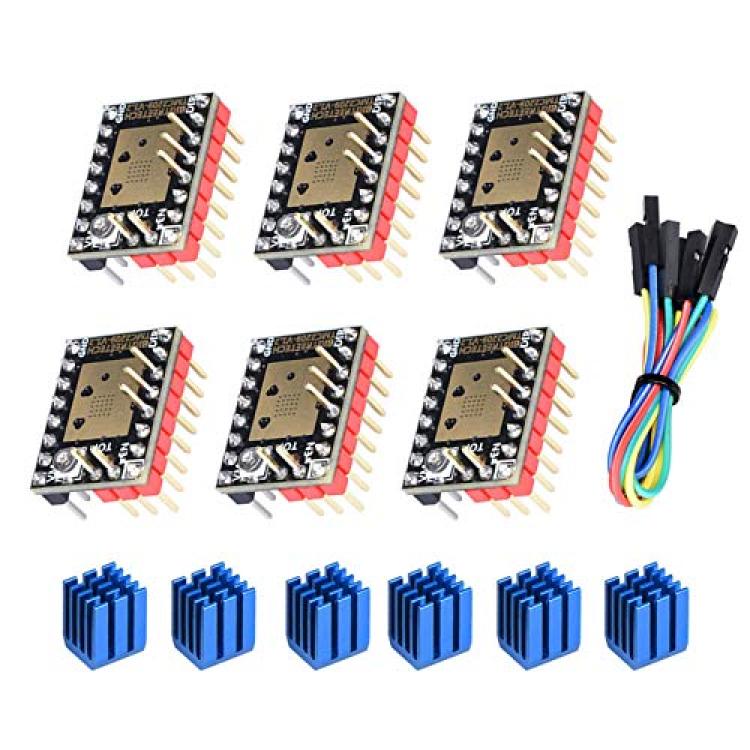

*Pack of 6 : Comes in 6 PCS TMC2209 stepper motor drivers and heatsink. Thanks to the StealthChop2, TMC2209 serves as ultra-quiet stepper motor driver with with a continuous current of up to 2.0A (with peaks of 2.8A). Voltage ranges from 5.5V to the maximun output of 28V.
*Ultra-Silent: The StealthChop2 allows for no-noise, high-precision chopper algorithm for inaudible motion and inaudible standstill of the motor, making it super quiet during printing. And the flexible microPlyer interpolation unit provides up to 256 subdivisions, which can achieve perfect sinusoidal control even in systems with limited pulse frequency.
*More Cost-effective: BIGTREETECH TMC2209 is ompatible with existing 3D printer electronics on the market, eliminating the expensive cost of redesigning. It can perfectly replace the original TMC2100 A4988 DRV8825 LV8729, with lower calorific value.
*Terrific Performances:Featured with RDSon value of 0.2A, TMC2209 drivers have lower resistance conducting output drivers, which provides them with less power dissipation and higher current. The Spreadcycle provides high-precision cycle-by-cycle current control for highest dynamic movements.
*After-sales Service: 1-Year warranty is 100% guaranteed. If you have any questions about this 6PCS TMC2209 V1.2, you can contact us at any time through Amazon, and we will give you a satisfactory answer.
Description

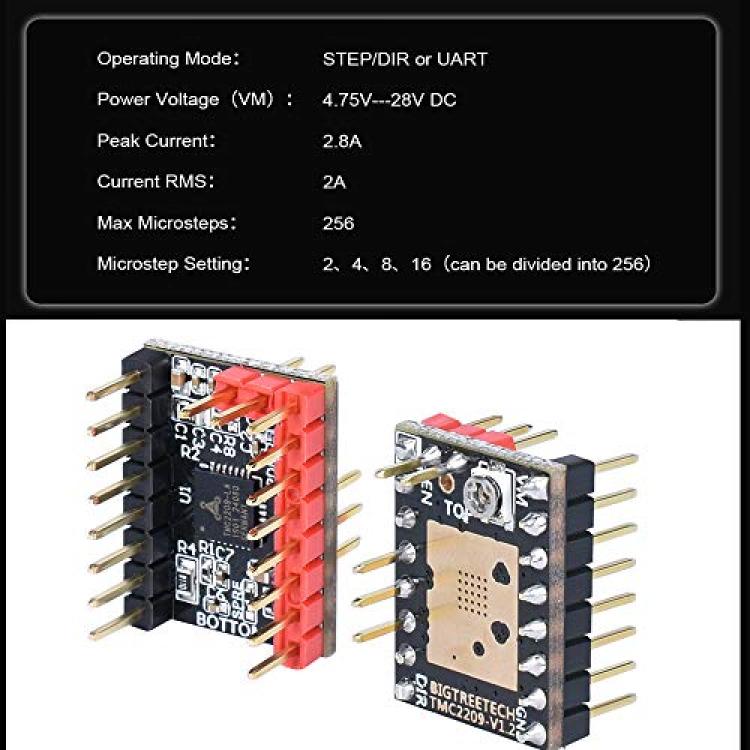

Product Description:
Material: PCB
Mode: DIR/STEP,UART
Motor Voltage: 5.5-28V
Logic Voltage: 3.3-5V
RSense: 0.11 Ohm
Current: 2A (Peak 2.8A)
Microsteps: 256 Subdivision
Product Features:

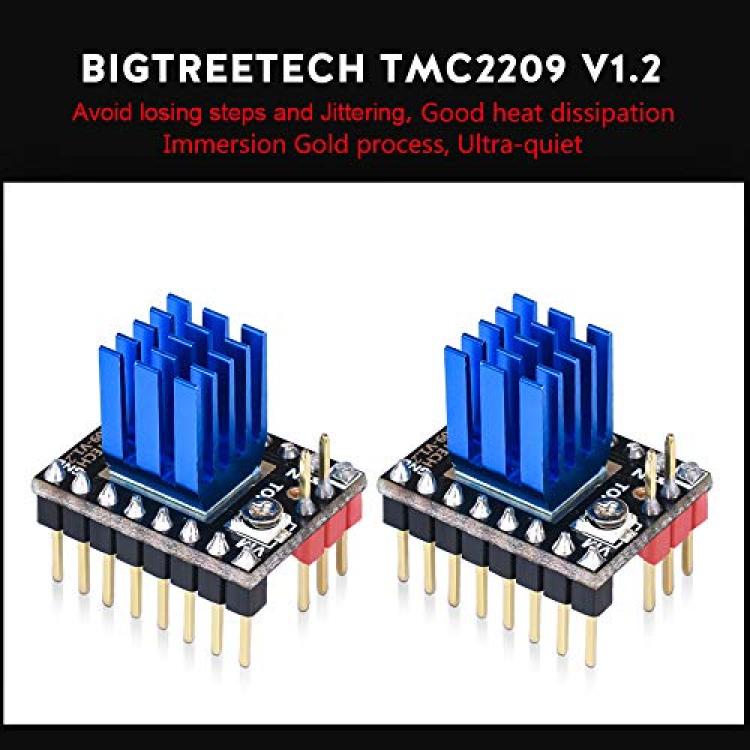

Avoid Losing Steps and Jittering
Immersion Gold Proxess, The Better Antioxidant
SpreadCycle: The motor controlled by the PWM chopper mode operated more smoothly and without Jitter
The TMC2209 can effectively avoid problem such as running deviation losing step and fault caused by the overlode of the chip
Warm Notice
When the driver is inserted into motherboard, plaese pay attention to see the direction of the drive, can not be inserted in reverse, to prevent the drive from burning.

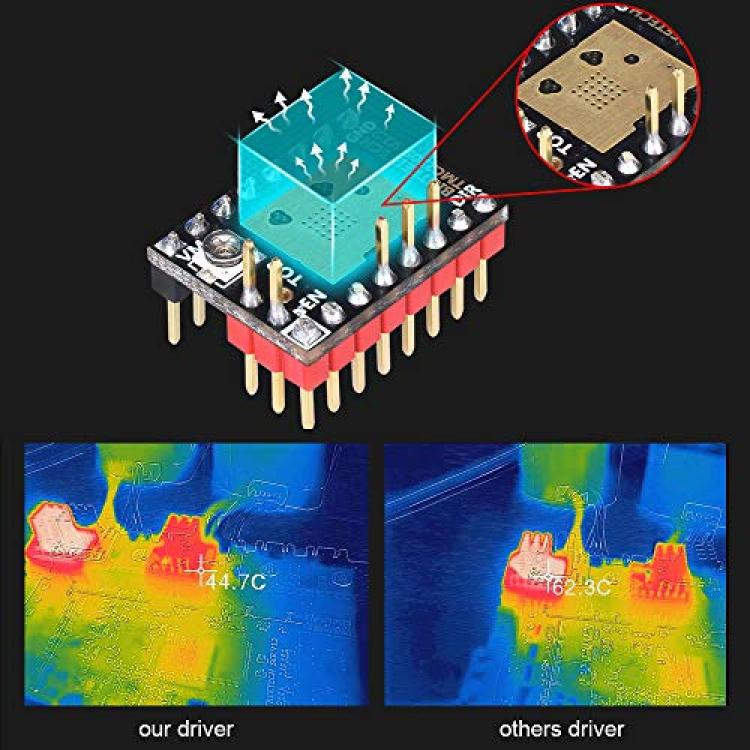

Be sure to do a good job before driving heat dissipation work(heat sink+fan), to prevent the drive is not working properly.
