CNLINKO LP20 series waterproof connector, IP65/ IP67 Fast locking connect, 20A 500V 2pin m20 male and female LED outdoor power connector (2 pin)

About this product

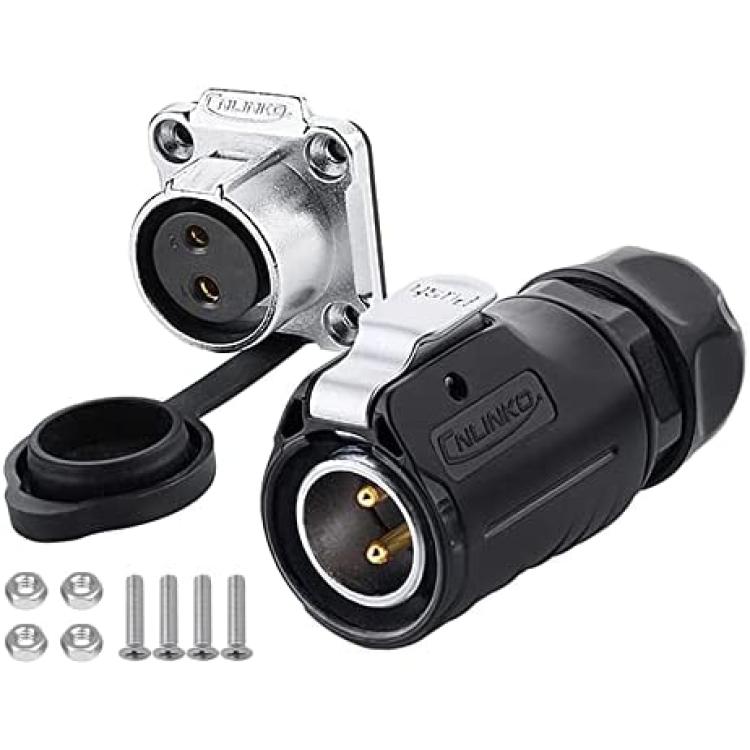

*LP-20-C02PE-01-022 + LP-20-J02SX-03-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;

*【Standard】 Cable Specification(Power): 2.5-4.0mm2/14-12AWG ; Cable Diameter Range(Power): Ф9.0~Ф12.0mm ; Contact Diameter × Number: Φ2.7x2 ; Durability:≥500 Mating/Unmating Cycle ; Temperature Rating:-40°C ~ 80°C ; Assembly Style:Solder ;

*【Specifications】 Rated Current: 20A ; Operating Voltage (AC.V.rms): 500V ; Withstanding Voltage (AC.V),1 Minute: 2000V ; Contact Resistance:

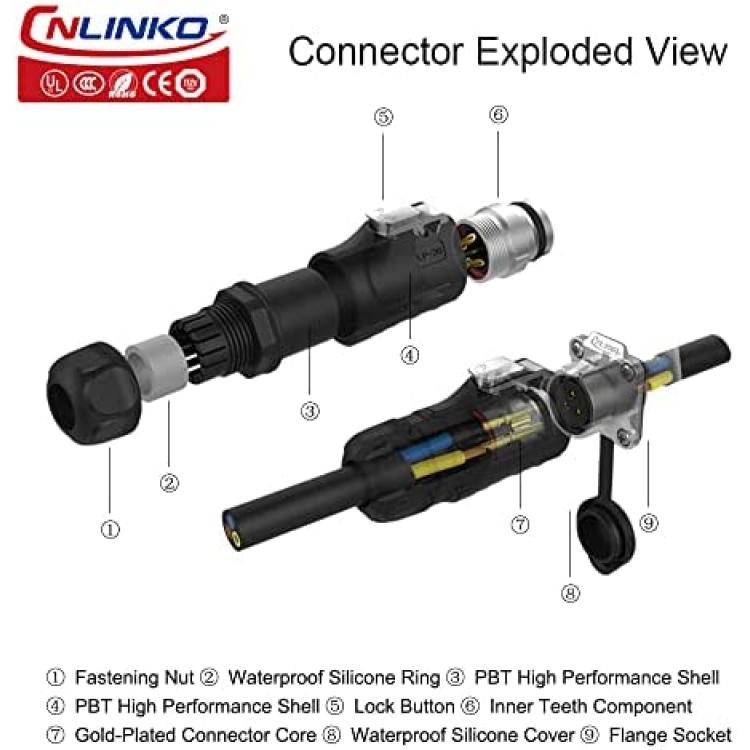

*【Material】 Shell & Insulated Parts: Metal & High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;

*【Application】 Medical Equipment ; Server ; Electric Power Equipment ; Solar Energy Equipment ; The Smart Grid ; Communications Equipment ; Vehicle Equipment ; Ship Equipment ; Stage Equipment ; Heavy Machin ;
