SparkFun Qwiic Motor Driver I2C Plug and Play Breakout No Soldering required to control small DC Motors 1.2A Steady state drive per channel 1.5A Peak 2 channels 127 levels of drive strength 3.3V Logic
Availability: Pre-Order, Inquiry Price
About this product
*4245 PSOC and 2-channel motor ports as the SCMD. 3 to 11 Volts VCC with 12V absolute max.
*Designed to communicate over I2C to make setting up your next robotic project fast and easy.
*Or control over TTL UART signals. Several I2C addresses, default UART bauds available.
*No soldering is required. Includes 2 Qwiic Connectors and screw terminals for motor and power hookup
*Direction inversion on a per motor basis. Thermal conduction area for attaching 3 small heat shrinks
Description

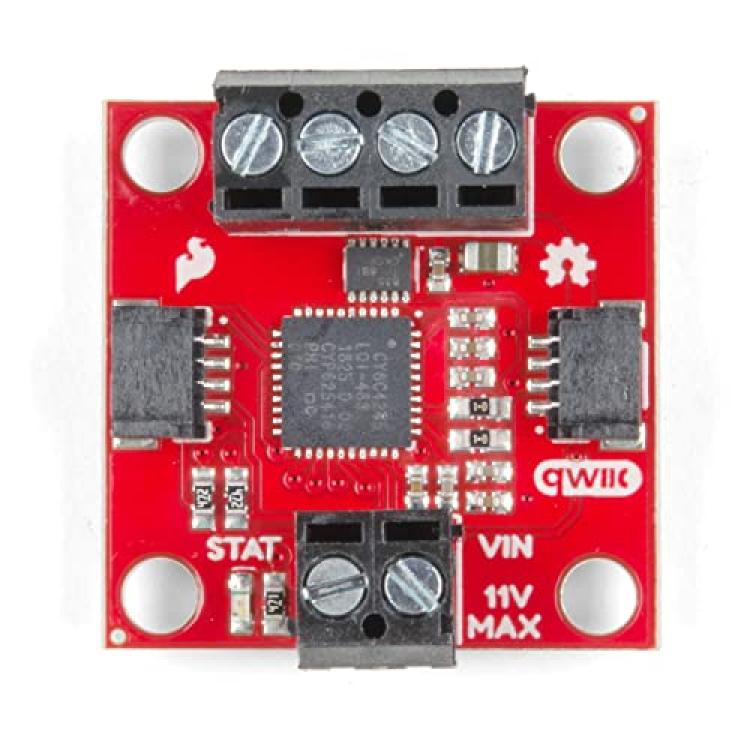

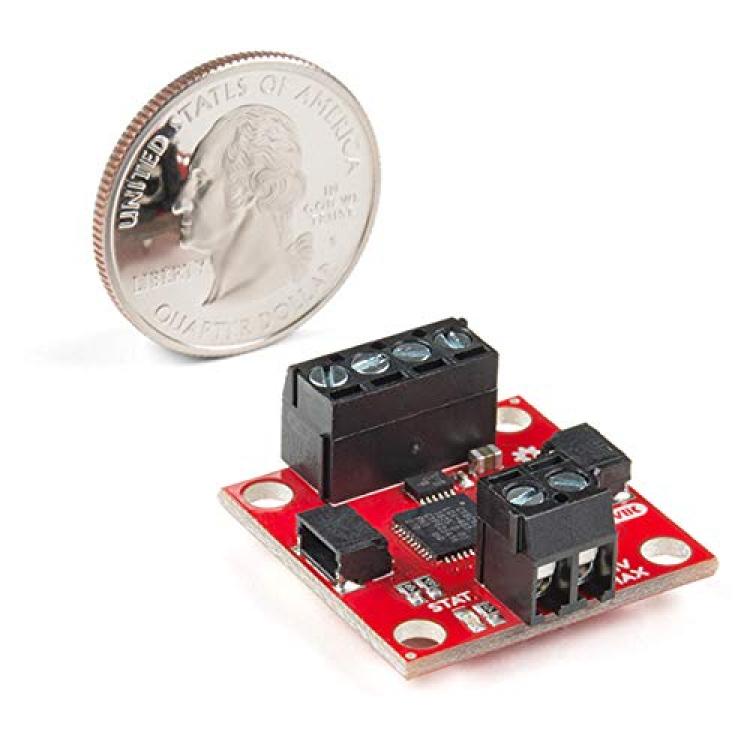

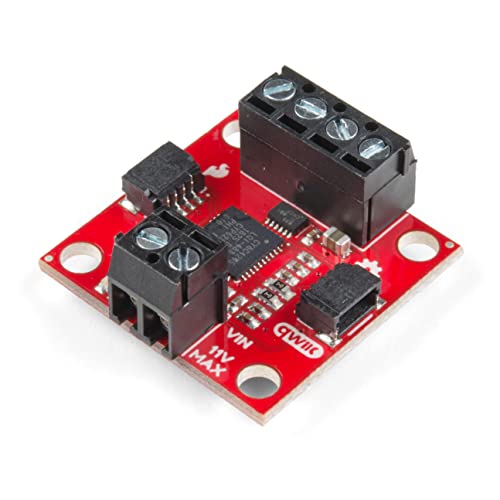

The SparkFun Qwiic Motor Driver takes all the great features of the Serial Controlled Motor Driver (SCMD) and miniaturizes them, adding Qwiic ports for plug and play functionality. Boasting the same 4245 PSOC and 2-channel motor ports as the SCMD, the SparkFun Qwiic Motor Driver is designed to communicate over I2C to make setting up your next robotic project as fast and easy as possible! Utilizing our handy Qwiic system and screw terminals for motor and power hook-up, no soldering is required to connect it to the rest of your system.
With 1.2A steady state drive per channel (1.5A peak) and 127 levels of DC drive strength, this little Qwiic board is perfect for your small DC motor driver needs. Since the Qwiic Motor Driver is a 3.3V logic device, you'll need to use a logic level converter to interface to 5V.
1.5 A peak drive per channel, 1.2 A steady state
Operates from 3 to 11 Volts with 12V absolute max
3.3V default VCC and logic
127 levels of DC drive strength.
Controllable by I2C or TTL UART signals
Direction inversion on a per motor basis
Global Drive enable
Exposed small heat sink shape
Several I2C addresses, default UART bauds available

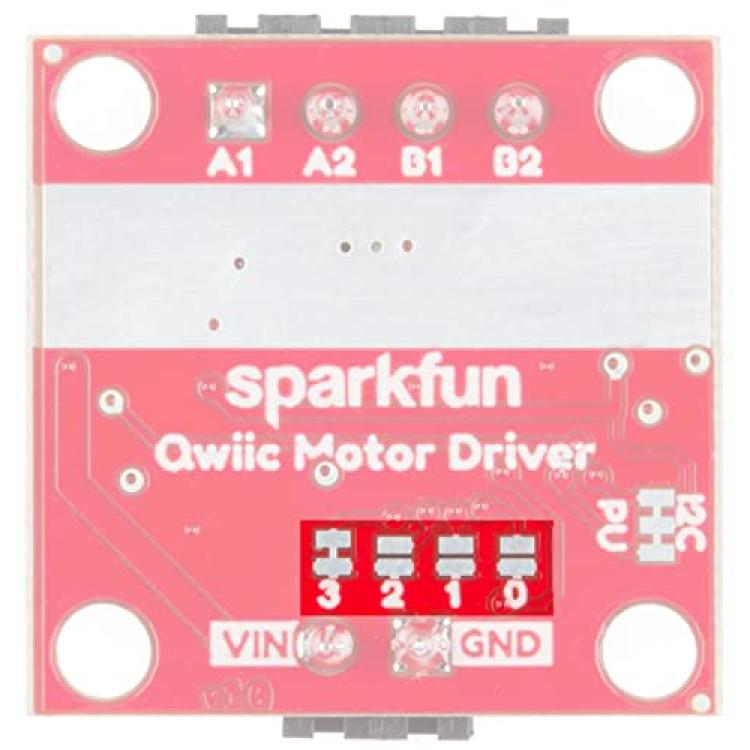

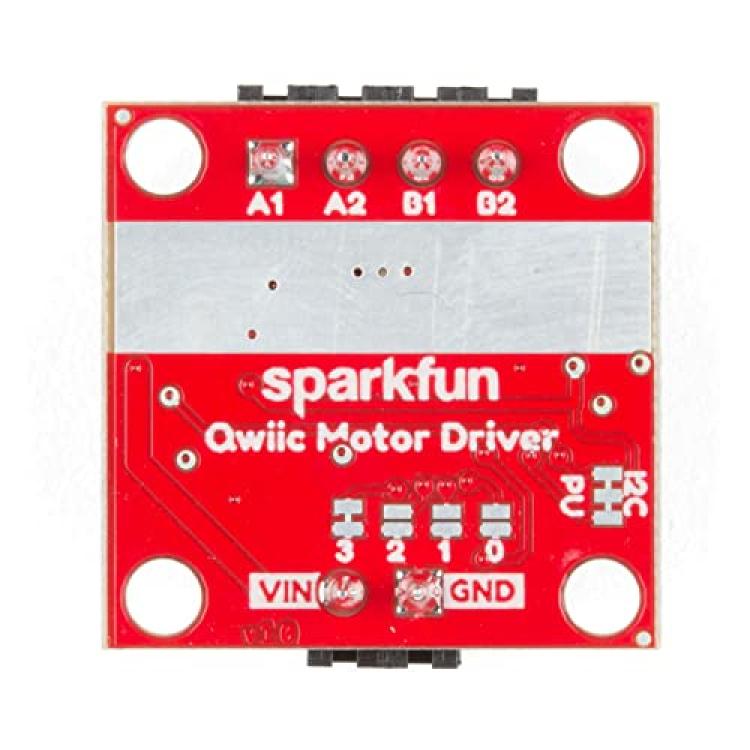

Adjustable I2C Address: 0x5D Default
2x Qwiic Connectors
The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
