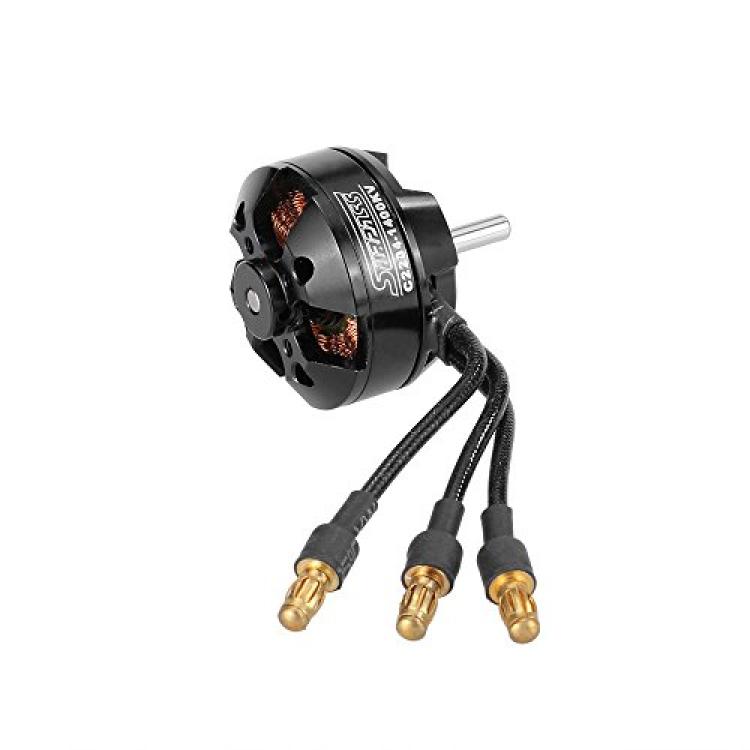

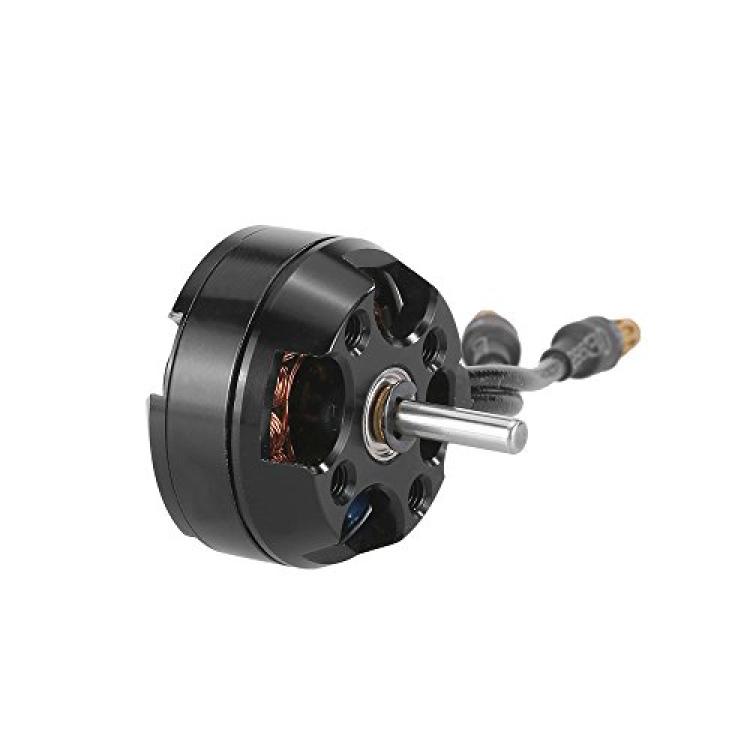

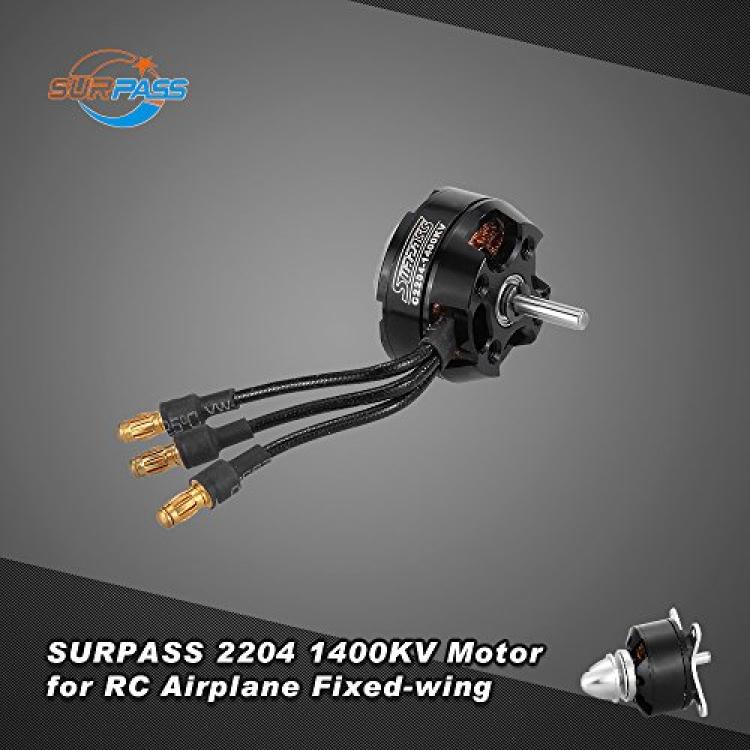

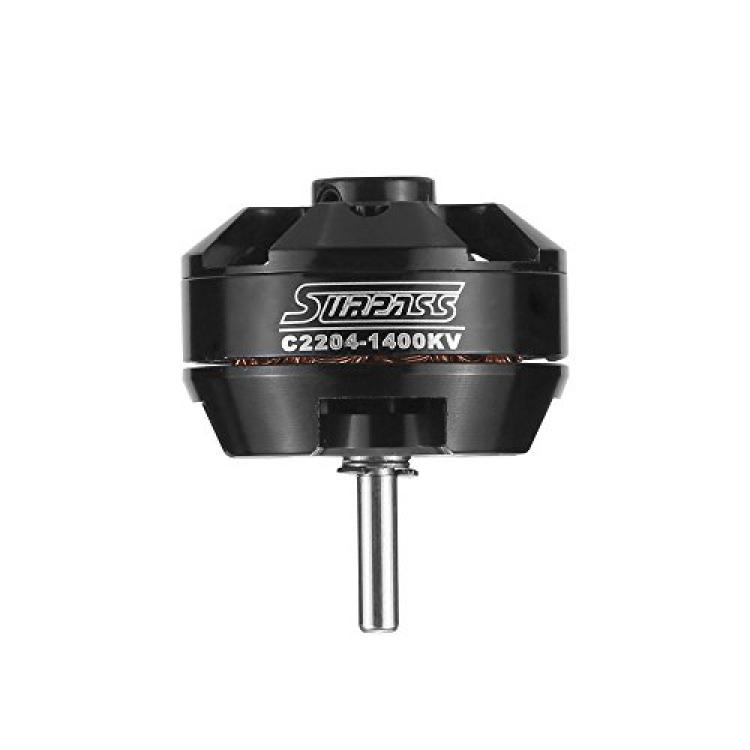

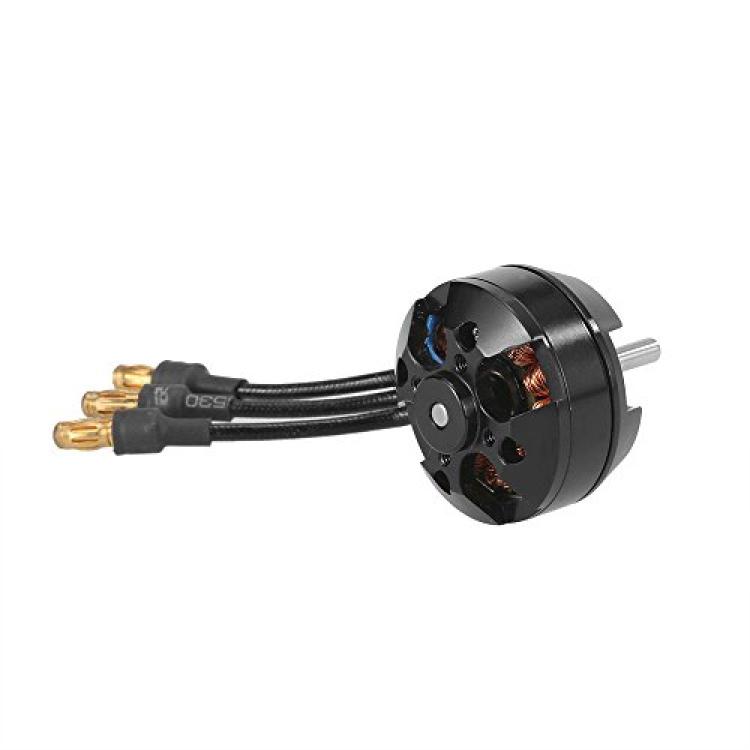

Goolsky SURPASS High Performance 2204 1400KV 14 Poles Brushless Motor for RC Airplane Fixed-wing

The original SURPASS 2204 1400KV brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for RC airplane fixed-wing.

Features:
14 Pole 12 slot hi-torque motor design.
CNC machined 6061 T6 billet aluminum heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator-super thin (0.2mm) laminations.
Precision engineered for maximum energy conversion.

Specifications:
Item No.: C2204-25
KV(RPM/Volt): 1400KV
Watt: 160W
Voltage range: 7-15V
Max amps: 13A
IO: 0.5A
Resistance: 0.307
Motor size: Ø28 * 22mm
Stator size: 2204
Recommended propeller: 7.5 * 3.5 / 8 * 4 / 9 * 5
Connector: 3.5mm golden banana connector
Weight: 28.7g

Package Information:
Package size: 8 * 6.5 * 5cm / 3.2 * 2.6 * 2.0in
Package weight: 59g / 2.1oz

Package List:
1 * SURPASS 2204 1400KV Motor
