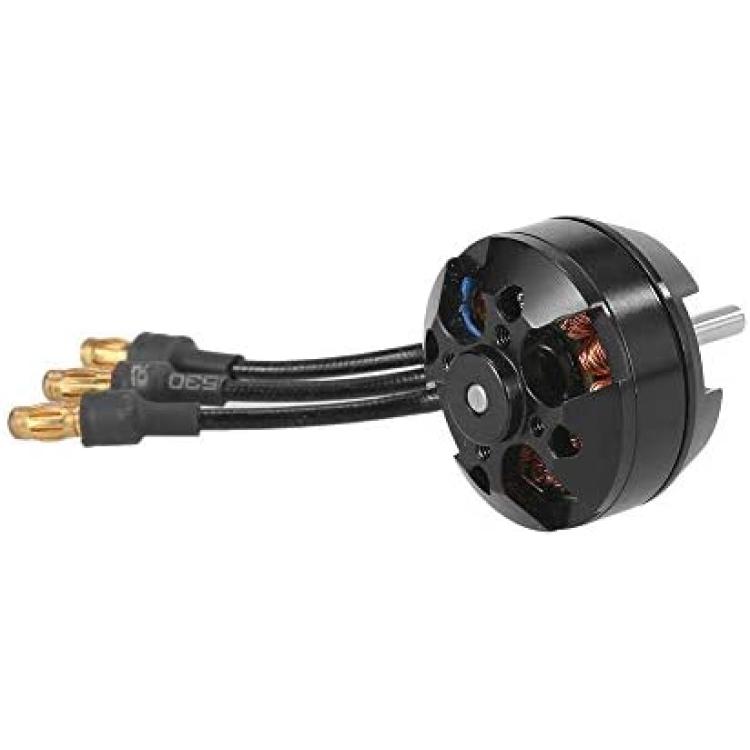

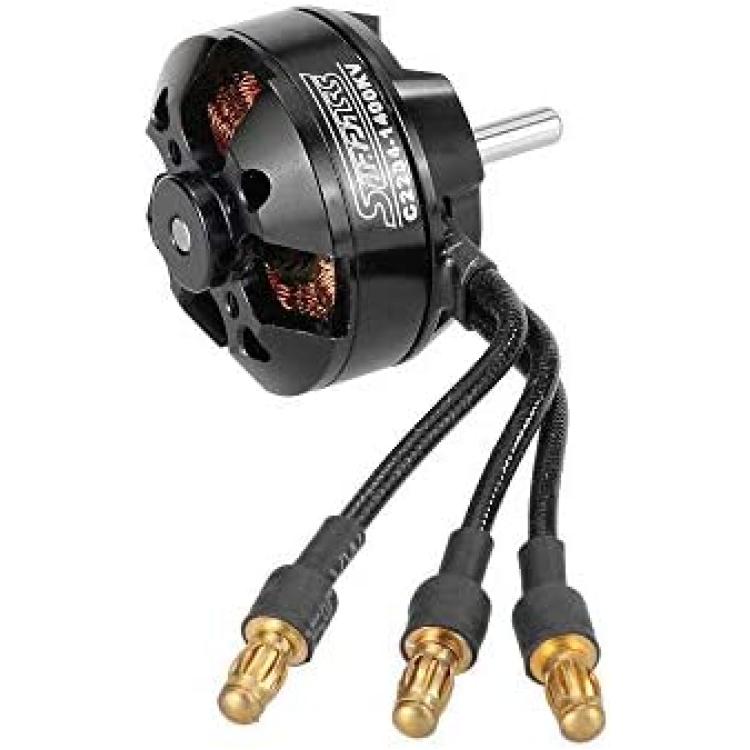

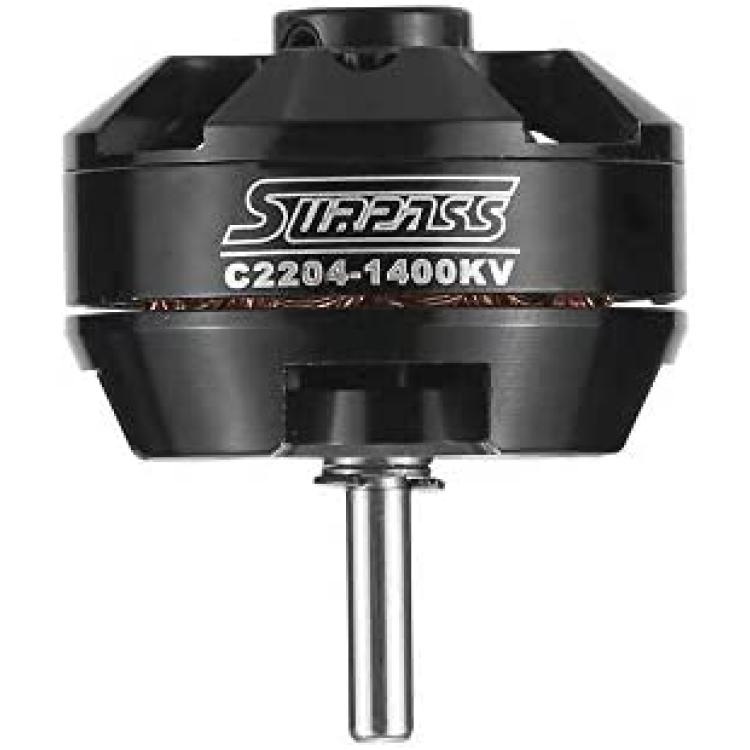

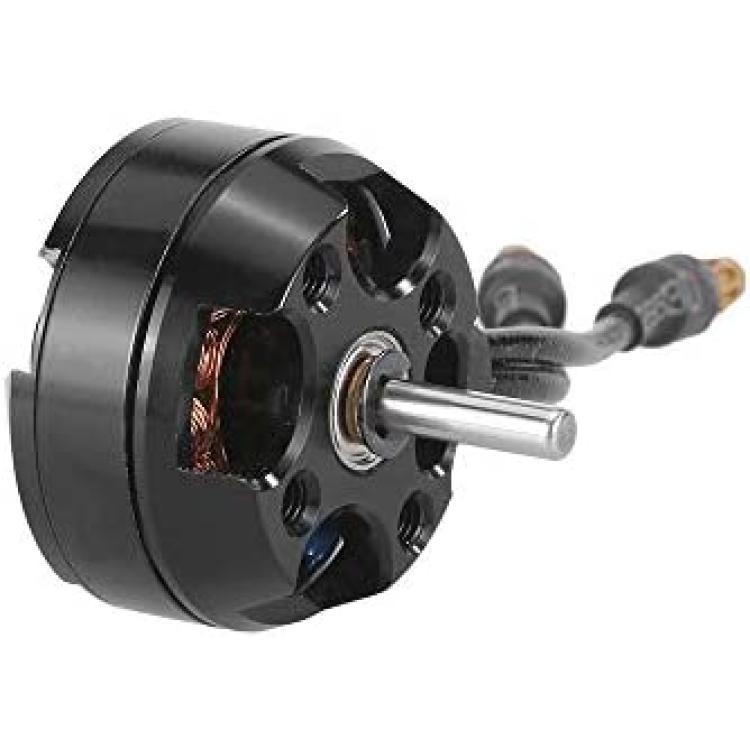

Vehicles-OCS Original Surpass 2204 1400KV Brushless Motor 14 Poles 12 Slot hi-Torque Motor for RC Airplane Fixed-Wing

Features:
14 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Precision engineered for maximum energy conversion
Specifications:
Brand name: SURPASS
Item No.: C2204-25
KV(RPM/Volt): 1400KV
Watt: 160W
Voltage range: 7-15V
Max amps: 13A
IO: 0.5A
Resistance: 0.307
Motor size: 28 * 22mm
Stator size: 2204
Recommended propeller: 7.5 * 3.5 / 8 * 4 / 9 * 5
Connector: 3.5mm golden banana connector
Weight: 28.7g
Package Information:
Package size: 8 * 6.5 * 5cm / 3.2 * 2.6 * 2.0in
Package weight: 59g / 2.1oz
General box package

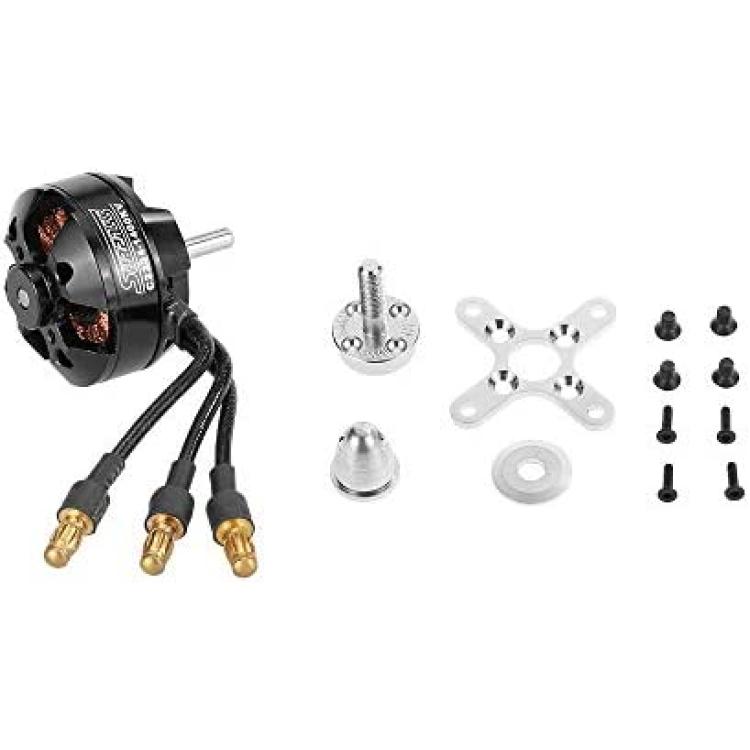

Package List:
1 * SURPASS 2204 1400KV Motor

Item specifics:
Model number: C2204-25
Material: Composite Material
Rc parts & accs: Motors
For vehicle type: Airplanes
Tool supplies: Assembled class
Technical parameters: Value 3
Four-wheel drive attributes: Motors
Remote control peripherals/devices: Motor
Use: Vehicles & Remote Control Toys
Upgrade parts/accessories: Motor
