Goolsky Original SURPASS High Performance 2216 1120KV 14 Poles Brushless Motor for RC Airplane Fixed-wing

Goolsky Original SURPASS High Performance 2216 1120KV 14 Poles Brushless Motor for RC Airplane Fixed-wing

Name: Goolsky Original SURPASS High Performance 2216 1120KV 14 Poles Brushless Motor for RC Airplane Fixed-wing
SKU: MM5003
Availability: InStock

Product Code: MM5003
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*14 Pole 12 slot hi-torque motor design.

*CNC machined 6061 T6 billet aluminum heatsink can.

*High purity copper windings maximizes efficiency, High RPM ABEC5 oversized bearings.

*Precision balanced rotor, smoothness for best reliability and maximum RPM.

*Stator-super thin (0.2mm) laminations;Precision engineered for maximum energy conversion.

Description

Features:
14 Pole 12 slot hi-torque motor design.Â Â Â Â Â Â Â Â Â Â Â Â Â Â
CNC machined 6061 T6 billet aluminum heatsink can. Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
High purity copper windings maximizes efficiency. Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
High RPM ABEC5 oversized bearings. Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Precision balanced rotor, smoothness for best reliability and maximum RPM. Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Stator-super thin (0.2mm) laminations. Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Precision engineered for maximum energy conversion.

Specifications:
Item No.: C2216-08
KV(RPM/Volt): 1120KV
Watt: 380W
Voltage range: 7-15V
Max amps: 26A
IO: 1.2A
Resistance: 0.068
Motor size:Ø28 * 34mm
Stator size: 2216
Recommended propeller: 9 * 6 / 10 * 4 / 11 * 5.5
Connector: 3.5mm golden banana connector
Weight: 65g

Package Information:
Package size: 8 * 6.5 * 5cm / 3.2 * 2.6 * 2.0in
Package weight: 96g / 3.4oz
General box package

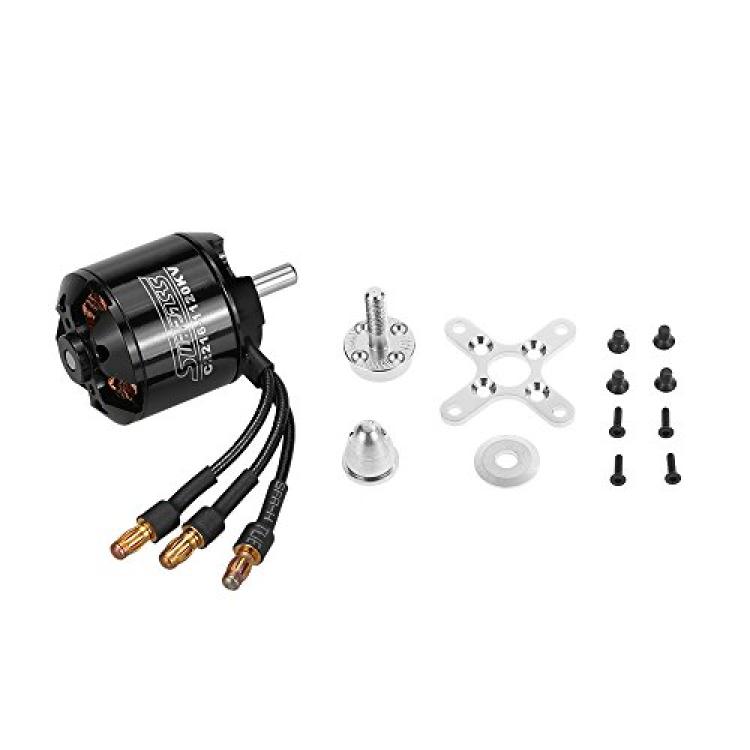

Package List:
1 * 2216 1120KV Motor

Tags: RC Motor, Brushless Motor, Goolsky Motor, 2216 Motor, 1120KV Motor, Fixed-Wing Airplane Motor, High Performance Motor, CNC Aluminum Heatsink, ABEC5 Bearings, RC Airplane, 14 Pole Motor
