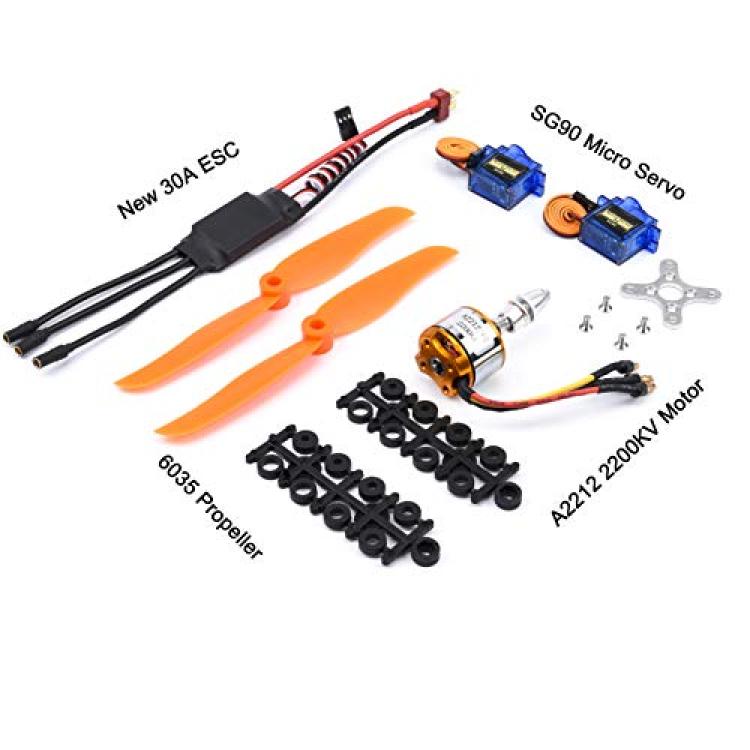

FPVKing RC 2212 2200KV Brushless Motor+SG90 9G Micro Servo+ New 30A ESC Electric Speed Controller+6035 Propeller for RC Fixed Wing Plane Helicopter
Availability: Pre-Order, Inquiry Price
About this product
*【Compatibility】The combo pack used for RC glider quadcopter helicopter aircraft copter multi-copter.
*【Material】Made of high quality metal and plastic, easy to install, performs well.
*【2212 Motor】KV: 2200, Ri(M Ω): 0.033, battery: 2-3Li-Po, max power: 342W, test prop: 7x3/7x4.
*【New 30A ESC】The esc with t plug and 3.5mm banana connectors, more convenient to use; input voltage: 2-3 cells Li-Po battery.
*If you have any questions after receiving the product, please feel free to contact us, we will try our best to solve your problems!
Description

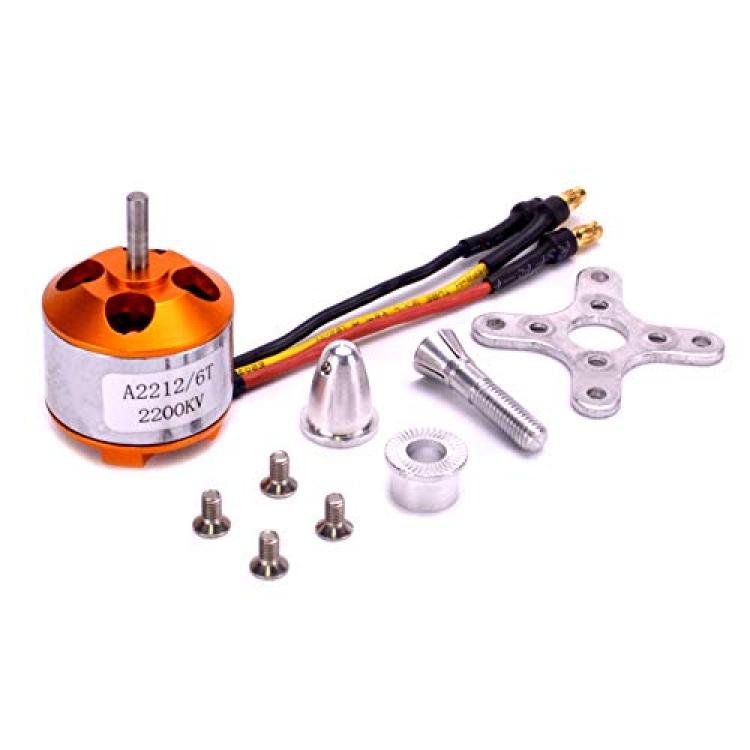

A2212 2200kv Motor:
-KV: 2200
-Ri(M ?): 0.033
-Battery: 2-3Li-Po
-Max Power: 342W
-Test Prop: 7x3/7x4
-Motor Size: 27.5x38mm/1.08''x1.5''
-Shaft Diameter: 3.17mm/0.12''

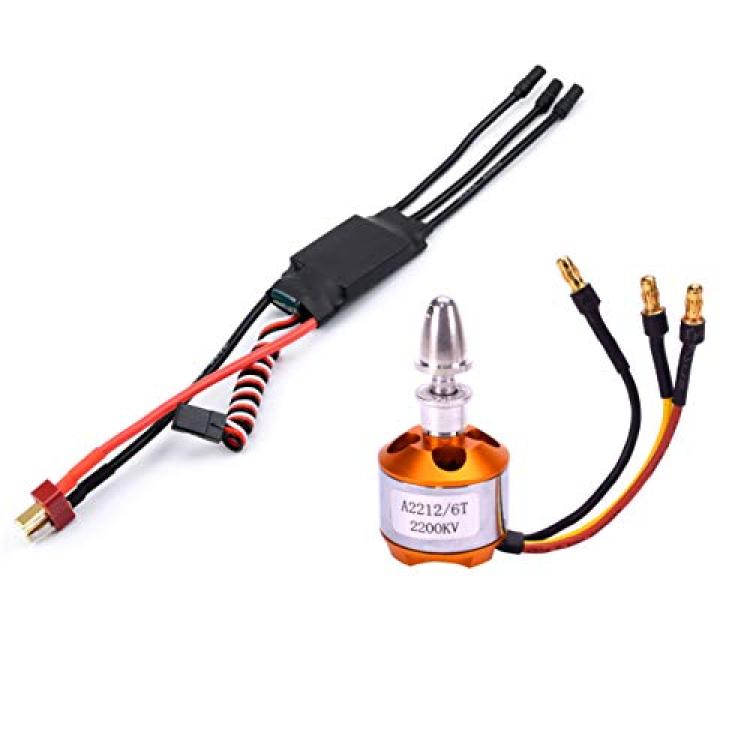

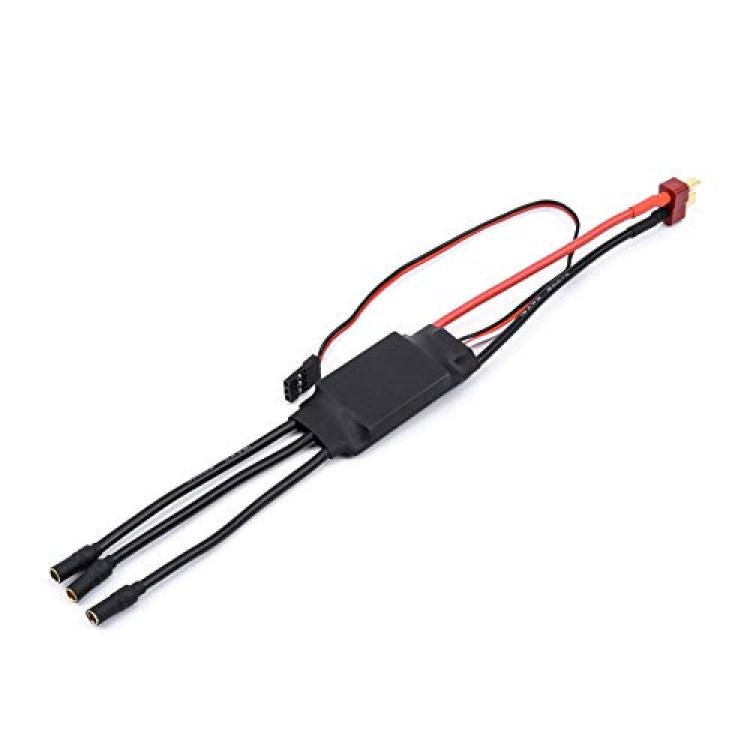

30A Brushless ESC:
-Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
-Output: Continuous 30A, Burst 40A up to 10 Secs.
-Input Voltage: 2-4cells lithium battery or 5-9 cells NiCd/NIMh battery.
-BEC: 2A / 5V (Linear mode).

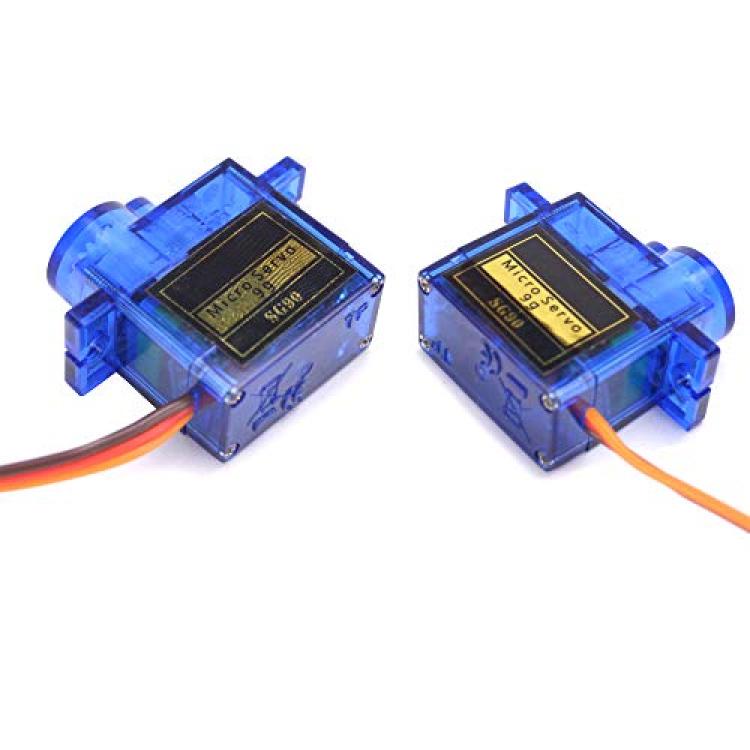

SG90 9G Micro Servo:
-Translucent body, lightweight, less noise
-Weight: 9 grams
-No load speed: 0.12 sec / 60 deg (4.8 V)
-Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
-Operating temperature: -30+60 degrees Celsius
-Dead zone setting: 5 microseconds
-Working voltage: 4.8V-6V
Please Note:
When use this ESC and motor replacement at first time or you are not skillful or professional to play RC Plane Quadcopter Helicopter,
please follow these steps to set your throttle stroke calibration. Otherwise incorrect operating will cause ESC hot, smoke or burn.
How to set Throttle stroke calibration?
1. Connect the ESC with motor, another end connect with receiver.
2. Turn on the remote controller and push the throttle to the highest point.
3. Plug the ESC into batteries.
4. There has double click sound (the highest point of the throttle confirm).
5. After get the click sound take the throttle stick to the lowest point.
6. Confirm the three click sound that means OK.
Note: These three lines of the brushless ESC can be connected at will. If the steering is incorrect, you can adjust any two of them.

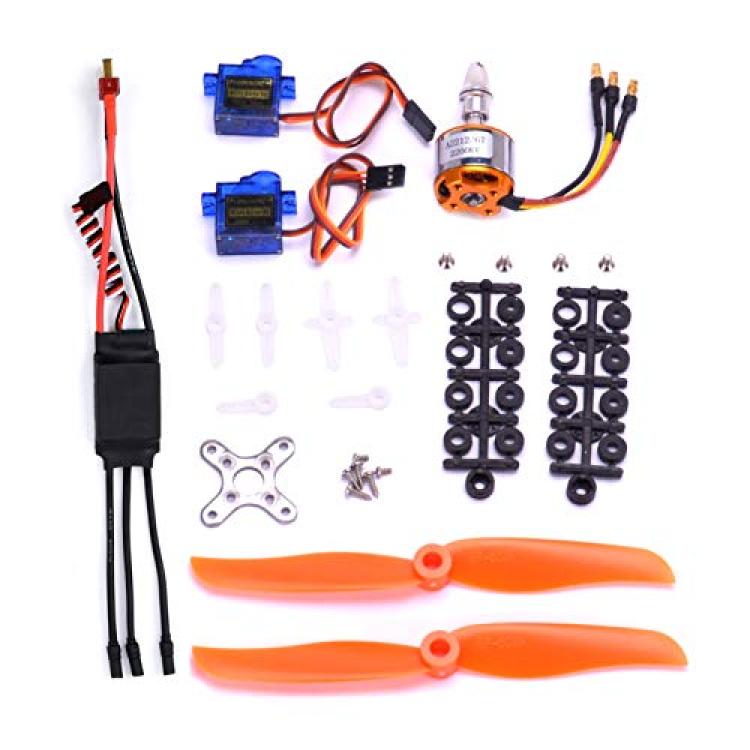

Package included:
1 x 2200kv brushless motor
1 x 30A ESC
1 x Macroporous pulp(fit for Bullet)
1 x Holes pulp(fit for Pulp protection)
2 x SG90
