Mini Electric Motor 775 DC Motor 12V/24V With B10 Drill Chuck And Seat Mounting Bracket Mini Table Saw for Cutting/Polishing

Mini Electric Motor 775 DC Motor 12V/24V With B10 Drill Chuck And Seat Mounting Bracket Mini Table Saw for Cutting/Polishing

Name: Mini Electric Motor 775 DC Motor 12V/24V With B10 Drill Chuck And Seat Mounting Bracket Mini Table Saw for Cutting/Polishing
Brand: ‎CHANCS MOTOR
SKU: MM460
Availability: InStock

Brand: ‎CHANCS MOTOR
Product Code: MM460
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

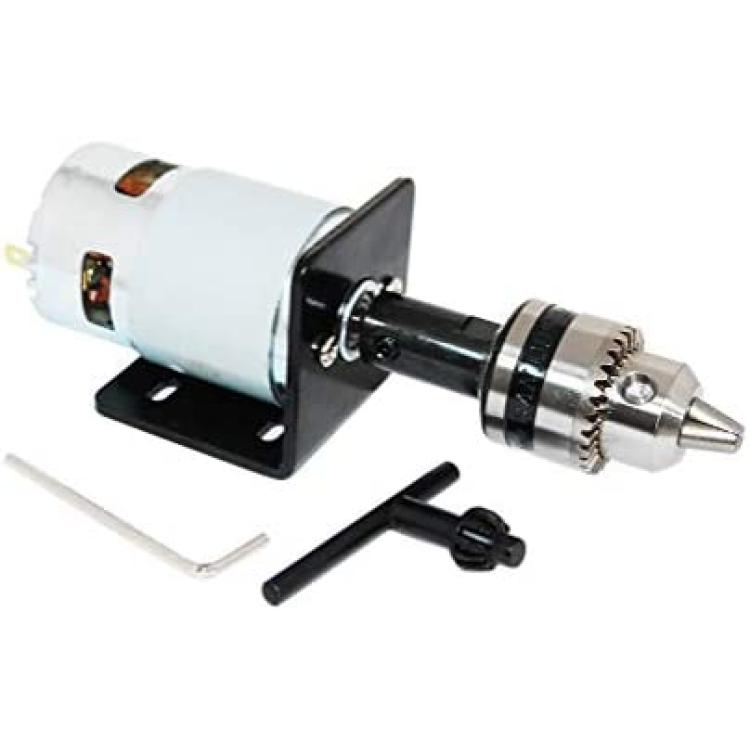

*1.This is a DIY combination of motor, bracket and B10 drill chuck，can be used with a saw blade to become a mini saw.

*2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.

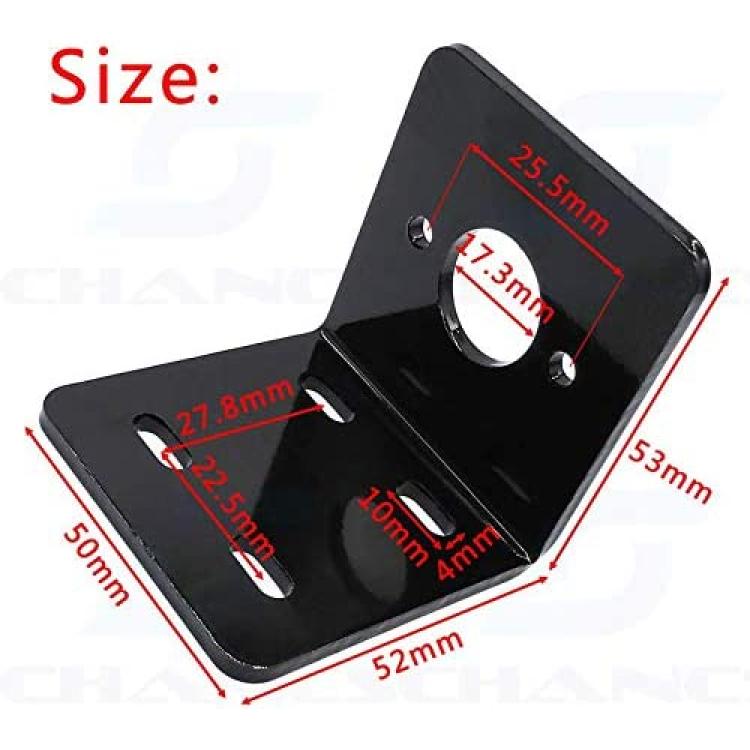

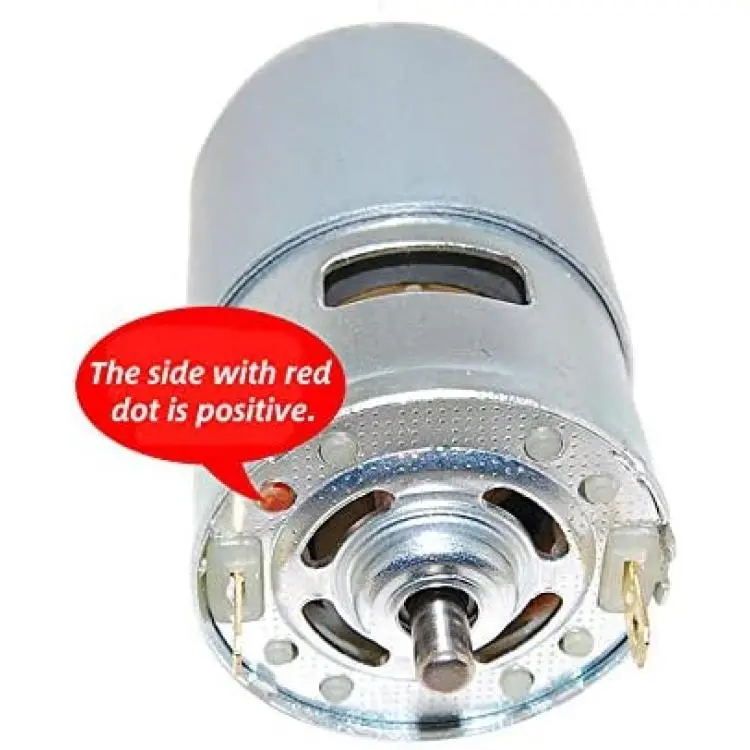

*3.The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm. The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.

*4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw.

*5.Package: 1PCS x DC Motor, 1PCS x Bracket, 1PCS x B10 Drill Chuck, 2PCS x Screws, 2PCS x Matching Hardware Tools.

Description

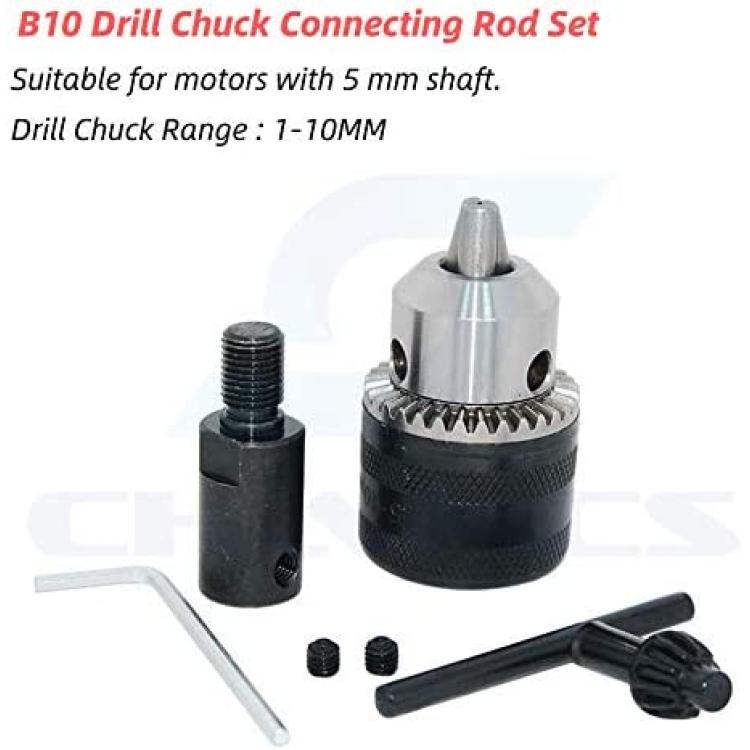

Voltage: 12-24V DCSpeed: 10000-20000RPMStarting current: 4-5APower: 100W-200WMotor Body Diameter: 42mmMotor Body Length: 66.5mmShaft Length: 16mmShaft Diameter: 5mmModel : B10?Mount: 3/8"-24UNFMaterial:Main Material Metal?Drill Chuck Range : 1.5-10mm?Length of Connecting Rod:18mm;Length of Drill Chuck:60mm;Suitable for motors with 5mm shaft?Length: 50mm?Width: 52mm?Height: 53mm?Mounting hole diameter: 4mm?Thickness of bracket: 3mm?

Tags: mini electric motor, 775 dc motor, b10 drill chuck, mini table saw, cutting tool, polishing tool, 12v motor, 24v motor, DIY motor kit, small motor, handheld tool
