CHANCS Electric Motor 775 DC Motor 12V 10000RPM 24V 20000RPM With Seat Mounting Bracket Brush Small DC Motor

CHANCS Electric Motor 775 DC Motor 12V 10000RPM 24V 20000RPM With Seat Mounting Bracket Brush Small DC Motor

Name: CHANCS Electric Motor 775 DC Motor 12V 10000RPM 24V 20000RPM With Seat Mounting Bracket Brush Small DC Motor
Brand: ‎CHANCS MOTOR
SKU: MM30
Availability: InStock

Brand: ‎CHANCS MOTOR
Product Code: MM30
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

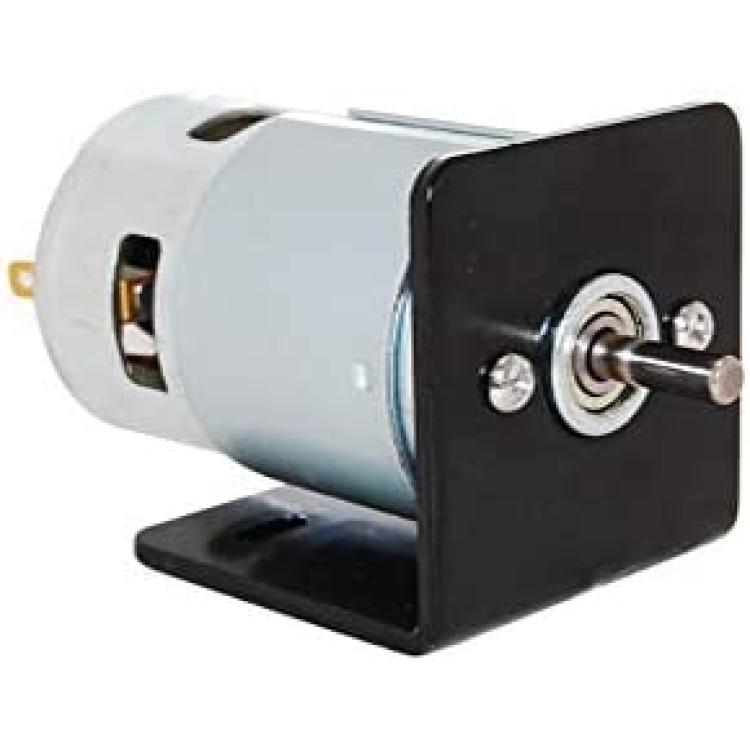

*1.This is a 775 DC motor with bracket, the mounting brackets are designed to be used as an additional support for your motors or as an alternative mounting option.

*2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.

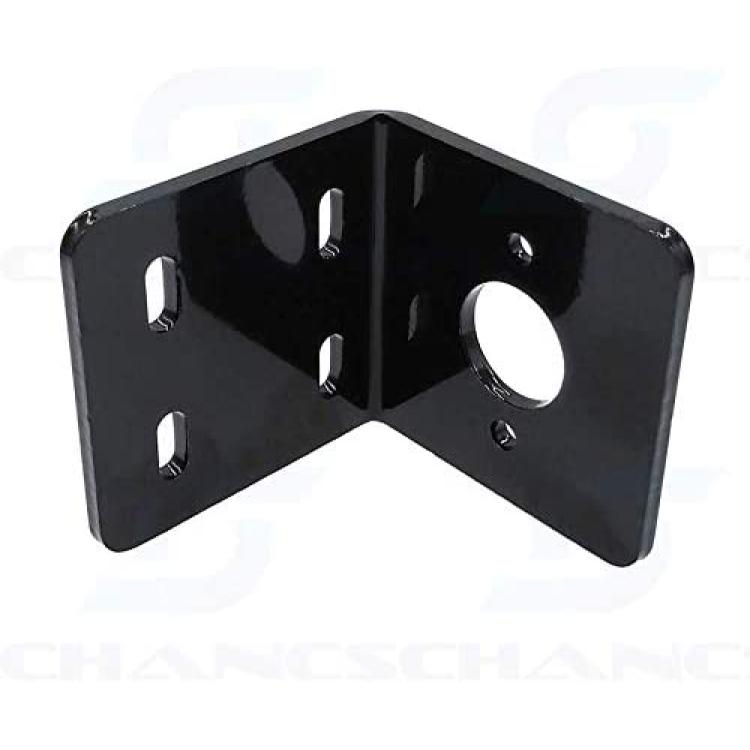

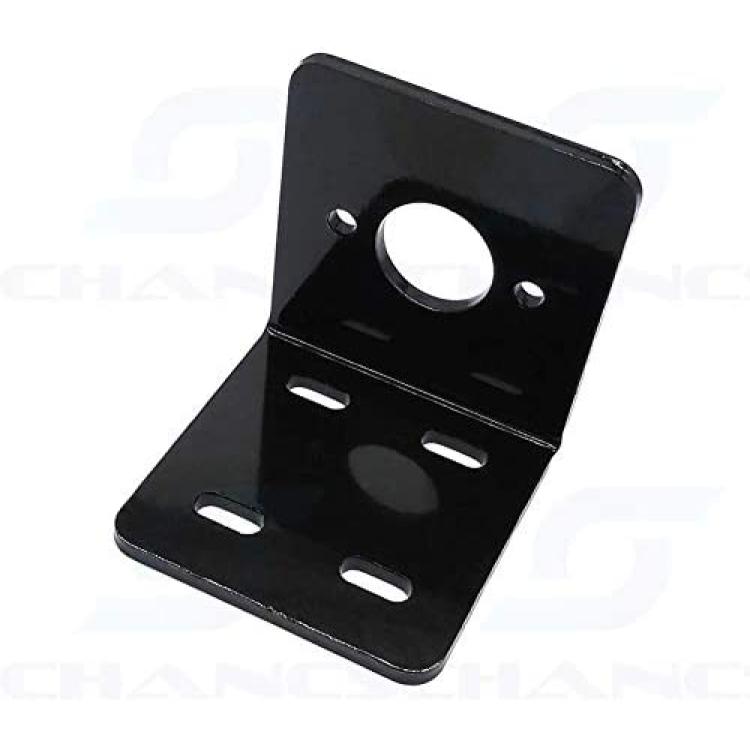

*3.The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm. The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.

*4.Application:Suitable for mini cutting machine, sanding machine, lathe tool, milling machine, bench drill, electric hand drill, polishing machine, electric grinder, engraving machine, etc.

*5.Package: 1PCS x DC Motor, 1PCS x Bracket

Description

4000-8000RPM6000-12000RPM8000-16000RPM10000-20000RPMVoltage: 12-24V DCStarting current: 4-5APower: 100W-200WMotor Body Diameter: 42mmMotor Body Length: 66.5mmShaft Length: 16mmShaft Diameter: 5mmLength: 50mm?Width: 52mm?Height: 53mm?Mounting hole diameter: 4mm?Thickness of bracket: 3mm?

Tags: DC Motor 775, 12V DC Motor, 24V DC Motor, 775 Brushless Motor, Small DC Motor, Motor with Bracket, 775 Motor, Mini DC Motor, 10000RPM Motor, 20000RPM Motor, Hobby Motor
