Micro 775 Series 12V/24V DC Motor With Saw Blade Connecting Rod With Seat Mounting Holder Stands Bracket Cutting Machine

Micro 775 Series 12V/24V DC Motor With Saw Blade Connecting Rod With Seat Mounting Holder Stands Bracket Cutting Machine

Name: Micro 775 Series 12V/24V DC Motor With Saw Blade Connecting Rod With Seat Mounting Holder Stands Bracket Cutting Machine
Brand: ‎CHANCS MOTOR
SKU: MM2076
Availability: InStock

Brand: ‎CHANCS MOTOR
Product Code: MM2076
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

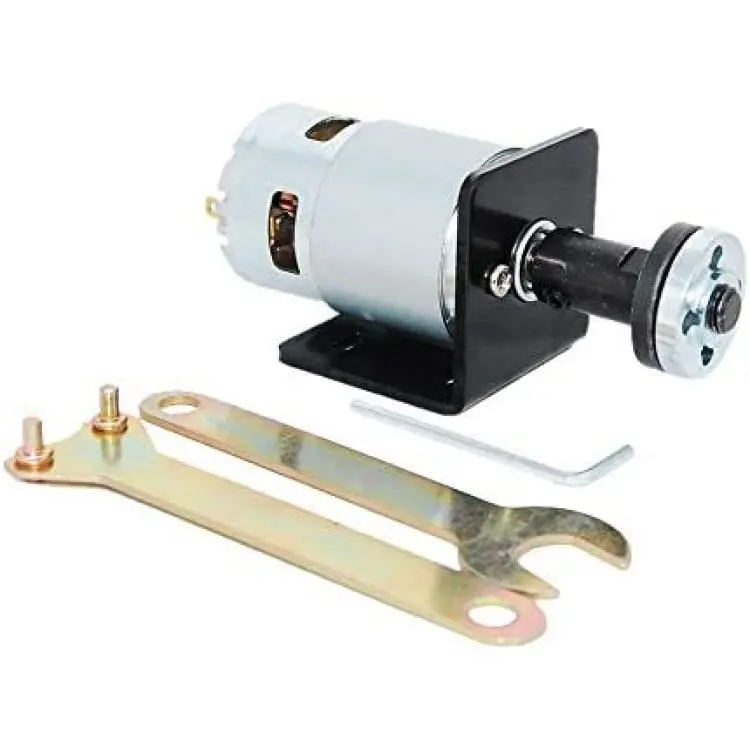

*1.This is a DIY combination of motor bracket and saw blade connecting rod，can be used with a saw blade to become a mini saw.

*2.The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life.

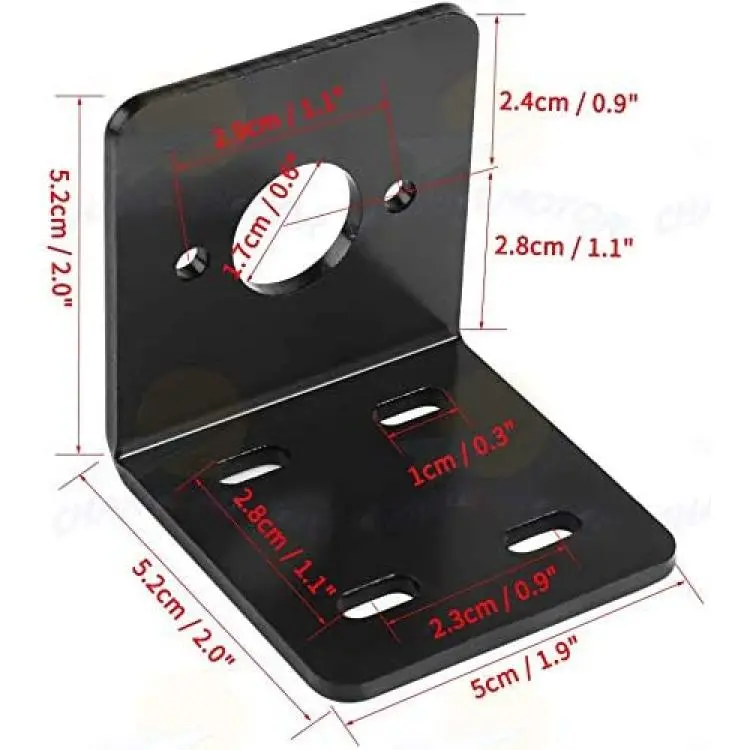

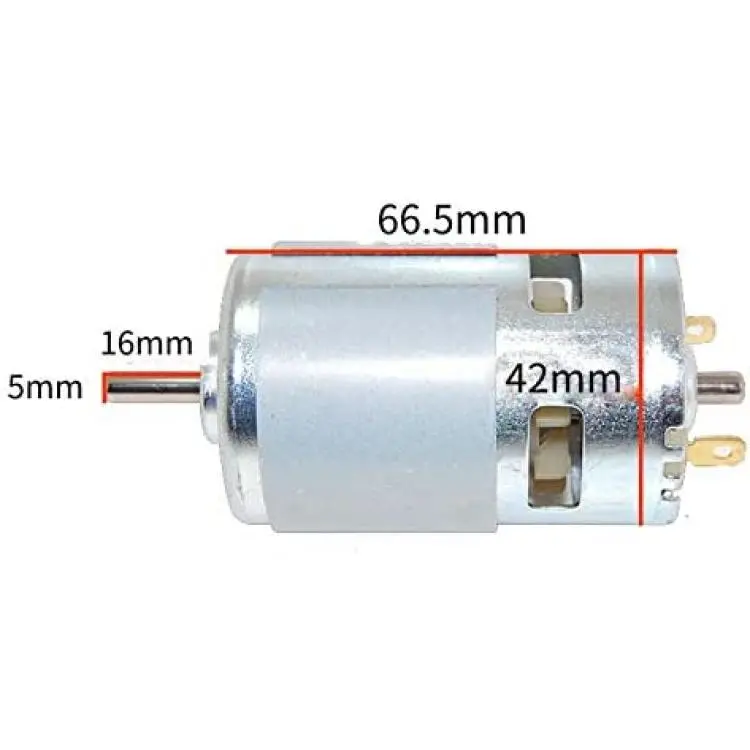

*3.The specification of motor:Rated Voltage: DC 12V, Unloaded Speed: 10000RPM, Load Speed: 8800RPM. Rated Voltage: DC 24V, Unloaded Speed: 20000RPM, Load Speed: 17600RPM. Starting current: 4-5A Motor Body Diameter: 42mm, Motor Body Length: 66.5mm, Shaft Length: 16mm, Shaft Diameter: 5mm. The specification of bracket: Length: 50mm,Width: 52mm,Height: 53mm, Mounting hole diameter: 4mm, Thickness of bracket: 3mm.

*4.Application:Hand tools,garden tools, power tools,shredder, sprayer, small cutting machine, small table saw.

*5.The device is suitable for saw blades with 16 mm mounting holes (inside diameter).

Description

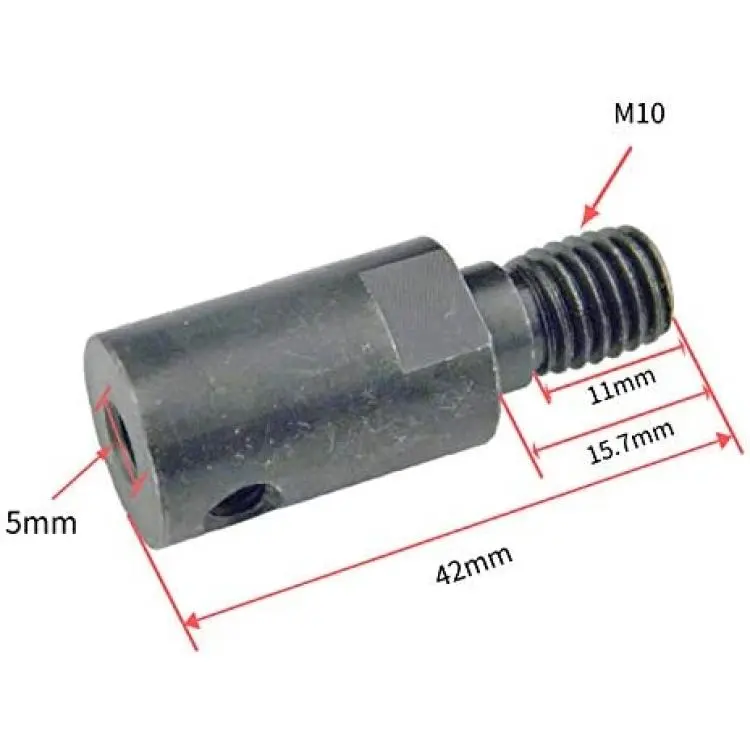

Voltage: 12-24V DCSpeed: 10000-20000RPMStarting current: 4-5APower: 100W-200WMotor Body Diameter: 42mmMotor Body Length: 66.5mmShaft Length: 16mmShaft Diameter: 5mmModel : M10?Name: M10 Saw Blade Connecting Rod Set;Bottom Hole Diameter: 5mm;Length:42mm;Length: 50mm?Width: 52mm?Height: 53mm?Mounting hole diameter: 4mm?Thickness of bracket: 3mm?

Tags: DC Motor, Mini Saw, Saw Blade Connecting Rod, Cutting Machine, 12V Motor, 24V Motor, Ball Bearing Motor, DIY Saw, Garden Tools, Power Tools, M10 Motor
