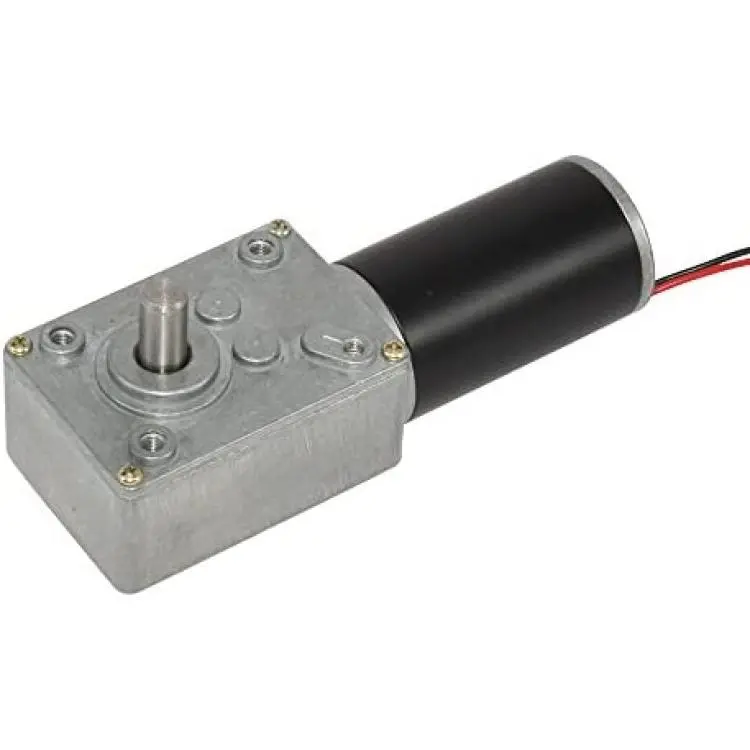

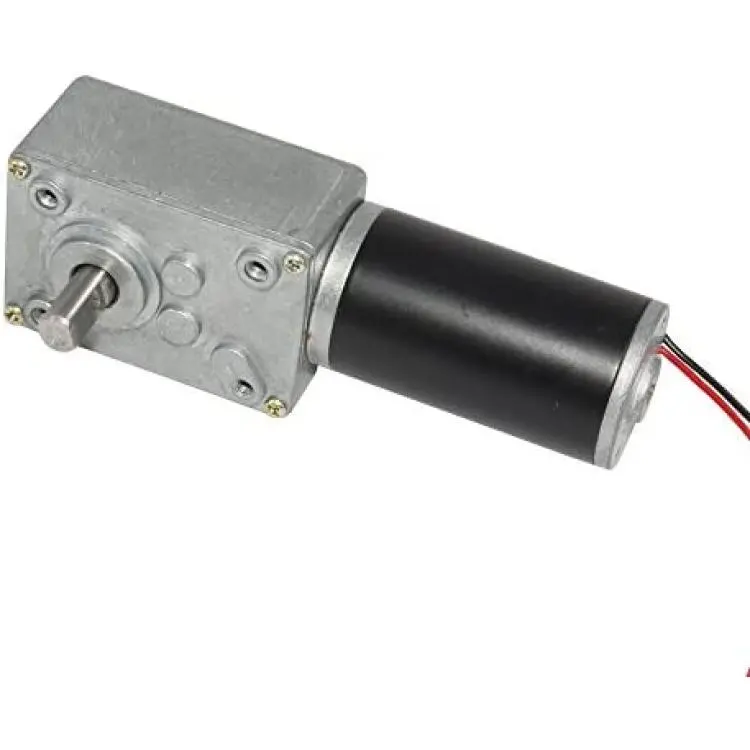

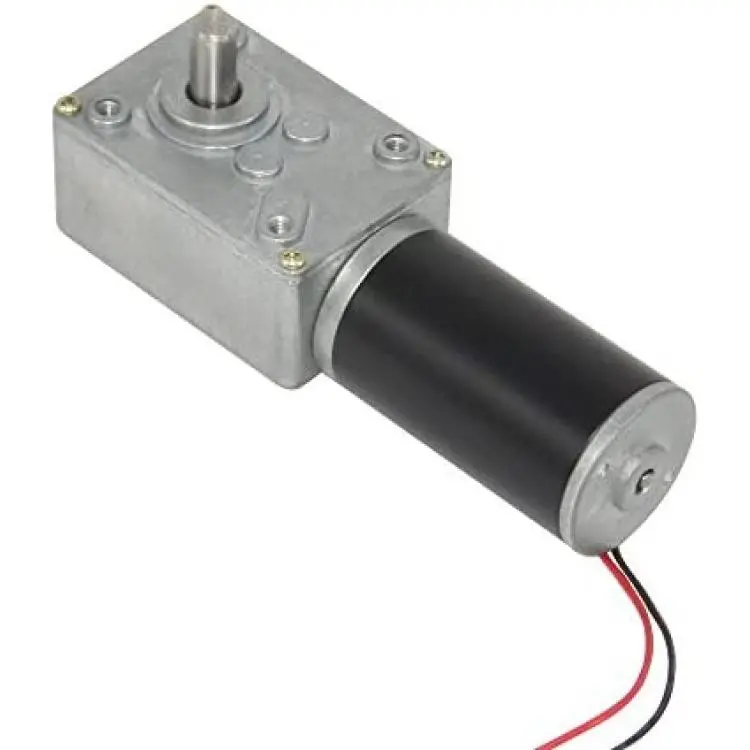

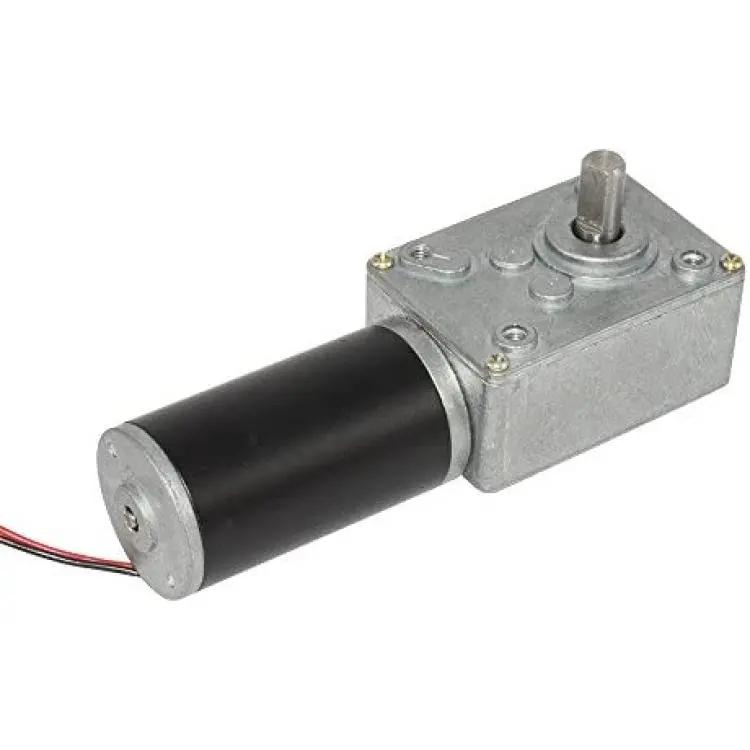

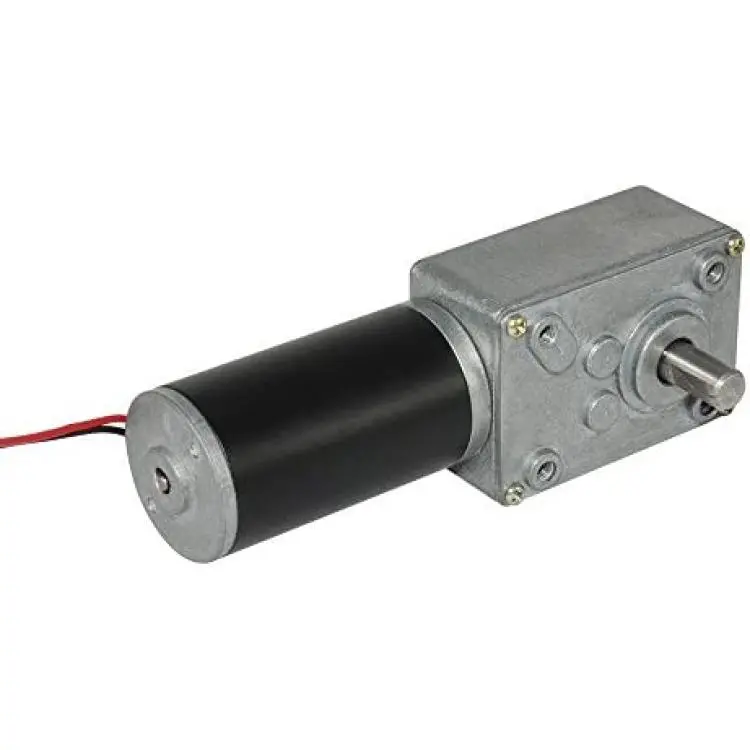

TSINY Small High Torque 24 Volt Reversible 120RPM DC Worm Gear Motor for BBQ Drive Replacement
About this product
*✔Rated voltage: DC24V; No-load speed: 120RPM; Rated torque:5kg.cm; Reduction ratio:1/49;
*✔Direction of rotation: CW/CCW; Protection class: IP54; Low noise: db
*✔DC Motor Body Dimensions: 31 x 57mm/ 1.22" x 2.24"(D*L); Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.58"x1.37"(L*W*H)
*✔Output Shaft Dimensions: 8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off; Wire Length : 19mm/7.4"; is_customized: Yes;
*✔Package: 1PCS x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.
Description
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.It's also have addition two characteristics:
(1)With self-locking, the output shaft can't rotation when switch off, that is self-locking.
(2) Gearbox output shaft and motor shaft are come to be a rectangle, it's widely used in various of occasions that require special install size. such as windows and doors opening
and household electrical appliances, Car model, Boat model, Robot model, DIY engine, Industry application, house application, home automation ,mini winch and other occasions.
